PIN2DMD EVO HD - upgrade to 256x64 resolution

[lucky1]

4 hours ago, dom69 said:



Maybe a problem with the SD card ?

[dom69]

14 hours ago, lucky1 said:

Maybe a problem with the SD card ?

apparently not, I replaced the SD, the shield and the DevEbox. on 3 different ones it does the same thing.

[dom69]

7 minutes ago, dom69 said:

apparently not, I replaced the SD, the shield and the DevEbox. on 3 different ones it does the same thing.



[lucky1]

I just tested a DevEBox HD in my TAFG and colorization was active on first start which means

I can´t reproduce the problem. Did you try setting the display to default ?

Edited April 22, 2024 by lucky1

[dom69]

16 minutes ago, lucky1 said:

Does is show the same problem if no pinball signal is attached ?

I just tested a DevEBox HD in my TAFG and colorization was active on first start which means

I can´t reproduce the problem. Did you try setting the display to default ?

yes set by default it's the same. without the pinball signal, it would do the same.





[lucky1]

This is also different on my board.Maybe a difference on the DevEBox card ?

I sent you a e-mail

[dom69]

Ok thanks

[lucky1]

On 4/22/2024 at 8:20 AM, dom69 said:

apparently not, I replaced the SD, the shield and the DevEbox. on 3 different ones it does the same thing.



Just for the records. I received a DevEBox with SD card from @dom69 and the problem is caused by the SD card. I tested with my own SD card and it worked instantly. It is a SanDisk Ultra with 8GB

Edited April 30, 2024 by lucky1

[lucky1]

updated version which improves SD card compatibility on DevEBox hardware on github

[Dams51]

Hi @lucky1 , I have a question about the power supply.

I have made the PCB for the DevEBox but it's not finish , I wait for some parts.



Do you think It's not a problem to connect at the J116 with a Pin2DMD HD ?

Or it's better to add a power supply 5V.



Thanks in advance

Edited May 23, 2024 by Dams51

[lucky1]

23 hours ago, Dams51 said:

Hi @lucky1 , I have a question about the power supply.

I have made the PCB for the DevEBox but it's not finish , I wait for some parts.



Do you think It's not a problem to connect at the J116 with a Pin2DMD HD ?

Or it's better to add a power supply 5V.



Thanks in advance



I have mine running on J116 in my AFM without a problem, but it depends on the machine type and how loaded the circuits are.

[Dams51]

On 5/24/2024 at 7:40 PM, lucky1 said:



I have mine running on J116 in my AFM without a problem, but it depends on the machine type and how loaded the circuits are.



Thanks for the answer.

It's for a STTNG so I think it's will be ok too.

[malibu]

deleted

Edited June 24, 2024 by malibu
answered my own question

[malibu]

Hi,





been away for a few weeks and come back to some issues with my evo HD.

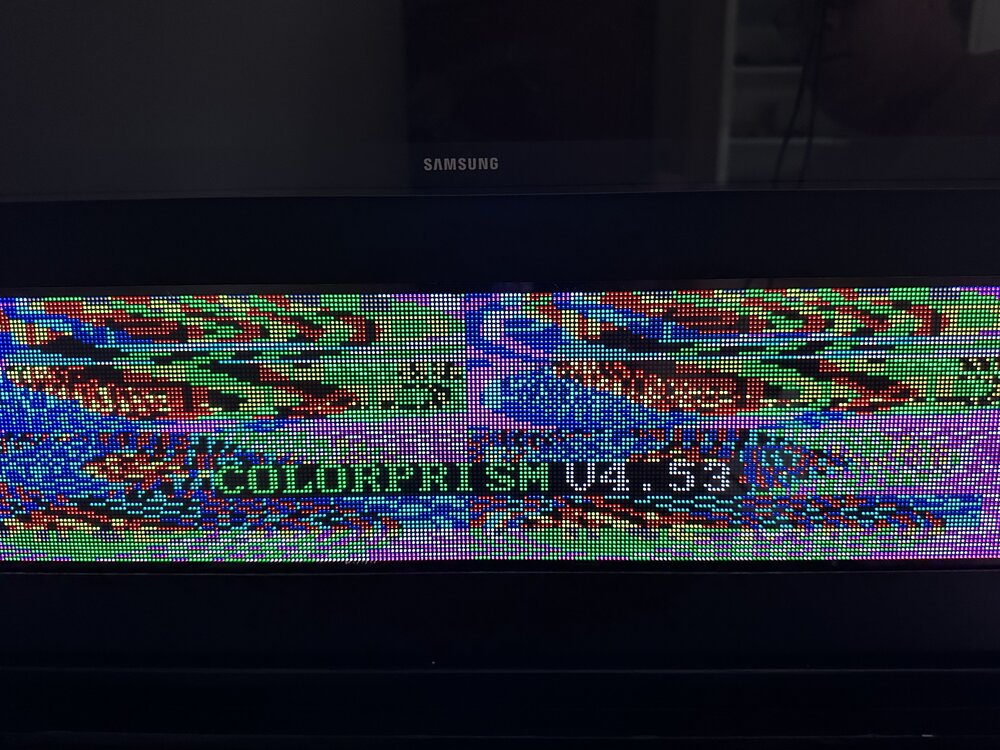

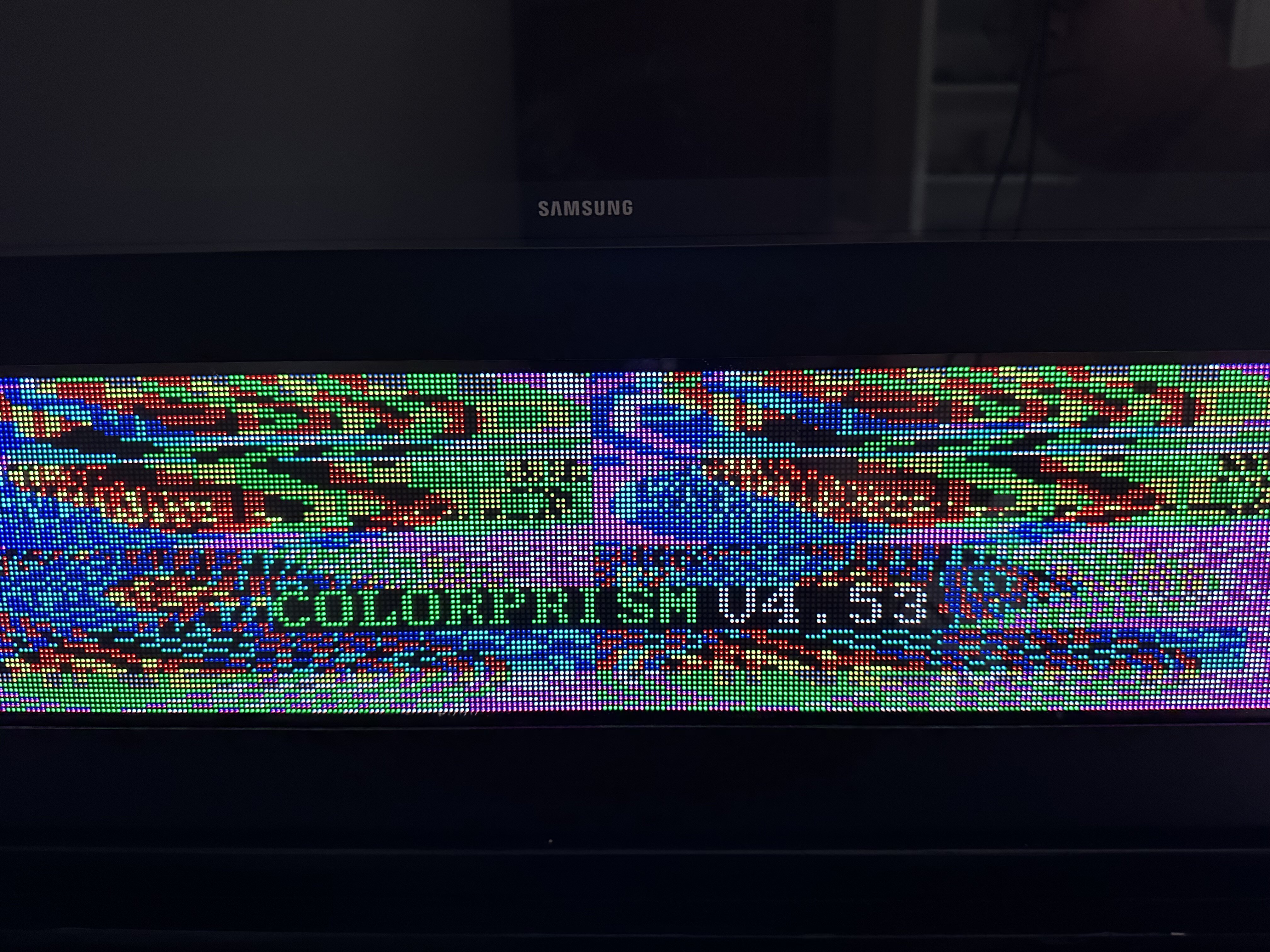

it’s working fine using the built in menus to test the panel.  However I was getting no response when connected to pc. I grabbed my old pin2dmd software and ran the test DMD batch file but get no response. I the tried a DMD reset and get an odd image - see attached.


restarting the device clears the screen back to the standard

Edited August 4, 2024 by malibu

[S69]

On 6/18/2021 at 8:55 AM, lucky1 said:

Time to present my latest development, I have been working on the last couple of months. Searching for components on aliexpress I stumbled over some new flexible panels with 128x64 resolution and P1.875 dotpitch (https://de.aliexpress.com/item/1005001803946216.html), which brought me to the idea to double the output resolution of 128x32 pinball displays to 256x64 dots using two of those panels.  There are a several different versions of those panels available using different chipsets. Make sure you get a NON-EPWM chipset like MBI5124 on the panels from above. The pcb designs, firmware and WPC95 frame design can currently be found in the beta branch on github https://github.com/lucky01/PIN2DMD/. Shared PCBWay project is here



There are currently two pcb designs tested by me . On is based on through-hole parts with a DevEBox STM32H743VIT board as described here is here https://pin2dmd.com/hardware/#2.2



and the other is based on a custom made pcb populated with SMD parts which can be ordered fully assembled here

https://www.pcbway.com/project/shareproject/PIN2DMD_EVO256x64_RGB_LED_Dotmatrix_Pinball_Display_Controller.html



Here are some pictures of my EVO board design.







The good thing is that thanks to 1.8mm dotpitch the display area has a size of 480x120mm and therefore still fits into standard pinball machines using a modified speakpanel with smaller speakers. I designed one for my WPC95 machines

combining laser-cut black and transparent acrylic in different thickness. Here are some pictures of that speakerpanel





Flexible panels are normally attached to the surface using magnets . To mount them to the EVO board I had the idea to

use DIN921 M4x6 large head screws to which the magnets stick.





The pin2dmd firmware has integrated 2 scaling algorithms which you can choose in the onscreen menu to display the content made for 128x32 on the 256x64. That already looks quite impressive but Steve and I also modified the editor to allow to replace complete pictures or parts of a picture with high resolution content. The new version of the editor is in the beta folder on google drive. I hope that some talented artists take that opportunity to upgrade the experience of our beloved pinball machines.





Rene368 made a Nucleo STM32H743 based design which he shared here https://vpuniverse.com/forums/topic/5348-pin2dmd-evo-hd-upgrade-to-256x64-resolution/page/9/#comment-61108



[S69]

Hi guys,

im having some trouble to assembly the wpc95 acrylic speaker panel. Anybody has pics of how to make it?
Best regards and thanks in advance.

[lucky1]

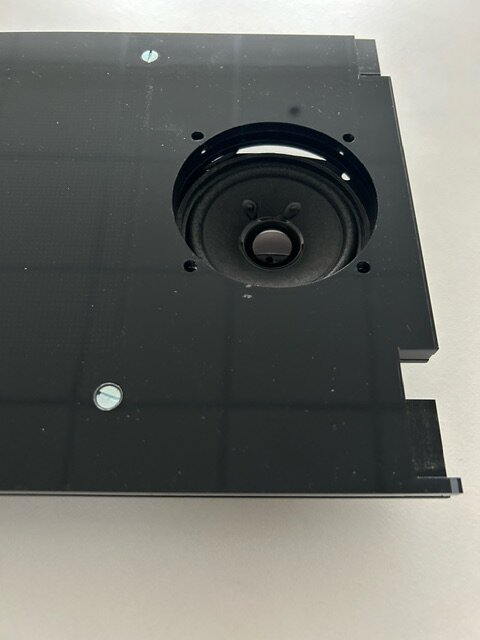

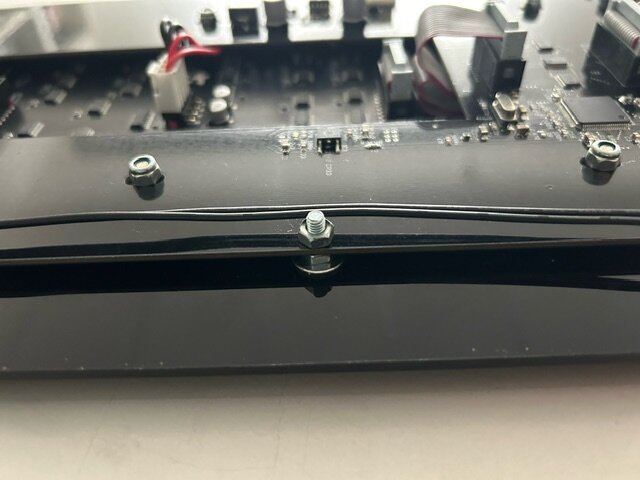

You use countersunk head screws to mount the pin2dmd HD to the panel. Therefore you need to modify the drills on the transparent panel using a a countersink. After that you screw all panels with mounting holes for the pin2dmd HD together and then fix the front panel to the rest using the speaker screws. Thats all.

Edited October 24, 2024 by lucky1

[S69]

Now I GOT it. Thank you very much.

[S69]

Hi everybody,

as Capcom Flipper Football real pin uses the 256x64 DMD, will pin2dmd 256x64 work plug and play on it?

Pinside guys have the same question: https://pinside.com/pinball/forum/topic/replacement-flipper-football-dmd#post-8531583

[lucky1]

22 hours ago, S69 said:

Hi everybody,

as Capcom Flipper Football real pin uses the 256x64 DMD, will pin2dmd 256x64 work plug and play on it?

Pinside guys have the same question: https://pinside.com/pinball/forum/topic/replacement-flipper-football-dmd#post-8531583



It will work but PIN2DMD HD is larger.

[S69]

27 minutes ago, lucky1 said:



It will work but PIN2DMD HD is larger.

Hi lucky1,

thanks for answering.

But could you be more specific? If its larger, it will not fit the original capcom DMD place? Or just need to drill some extra holes on the PIN2DMD board?

Thanks again

[lucky1]

Just check the dimensions of your DMD against the dimensions of a PIN2DMD HD.

The display area of a pin2dmd HD is 120x480mm

Edited April 27, 2025 by lucky1

[S69]

On 4/27/2025 at 5:04 AM, lucky1 said:

Just check the dimensions of your DMD against the dimensions of a PIN2DMD HD.

The display area of a pin2dmd HD is 120x480mm

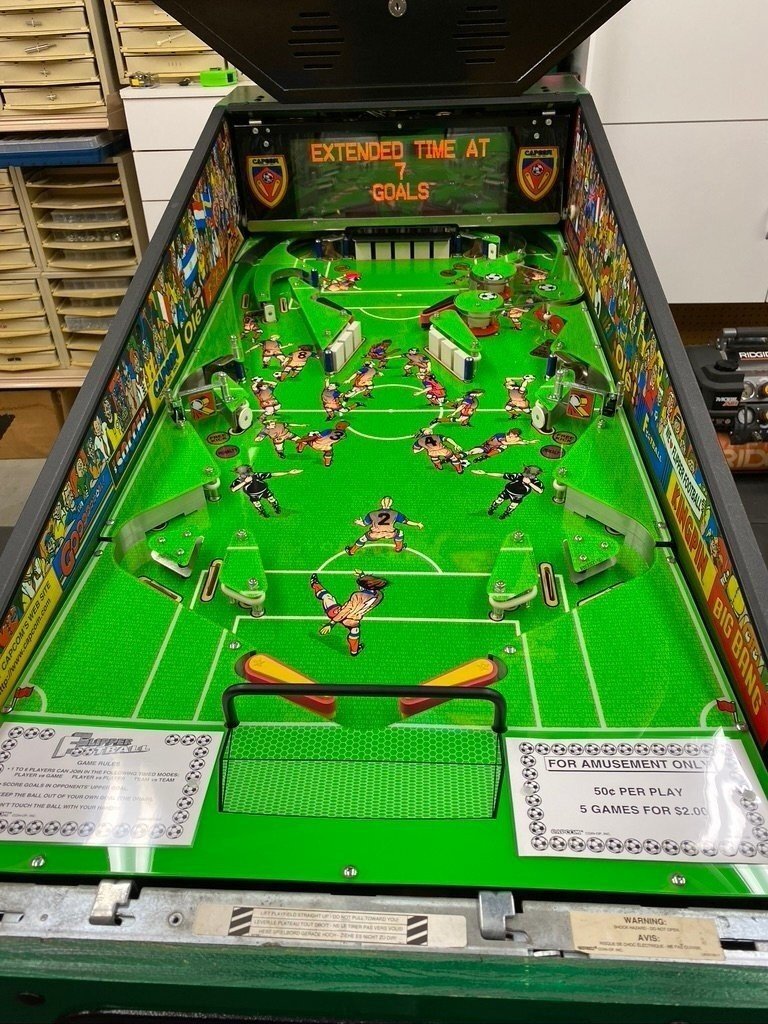

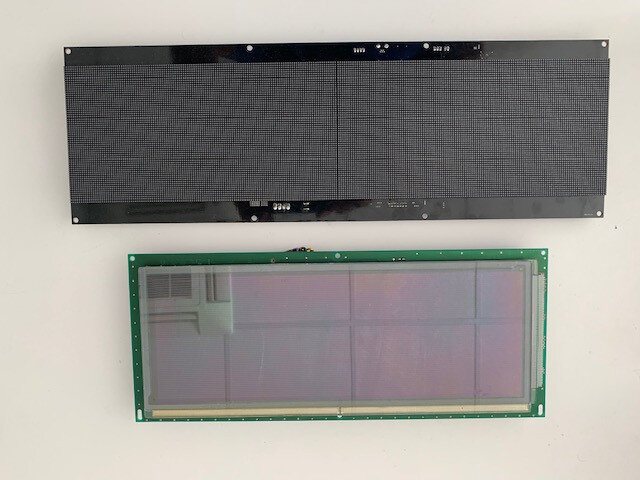

Hi Lucky1, i dont have a Capcom Flipper Football machine, im trying to help a friend thats looking for a display for his machine. But looking at this picture, it will not fit, right?

[S69]

On 4/27/2025 at 5:04 AM, lucky1 said:

Just check the dimensions of your DMD against the dimensions of a PIN2DMD HD.

The display area of a pin2dmd HD is 120x480mm

Hi Lucky1, i dont have a Capcom Flipper Football machine, im trying to help a friend thats looking for a display for his machine.

[S69]

But, if pin2dmd HD works on it, maybe just changing the acrylic front panel would be needed...
