Content Provider lucky1 Posted April 30, 2025 Author Content Provider Posted April 30, 2025 On 4/28/2025 at 4:26 PM, S69 said: Hi Lucky1, i dont have a Capcom Flipper Football machine Me neither !

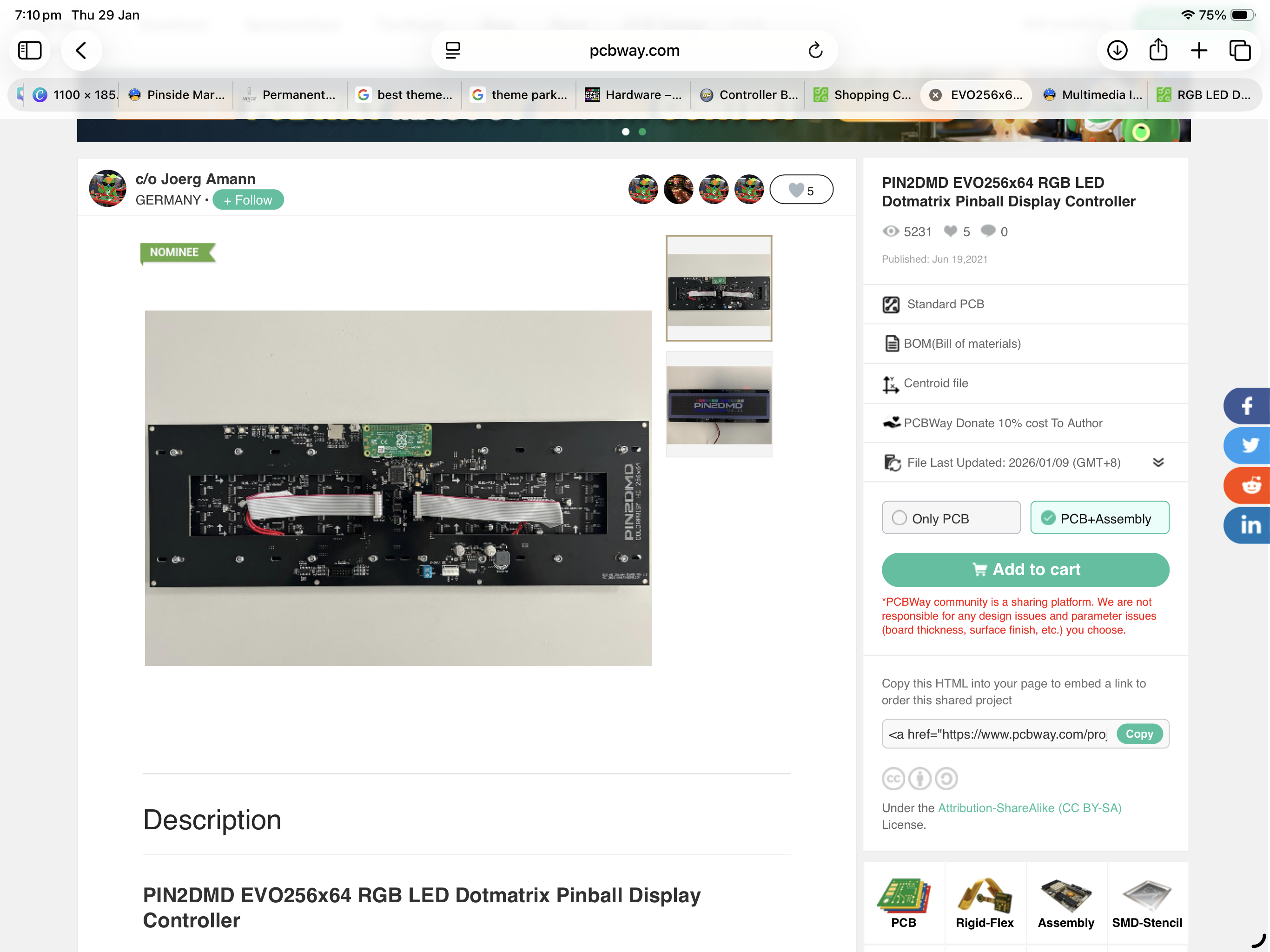

JohnnyDrama Posted January 28 Posted January 28 Hello all I am new to the forum and would like to build this for one of my pinballs This is all very complex but I see the pcbway link in the first post. If I click the link and order it as pcb+Assembly is that all I need to do other than add quantity? Do I need to modify anything else or add anything to the order? If that is correct I will order this and then the panels Thanks
Content Provider lucky1 Posted January 28 Author Content Provider Posted January 28 Maybe this helps Make sure you get non-PWM chipset panels. Due to countless variants and hard to get programming documentation PWM chipsets are not supported.
JohnnyDrama Posted January 29 Posted January 29 Thanks for the video and the advice on the lcd panels I had a look at it but it’s for the 128 x 32 version I am trying to build the larger 256 x 64 version Also I am not sure if pcbway has changed since this video was made but I was unable to find the first part on the pcbway page about source code? Are all the settings the same as the 128 version or slightly different?
Content Provider lucky1 Posted January 29 Author Content Provider Posted January 29 4 hours ago, JohnnyDrama said: Are all the settings the same as the 128 version or slightly different? The process is the same for all PIN2DMD boards on pcbway.
Content Provider lucky1 Posted January 29 Author Content Provider Posted January 29 There is a new pcb layout available on my github (and pcbway) . I added a raspberry pi header for opensource 3rd party applications. More details here https://pinside.com/pinball/forum/topic/pin2dmd-multimedia-interface-with-raspberry-pi

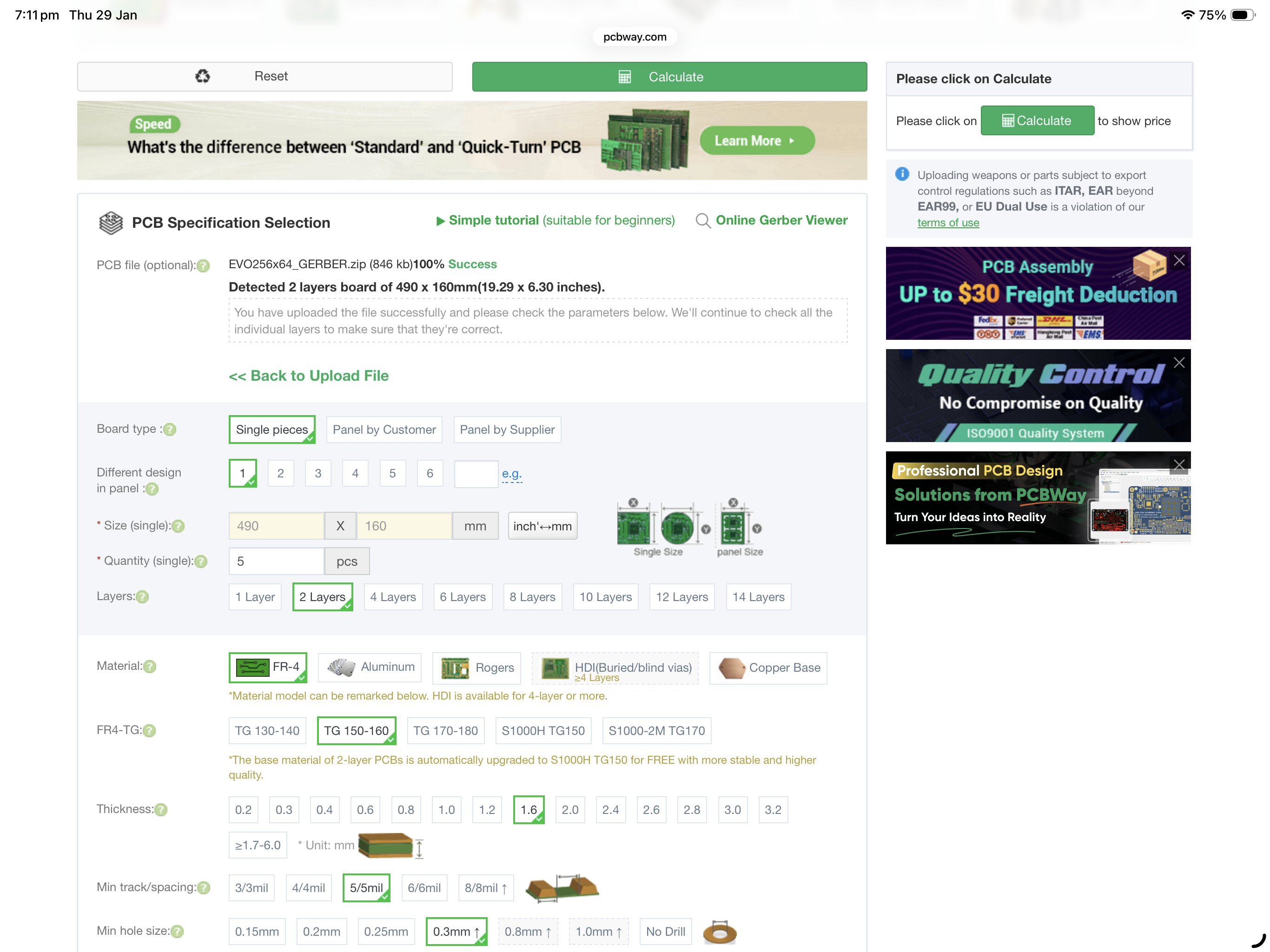

JohnnyDrama Posted January 29 Posted January 29 Thanks I have tried to place an order but can’t you please confirm this is all correct Everything was already filled out and attached other than quantity
Content Provider lucky1 Posted January 29 Author Content Provider Posted January 29 Looks good if you like green as the pcb color 🙂

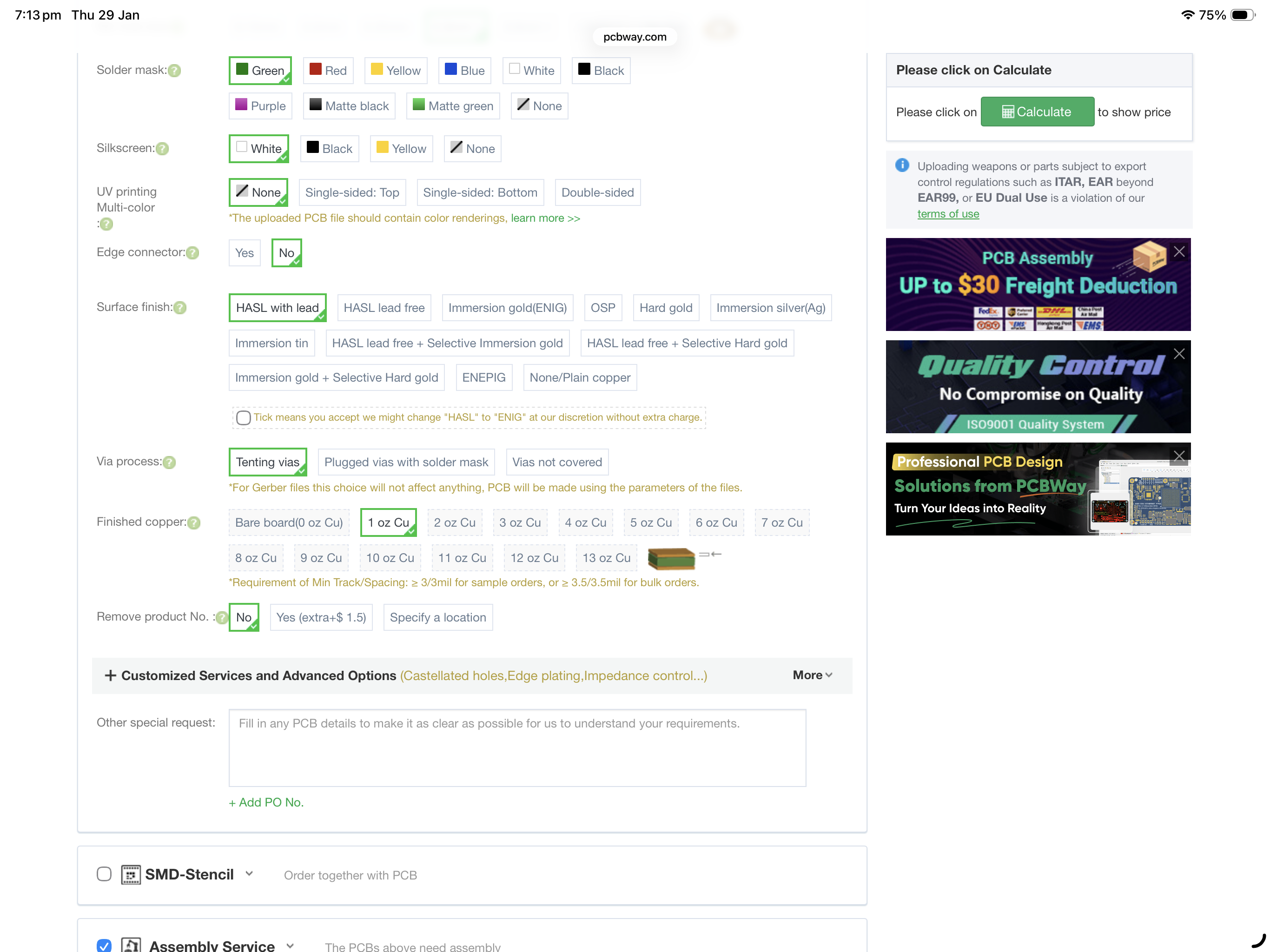

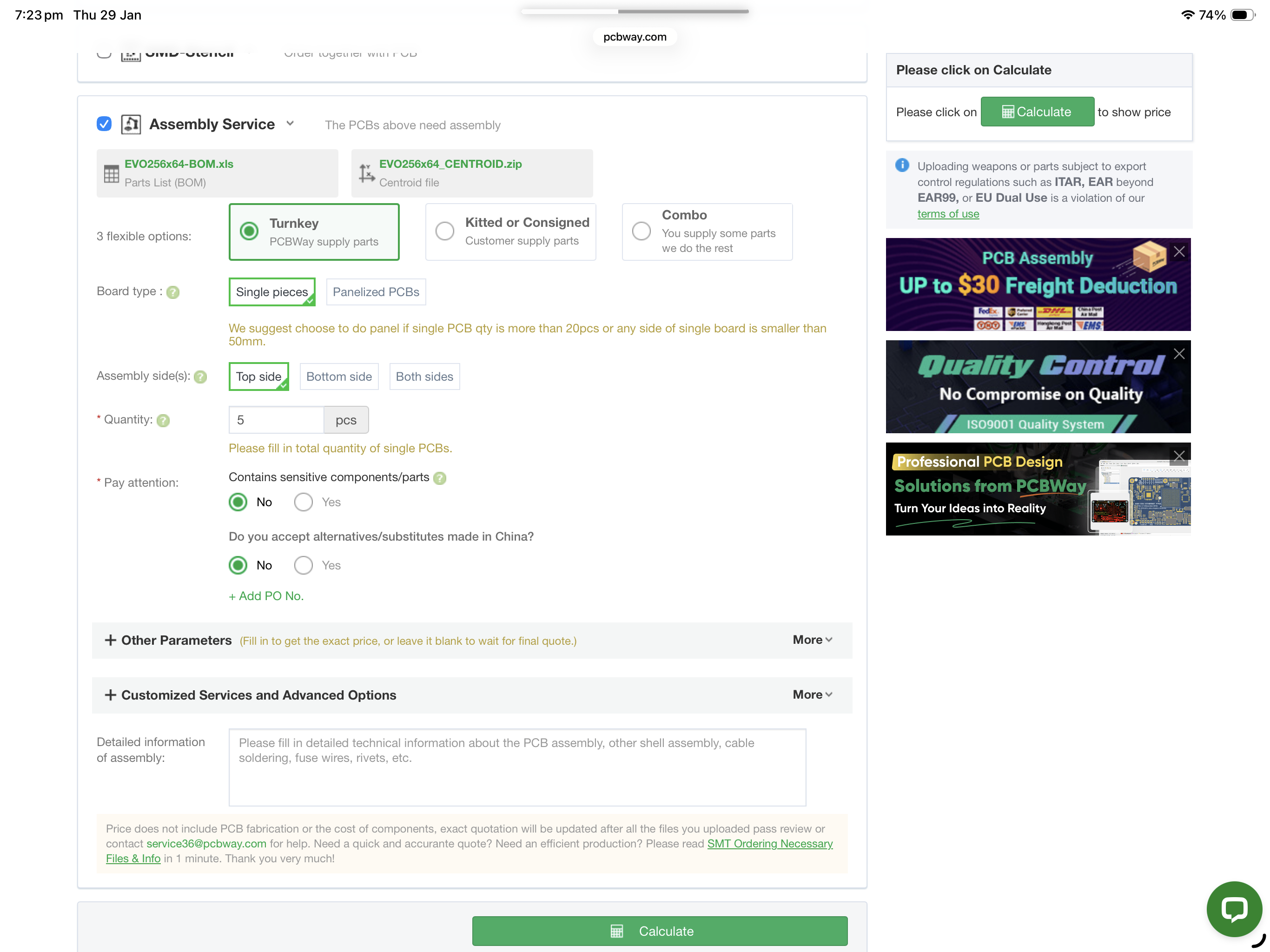

JohnnyDrama Posted January 29 Posted January 29 Thanks for your help 😀 I am nearly ready to order but I’m not sure what to answer the below? I have received an email back saying We noticed that there are some holes in pads. Do you need to add the resin? (The purpose of adding the resin is to prevent the solder paste from flowing into the hole and causing a short circuit in the welding.) If yes, do you need all bias filled with resin capped or just fill the via in pad with resin?
Content Provider lucky1 Posted January 29 Author Content Provider Posted January 29 The answer is No ! From time to time they come up with new questions. I assume to make some additional money.
JohnnyDrama Posted February 1 Posted February 1 Thanks for the help again I will place the order and then start looking for some screens 😃

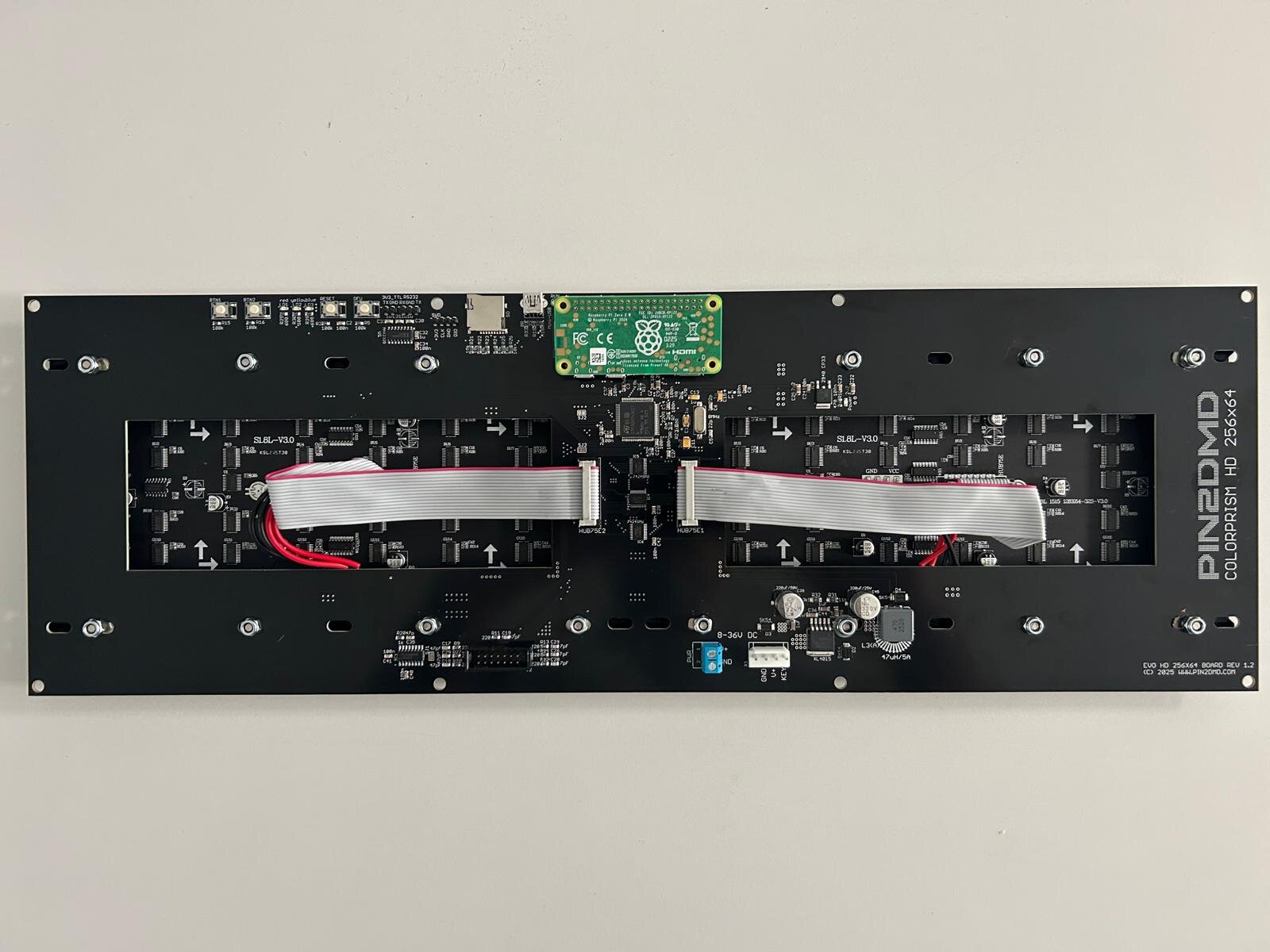

Content Provider lucky1 Posted March 29 Author Content Provider Posted March 29 I have updated the first post with pictures from the new pcb layout with raspberry PI MMI interface.
