goredaimon Posted April 12, 2021 Share Posted April 12, 2021 (edited) 4 hours ago, lucky1 said: I never had or heard a problem like this beeing reported. There are two different centroid files in the zip. One in mil and one in milimetern (mm) Mybe they took the wrong one. The gerber file from the shared project (https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x32_RGB_LED_Dotmatrix_Pinball_Display_Controller.html) (with order at the name) is different from the gerber file from the github for the 128x32 display. I did a md5sum of all files and they are different. Take a look: EVO128x32_GERBER.zip W227797ASI9_EVO128x32_GERBER.zip Edited April 12, 2021 by goredaimon Link to comment Share on other sites More sharing options...
goredaimon Posted April 12, 2021 Share Posted April 12, 2021 (edited) On the left, we have the files from gitbhub. On the right, the gerber files from the pcbway pin2dmd shared project. Only some files are equal. Also, for the gerber from the shared project, we have a plus file with .gpi extension. Only the GBO, GBP and GML files are equal. Edited April 12, 2021 by goredaimon Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 12, 2021 Author Content Provider Share Posted April 12, 2021 I added the centroid to the Gerber on pcbway. Link to comment Share on other sites More sharing options...
goredaimon Posted April 12, 2021 Share Posted April 12, 2021 Let me know when it will be ok to be download. I have to forward it to pcbway. Now It´s only available the other two projects. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 12, 2021 Author Content Provider Share Posted April 12, 2021 Don´t know whats wrong with the search engine but the 128x32 project was the first I uploaded to pcbway. https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x32_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x16_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO192x64_RGB_LED_Dotmatrix_Pinball_Display_Controller.html Link to comment Share on other sites More sharing options...
reinkc Posted April 12, 2021 Share Posted April 12, 2021 Hi all. I followed the directions on how to place an order for EVO boards from PCB Way. They are in the assembly process, and sent me an email with some questions. Hoping someone here knows the answers. I'll include the email text and pictures. "Here attached the photos of assembly order T-T4W312486A, please kindly check , if there is errors including the direction or polarity of components, please show to us, we can repair before the shipment, thank you. Also check below questions in details. For pic 5, arrows showed cathode, did we mount them correctly?" Thanks! Arrie Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 12, 2021 Author Content Provider Share Posted April 12, 2021 This project is DIY (Do-It-Yourself) Just compare to the pictures which have been posted in this thread Link to comment Share on other sites More sharing options...
goredaimon Posted April 12, 2021 Share Posted April 12, 2021 1 hour ago, lucky1 said: Don´t know whats wrong with the search engine but the 128x32 project was the first I uploaded to pcbway. https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x32_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x16_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO192x64_RGB_LED_Dotmatrix_Pinball_Display_Controller.html Thank you! I saw you put the centroid inside the gerber file. I'll send it to pcbway. Link to comment Share on other sites More sharing options...
ksultana Posted April 13, 2021 Share Posted April 13, 2021 Hi guys, Having already experienced some Pin2DMDs and liked the product, I decided to use the files kindly provided by Lucky1 and place an order at PCBWay. The PCB is ready and now they are in the process of mounting the parts onto the board. I received a mail today as follows: Hello, For assembly order T-T7W373290A, pick place file is not Ok, because the components from pick place file are offset your design, so send us the correct pick place file. Any idea what they mean with this? Link to comment Share on other sites More sharing options...
goredaimon Posted April 13, 2021 Share Posted April 13, 2021 3 minutes ago, ksultana said: Hi guys, Having already experienced some Pin2DMDs and liked the product, I decided to use the files kindly provided by Lucky1 and place an order at PCBWay. The PCB is ready and now they are in the process of mounting the parts onto the board. I received a mail today as follows: Hello, For assembly order T-T7W373290A, pick place file is not Ok, because the components from pick place file are offset your design, so send us the correct pick place file. Any idea what they mean with this? Please send them this centroid. EVO128x32_CENTROID.zip Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 13, 2021 Author Content Provider Share Posted April 13, 2021 To explain the centroid file above is also in the gerber zip on pcbway and my github Link to comment Share on other sites More sharing options...
rivalem Posted April 26, 2021 Share Posted April 26, 2021 (edited) hi i have a problem the pcbway send to me a email: Hi Ricardo, For SMT order No.T-B5W77949A_128x32-BOM, for C11,the value of capacitor of TAJB225K020RNJ is 20V,but 35V requested in "bill of material" file. Pls confirm should we proceed to use this 20V capacitor or not? If 35V capacitor needed,pls provide part number,we will quote for you ASAP. what i have to do guys? Edited April 26, 2021 by rivalem Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 26, 2021 Author Content Provider Share Posted April 26, 2021 20V is o.k Link to comment Share on other sites More sharing options...
rivalem Posted April 26, 2021 Share Posted April 26, 2021 3 minutes ago, lucky1 said: 20V is o.k thanks Link to comment Share on other sites More sharing options...
ksultana Posted April 29, 2021 Share Posted April 29, 2021 Quick question.... ribbon cable to connect the RGB LED display panel to the board, I currently have only female to female cables that were supplied with the panels. Where can I find a male to female 16 pin ribbon cable to connect the RGB Led panel to HUB75 connector, or is there a convertor with which I can use my female to female cables here? Thanks Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted April 29, 2021 Author Content Provider Share Posted April 29, 2021 1 hour ago, ksultana said: Quick question.... On the EVO128x32 and EVO128x16 the Hub 75 is directly connected to the first LED module Link to comment Share on other sites More sharing options...
ksultana Posted April 29, 2021 Share Posted April 29, 2021 Lucky1, but you need to have a male to female flat cable to connect the first LED module to HUB75 no? My question was where can I get such cable, since I have got only female to female 16pin IDC flat cables with my led modules... or does a converter exist for this, to turn HUB75 into a male connection? Link to comment Share on other sites More sharing options...
ksultana Posted April 29, 2021 Share Posted April 29, 2021 Ok... now I see it... the led module slides into hub 75... sorry for the misunderstanding. Great design!! Link to comment Share on other sites More sharing options...
Thargor Posted May 9, 2021 Share Posted May 9, 2021 (edited) Hello I have a problem with my order from pcbway. The Evoboard is not recogniced by the Win10 PC and the DefuSe v3.06 software to upgrade the latest firmware When I click the DFU and Reset Button like in the instruction from the pind2dmd.com site , the system device manager was recogniced as stm32 bootloader, this should be ok?! The LED Panels or not installed yet... they are on the way...should arrived in a few days hopefully So what can I do? Edit: now I´ve got it: the win10 driver wasn´t installed correctly. After upgrade, only the red led is lightning, seems to be ok?! Edited May 9, 2021 by Thargor Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted May 10, 2021 Author Content Provider Share Posted May 10, 2021 18 hours ago, Thargor said: After upgrade, only the red led is lightning, seems to be ok?! Yes. Link to comment Share on other sites More sharing options...

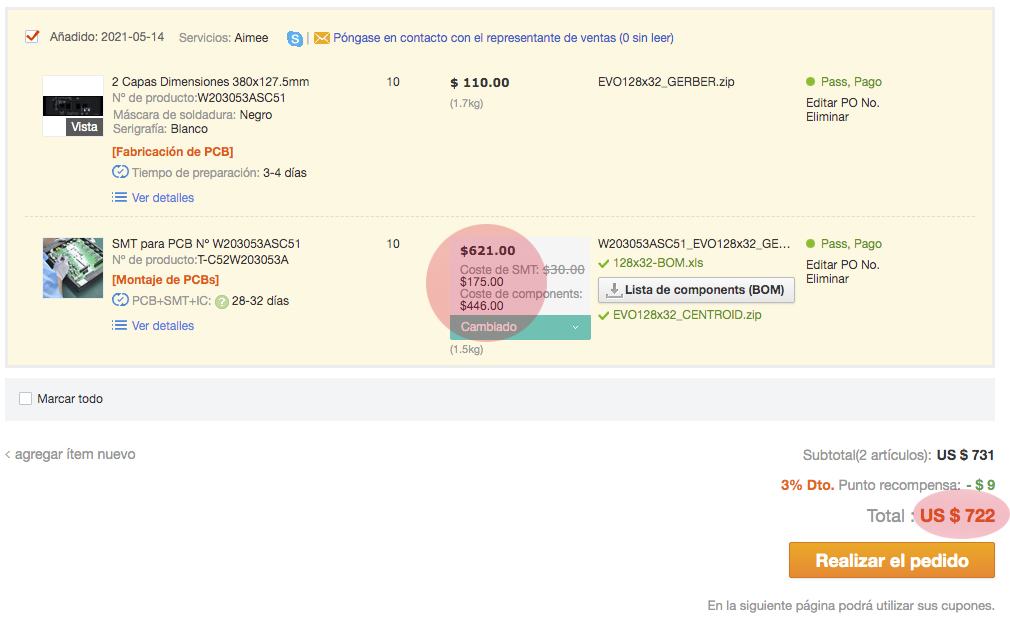

Chesco Posted May 17, 2021 Share Posted May 17, 2021 (edited) Good afternoon. I am pending to make a payment to Pcbway for 10 new Boards with the new CENTROID and BOM files. In the last order, the total price was 610$ (February 2.021). This time, the price is 722$. Is normal this considerable price increase? Greetings. Edited May 17, 2021 by Chesco Link to comment Share on other sites More sharing options...
Content Provider Terranigma Posted May 17, 2021 Content Provider Share Posted May 17, 2021 25 minutes ago, Chesco said: This time, the price is 722$. Is normal this considerable price increase? Due to the chip shortages the price of the STMF4 has gone up. If you check your BOM it should show the increase in parts there. The price fluctuates but generally its $25 USD+ per piece. You may also see a jump in shipping as well. Link to comment Share on other sites More sharing options...
Chesco Posted May 17, 2021 Share Posted May 17, 2021 38 minutes ago, Terranigma said: Due to the chip shortages the price of the STMF4 has gone up. If you check your BOM it should show the increase in parts there. The price fluctuates but generally its $25 USD+ per piece. You may also see a jump in shipping as well. Correct... Thanks 😉 Link to comment Share on other sites More sharing options...
ItemKiller Posted June 3, 2021 Share Posted June 3, 2021 Good day! PCBWay wrote: Q1;FC4SDCBMF8.0-T1 are out of stock, can you provide replacement What is better replacement? FC4SDCBMM8.0-T1 or another one? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted June 3, 2021 Author Content Provider Share Posted June 3, 2021 7 hours ago, ItemKiller said: FC4SDCBMM8.0-T1 Should be o.k. Link to comment Share on other sites More sharing options...
