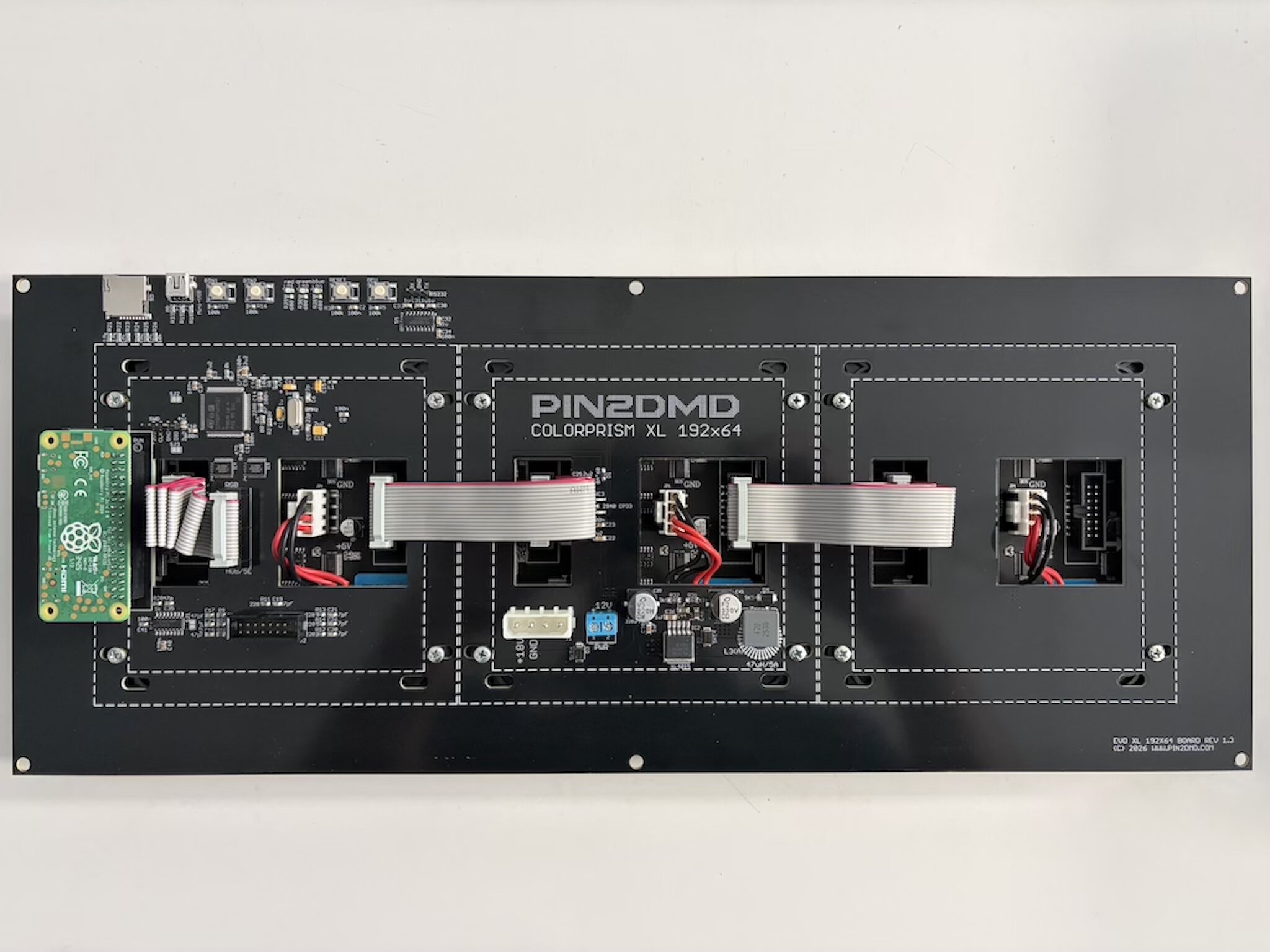

Content Provider lucky1 Posted August 1, 2019 Content Provider Share Posted August 1, 2019 Almost one year ago we presented the PIN2DMD EVO128x32 all-in-one controller board. The plug and play design received a lot of positive feedback and pinball ethusiasts from all over the world successfully built several hundred PIN2DMDs using the ordering information published on github. PIN2DMD firmware now supports Sega 192x64 display mode for almost 2 years now and is successfully running in more than 100 machines. One and a half year ago we successfully added support for DataEast 128x16 machines. To round things up I decided to also design a EVO board for my private DataEast 128x16 Checkpoint machine and my Sega 192x64 Batman FE pinball. To make sure that there are no errors in the pcb layout I ordered a test run (10 pieces) from the chinese pcb manufacturer called pcbway. They offer turnkey manufacturing service at a good price which means they not only manufacture the pcb but also source the parts and mount them on the pcb. All infomation can be found here https://github.com/lucky01/PIN2DMD/tree/master/hardware. You receive a fully functional pcb and only need mount the RGB display panels and solder the power connector for the panels to the pcb to get a fully working pin2dmd hardware. The pcb uses the original power plugs like installed in the DE and SEGA machines as these connectors supply enough amps to drive the panels (not like WPC power DMD power plugs which would get overloaded) As always pcb design can be used free by everyone no matter if for personal use, to organize a group buy or sell them in a shop. I still don´t commercially sell any hardware. Here are some pictures of my testboards. Link to comment Share on other sites More sharing options...
dpannell2 Posted August 6, 2019 Share Posted August 6, 2019 As always, Great work Lucky1! I'm especially excited to see the 128x16 board with the built in DE controller in the single board design. Congratulations and thanks for all the hard work on pin2dmd to date. Link to comment Share on other sites More sharing options...
Content Provider malenko Posted August 6, 2019 Content Provider Share Posted August 6, 2019 I know you dont sell em, but I'd still like to get one from you so I have an actual Lucky1 Pin2DMD Link to comment Share on other sites More sharing options...
Rappelbox Posted August 7, 2019 Share Posted August 7, 2019 Thank you @lucky1 for completing the pin2dmd evolution line-up! Can't wait to have them in my hands Link to comment Share on other sites More sharing options...
dzorbas Posted October 16, 2019 Share Posted October 16, 2019 What LED panels are being used for the 192x64 setup? I have a friend that has ordered 10 PCBs from PCBWay is looking for the proper LED panels. Are these P2.5 64x64 with 1/32 scan rate? Thanks, Dino Z. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted October 16, 2019 Author Content Provider Share Posted October 16, 2019 4 hours ago, dzorbas said: What LED panels are being used for the 192x64 setup? I have a friend that has ordered 10 PCBs from PCBWay is looking for the proper LED panels. Are these P2.5 64x64 with 1/32 scan rate? Thanks, Dino Z. From https://pin2dmd.com/hardware/ Quote To build a replacement display for Sega 192×64 you need three 64×64 panels with 2.0mm spacing (P2) . These panels measure 128x128mm and result in a total display size of 128x384mm which is nearly the same size as the original Sega panels. Link to comment Share on other sites More sharing options...
dzorbas Posted October 16, 2019 Share Posted October 16, 2019 There's no mention of scan rate for the larger panels but I'm assuming 1/32. I apologize in advance if this is obvious to some people. I'm not an engineer. ? Thanks, DZ. Link to comment Share on other sites More sharing options...
Rappelbox Posted October 16, 2019 Share Posted October 16, 2019 There's no mention of scan rate for the larger panels but I'm assuming 1/32. I apologize in advance if this is obvious to some people. I'm not an engineer. [emoji849] Thanks, DZ. Sorry if I sound like an asshole but you should console research, and I mean seriously research. We did some mistakes ourselves, some of them very expensive. You want to join the Pin2dmd experience then you should have a read. That’s what most of us did and lucky1 provided all needed information! Link to comment Share on other sites More sharing options...
dzorbas Posted October 16, 2019 Share Posted October 16, 2019 Actually you are coming across that way. I've done a lot of research. I've read just about everything that I can on here, I've read as much as I can on pinside and on the pin2dmd site. Some things aren't clear and/or obvious and/or consistent. I've tried not to bother too many people with my questions but I thought that's what these communities are for - sharing and helping. I thought the idea was to try to assist others so that they didn't make the same mistakes. I guess you don't believe in paying it forward and feel we all need to suffer a bit, just as you have in the past. Similar to our private discussion on where to get the proper LED boards when you told me you couldn't divulge your source because you make a living doing this, very helpful. Like I'm trying to put you out of business or something... In the time it took you to spout off at me, you could have answered the question 10 times over. But that's okay, I will figure it out eventually, with or without your help. Thanks. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted October 16, 2019 Author Content Provider Share Posted October 16, 2019 The P2 panels are only available in 1/32 scan. Only P2.5 panel exist which use 2 x 1/16 scan panels. Here is the link to the supplier I have been using https://de.aliexpress.com/store/group/P2/933144_512582883.html Link to comment Share on other sites More sharing options...
dzorbas Posted October 16, 2019 Share Posted October 16, 2019 Thank you very much Lucky1. Always grateful for your patience and assistance, even when I ask dumb questions. Dino Z. Link to comment Share on other sites More sharing options...
fly Posted October 31, 2019 Share Posted October 31, 2019 Hi Lucky1 I don't know if it's soldering fault or something else, the software has loaded, but only led power is on . The voltage on the displays is (5V) Thank you Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 1, 2019 Author Content Provider Share Posted November 1, 2019 If the software is correctly loaded and no SD card is inserted the red led will turn on . Are you sure you took the "UPGRADE" button in the DFUSE software. If you took the "UPLOAD" button instead you saved the flash content of the cpu to your disk drive and may have overwritten the firmware file with a backup of a empty flash. Please download the firmware again from here https://github.com/lucky01/PIN2DMD/blob/master/firmware/latest/EVO128x32_EVO128x16/PIN2DMD.dfu and use the "UPGRADE" button. Link to comment Share on other sites More sharing options...
fly Posted November 1, 2019 Share Posted November 1, 2019 yes I used "UPGRADE", I downloaded the software from your link, unfortunately the problem is still there. Should the image "PIN2DMD" appear immediately after uploading the software? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 1, 2019 Author Content Provider Share Posted November 1, 2019 You need to press the reset button on the device to leave the DFU mode. Link to comment Share on other sites More sharing options...
fly Posted November 1, 2019 Share Posted November 1, 2019 yes i do that is, something with the device is probably wrong Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 1, 2019 Author Content Provider Share Posted November 1, 2019 Since you managed to program the device using the USB DFU mode it should at least register as a pin2dmd USB device after you reset it. If it is not something with the programming went wrong. Link to comment Share on other sites More sharing options...
fly Posted November 2, 2019 Share Posted November 2, 2019 ok i will try again Thank you Link to comment Share on other sites More sharing options...
fly Posted November 2, 2019 Share Posted November 2, 2019 I tried several times, unfortunately still the same. ? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 2, 2019 Author Content Provider Share Posted November 2, 2019 The file size shown is too big. The DFU file in my repo is 426.293bytes . Also the Product ID and Version is 0000 in my DFU file. I´m pretty sure you are using a defective file. Please download again, check the filesize and upgrade again. https://github.com/lucky01/PIN2DMD/blob/master/firmware/latest/EVO128x32_EVO128x16/PIN2DMD.dfu Link to comment Share on other sites More sharing options...
fly Posted November 2, 2019 Share Posted November 2, 2019 there is progress, the red led is on, there is nothing on the display Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 3, 2019 Author Content Provider Share Posted November 3, 2019 Then the only thing left is to check the solder joints and the connection of the HUB75 connector to the panel. Link to comment Share on other sites More sharing options...
fly Posted November 3, 2019 Share Posted November 3, 2019 Ok, Thank you so much Lucky1 for your help Link to comment Share on other sites More sharing options...
fly Posted November 3, 2019 Share Posted November 3, 2019 as soon as I turn the 5V power on and off several times, a blurred image appears on the display and from time to time the image with PIN2DMD appears briefly Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 3, 2019 Author Content Provider Share Posted November 3, 2019 6 hours ago, fly said: as soon as I turn the 5V power on and off several times, a blurred image appears on the display and from time to time the image with PIN2DMD appears briefly Never had this problem with professionally soldered pcbs. Link to comment Share on other sites More sharing options...
