[New VP10 Alert] Dark Chaos (apophis 2025)

[KayiDMD]

On 4/21/2025 at 2:53 PM, Terrada said:

You're not alone. Same thing here. No DOF toys as solenoids are working for me.

I got the DOF toys all working by going back to VPU and updating my DIF config file. Got the back LED matrix running at least.

[toaopeter]

This is a great table. I would love to see it in Mixed Reality mode to play it in my living room.

[shaftiel74]

Amazing table - however when I go to enable GLF Virtual Segment DMD, the game freezes and I cannot save the config. Is there a way to enable within the script?



Update - I was able to address this issue. Just needed FlexDMD dlls re-registered.

Edited April 27, 2025 by shaftiel74

[Georgc]

Great table, small issue that I am having. I have the alphanumeric DMD enabled, but its orange text. Since this is an original table F1 doesn't show me DMD settings. How do i change the text color for the DMD? Thanks again

[outhere]

1 hour ago, Georgc said:

Great table, small issue that I am having. I have the alphanumeric DMD enabled, but its orange text. Since this is an original table F1 doesn't show me DMD settings. How do i change the text color for the DMD? Thanks again

Reed this

https://github.com/freezy/dmd-extensions/tree/master/LibDmd/Output/Virtual/AlphaNumeric#alpha-numeric-displays

[Georgc]

On 5/4/2025 at 4:02 PM, outhere said:

Reed this

https://github.com/freezy/dmd-extensions/tree/master/LibDmd/Output/Virtual/AlphaNumeric#alpha-numeric-displays



Awesome, thank you

[Genesis38]

Amazing table!!!! I do get a lot of stuttering during multiball and not sure how I can get around it. All the settings on my VPX are turned down. i7 8700k CPU and 3070ti GPU. Any recommendations on what I can try next?

[deadmanworking]

@Genesis38 did you follow all performance tips in the table description? Switching from Frame pacing to Vsync made the biggest difference on this table for me.

[Runner]

Hey all,



I can't start playing this table.  I get the following message when I press on my start button: Tournament file export requires a valid DMD script connection to PinMame via 'UseVPM(Colored)DMD = True'



I have the VPX 10.8 official release installed

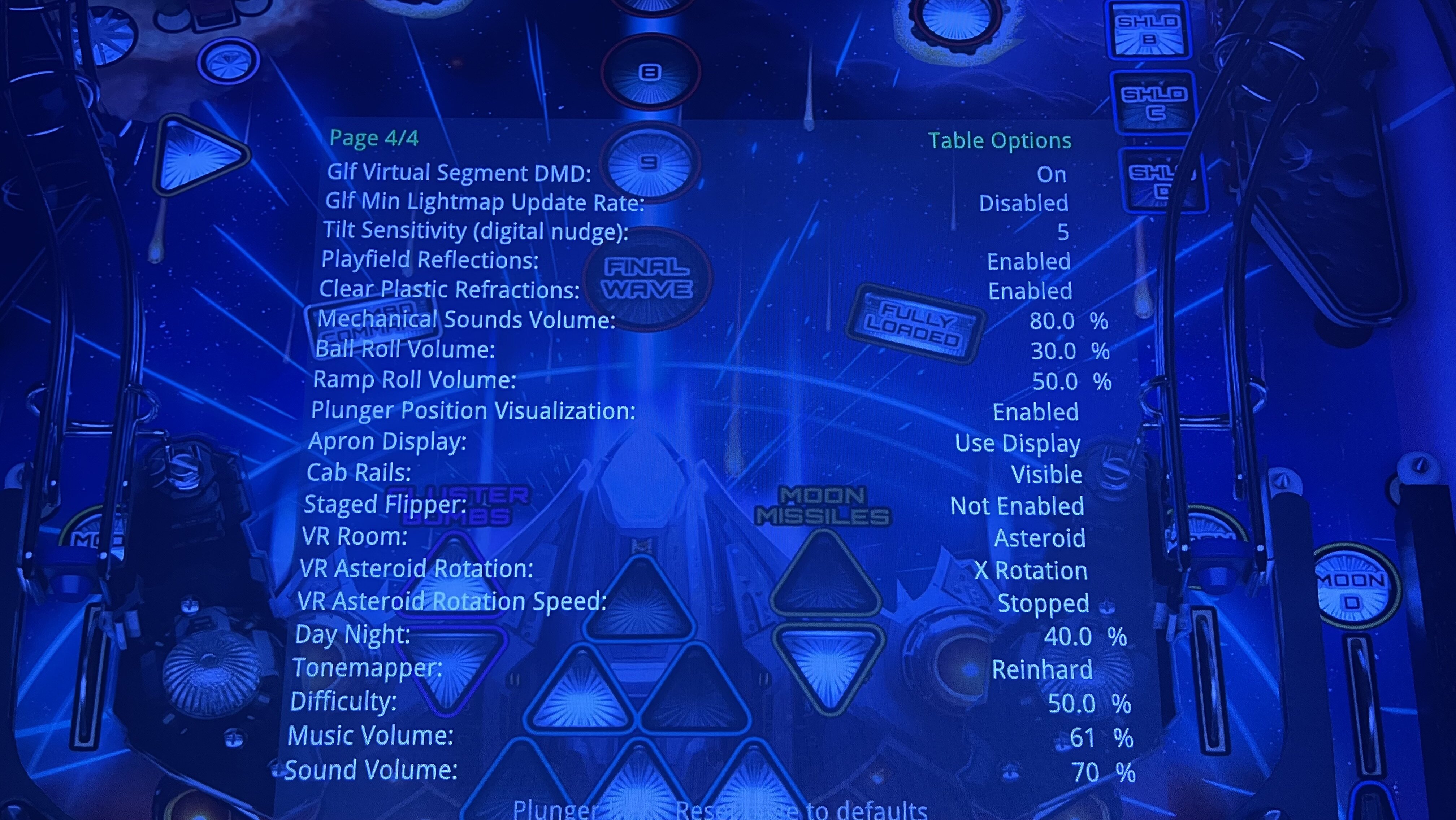

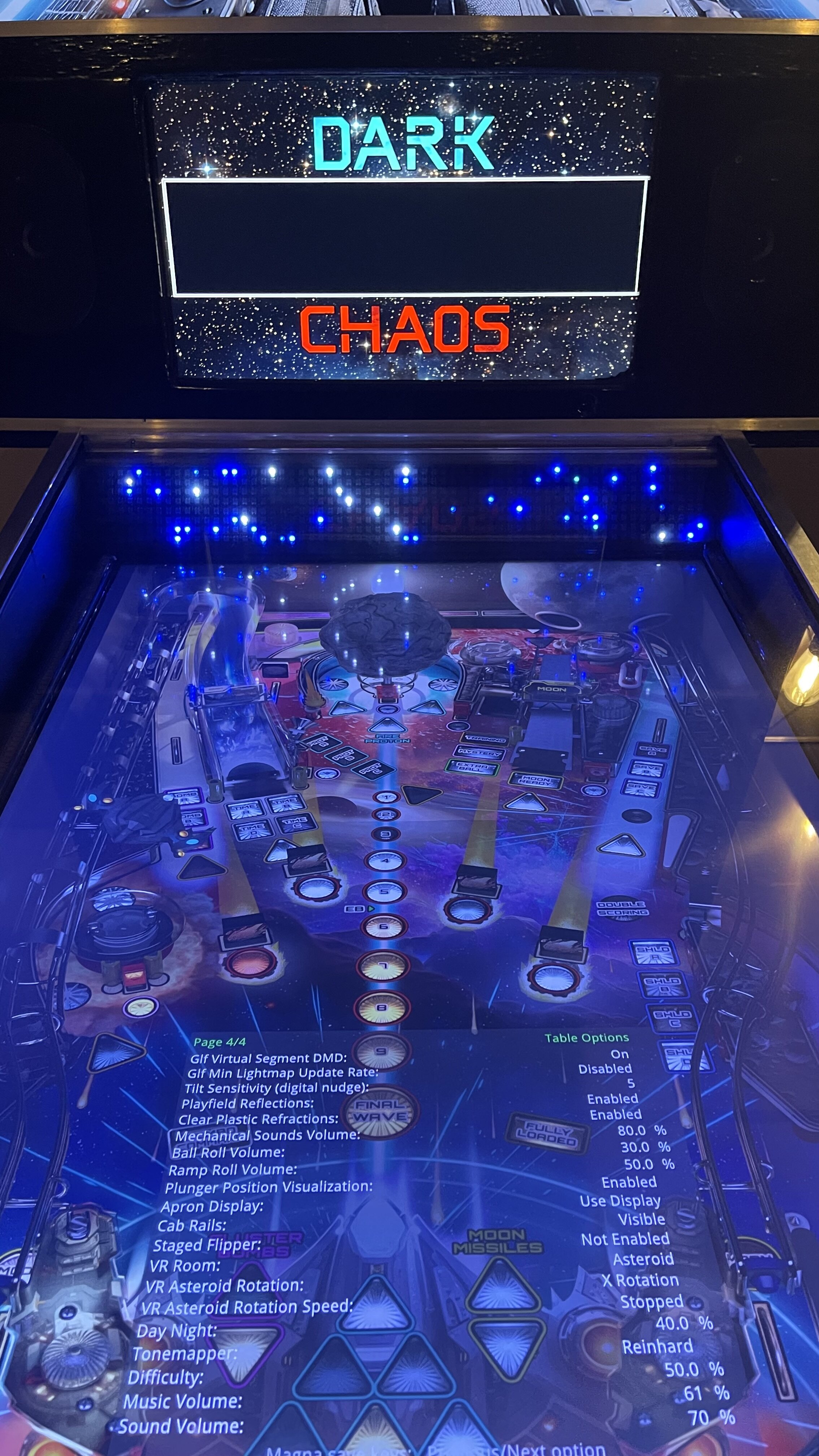

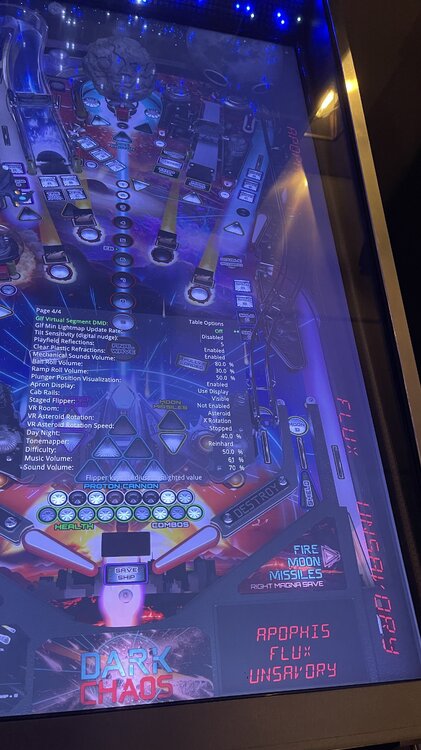

Turned on the "GLF Virtual Segment DMD" option in the Tweak Menu and pressed on my start button to save the options (I can see the ini file having been created in the table folder location

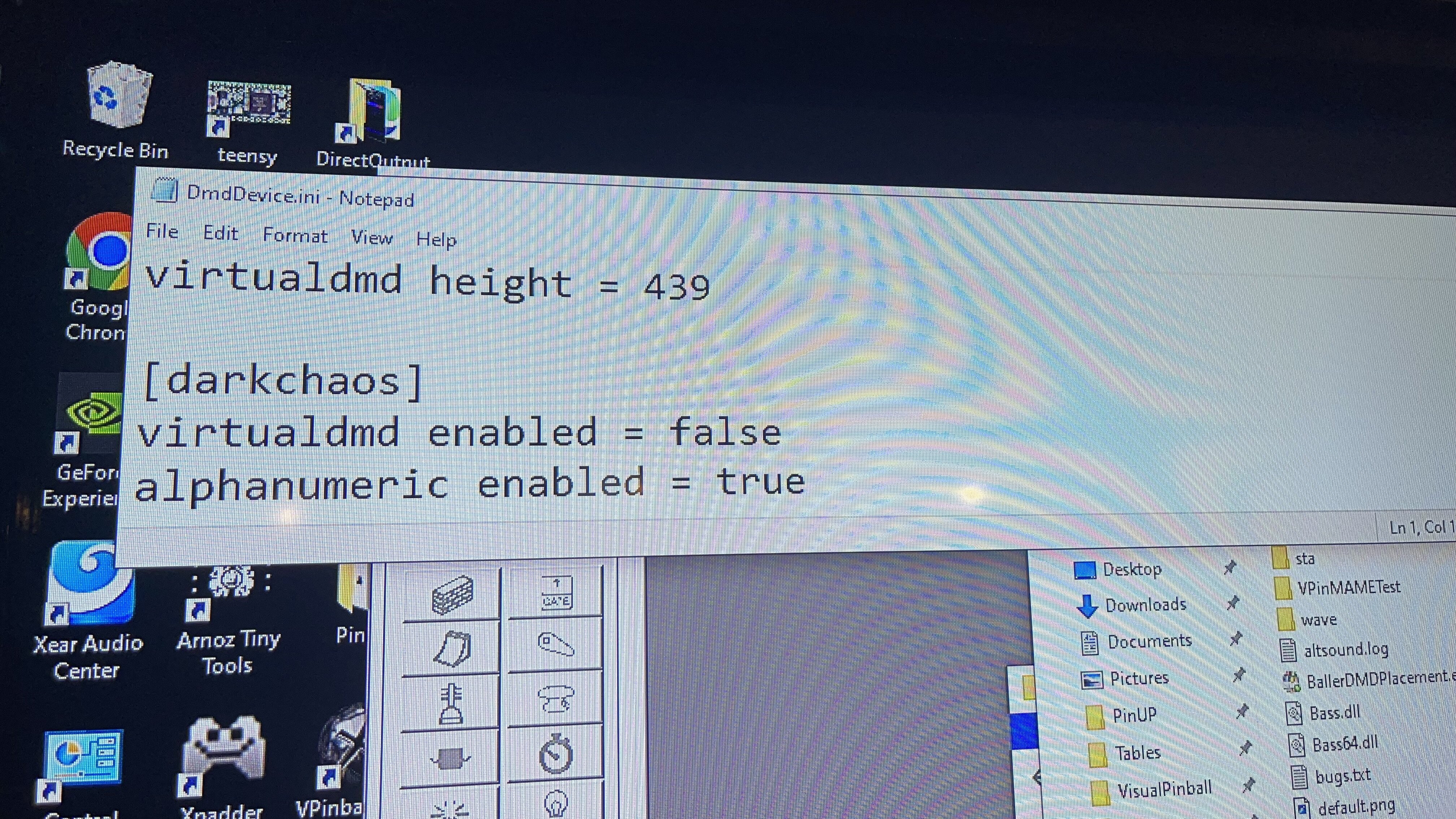

I also added in my DmdDevice.ini file the following code:

[darkchaos]
virtualdmd enabled = false
alphanumeric enabled = true



What am I missing?  First table that gives me this message.  The alphanumeric DMD is working fine.



Update: It somehow started working fine.  Not sure what fixed it.

Edited May 25, 2025 by Runner

[Ryangel]

On 4/24/2025 at 9:41 PM, KayiDMD said:

I got the DOF toys all working by going back to VPU and updating my DIF config file. Got the back LED matrix running at least.







Can you explain what you mean by this instruction?  None of my solenoids or contactors are working either.

[outhere]

1 hour ago, Ryangel said:

Can you explain what you mean by this instruction?  None of my solenoids or contactors are working either.

Have you updated your dof website files lately

[Ryangel]

3 hours ago, outhere said:

Have you updated your dof website files lately

Yes, I updated them just after downloading this table.  I even searched for Dark Chaos on the DOF site to make sure it was included.  I just need to click "Generate Config" after I've signed in and then paste those three files to my vPinball/DirectOutput folder correct?

Edited August 27, 2025 by Ryangel

[outhere]

40 minutes ago, Ryangel said:

Yes, I updated them just after downloading this table.  I even searched for Dark Chaos on the DOF site to make sure it was included.  I just need to click "Generate Config" after I've signed in and then paste those three files to my vPinball/DirectOutput folder correct?

Try
vPinball\DirectOutput\Config

[Ryangel]

1 minute ago, outhere said:

Try
vPinball\DirectOutput\Config

The files I placed in there didn't replace anything and don't seem to have fixed it,

These are the files I should be copying correct?

[outhere]

20 minutes ago, Ryangel said:

The files I placed in there didn't replace anything and don't seem to have fixed it,

These are the files I should be copying correct?

There should be at least one INI Fille

[outhere]

23 minutes ago, Ryangel said:

The files I placed in there didn't replace anything and don't seem to have fixed it,

These are the files I should be copying correct?

Do your solenoids or contactors work with other games

[Ryangel]

27 minutes ago, outhere said:

Do your solenoids or contactors work with other games

Ya, they seem to work fine on all my other tables.  To be clear, those three files I provided a screenshot of above are the three I'm given when I click Generate Config on the DOF Config Tool website.  Are you saying the config zip file they provide me from the website is missing an INI file as well?

Edited August 27, 2025 by Ryangel

[outhere]

6 hours ago, Ryangel said:

Ya, they seem to work fine on all my other tables.  To be clear, those three files I provided a screenshot of above are the three I'm given when I click Generate Config on the DOF Config Tool website.  Are you saying the config zip file they provide me from the website is missing an INI file as well?

Yes
On the dof website did when you created your account did you select the type of Hardware you're using for dof?

Edited August 27, 2025 by outhere

[Ryangel]

9 hours ago, outhere said:

Yes
On the dof website did when you created your account did you select the type of Hardware you're using for dof?

Hmm, I don't recall specifying my hardware at the time.  How do I do that on that website?

[outhere]

6 minutes ago, Ryangel said:

Hmm, I don't recall specifying my hardware at the time.  How do I do that on that website?

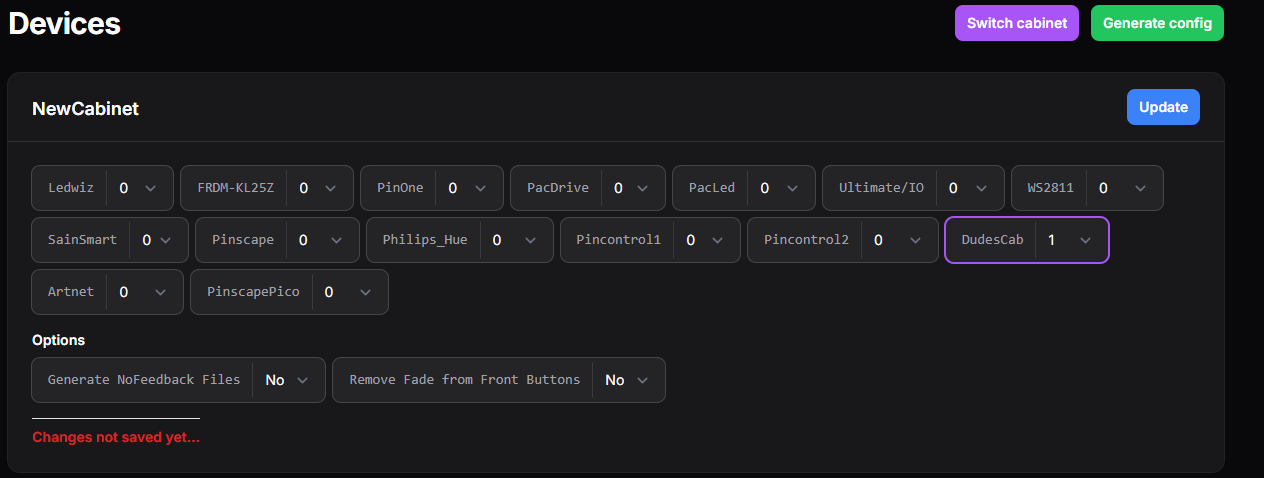

Under Devices on the DOF Website

[Ryangel]

1 hour ago, outhere said:

Under Devices on the DOF Website

Ok, so if I pick my controller board, do I select 1?  I don't see any other options to add other devices from there, what do I do next?



Edited August 27, 2025 by Ryangel

[outhere]

2 hours ago, Ryangel said:

Ok, so if I pick my controller board, do I select 1?  I don't see any other options to add other devices from there, what do I do next?



After you pick your hardware and I believe then you hit update then you need to go to Port assignments and assign the correct ports however your system is wired

[mikeyg885]

Dark Chaos what an incredible table Love it! .. for some reason the DMD will not show up on my 3rd screen.  The original version worked but I can t seem to get it to show up.  Any ideas on why?

[outhere]

If your third screen is a real DMD the setting is an F12 otherwise I can't imagine why it's not showing up since it showed up with the previous release

[Ryangel]

On 8/27/2025 at 2:21 PM, outhere said:

After you pick your hardware and I believe then you hit update then you need to go to Port assignments and assign the correct ports however your system is wired

I just want to say a big THANK YOU to you for all your help.  Your instructions not only helped me to get this table working, but also fixed the issues I was having with Jokerz! and Cyclone tables causing my beacons to run nonstop.  Thanks for being so responsive and patient as I worked through all these random issues!  This community here at VPUniverse is amazing.
