Content Provider zedrummer Posted March 9, 2023 Content Provider Posted March 9, 2023 (edited) I/ Basic installation Here are the installation steps: I suppose you already have VPinMAME 3.6.0+ and Visual Pinball softwares set up and working. Throughout this howto, I will consider that you installed it in the standard directory "C:\Visual Pinball\VPinMAME", if not, modify the pathes accordingly. Setup VPinMAME so that it displays colorization: either for a specific table pressing "F1" ingame or for all tables running "C:\Visual Pinball\VPinMAME\Setup.exe" then clicking "Setup Defaults...". Check "Use External DMD (dll)" and "Colorize DMD (4 colors)" and click "OK": Download the latest DMD-extensions from freezy from the official Github https://github.com/freezy/dmd-extensions/releases . Now 2.3.0+ is required. Choose the latest "dmdext-vx.x.x-x64.zip" if your VPX installation is 64 bits or "dmdext-vx.x.x-x86.zip" if your VPX installation is 32 bits. Be sure to unblock the zip file before opening it (https://singularlabs.com/tips/how-to-unblock-a-zip-file-on-windows-10/). Uncompress everything in your "C:\Visual Pinball\VPinMame\" directory except the dmddevice.ini file if you have already Visual Pinball fully working. If this is a fresh installation or you have a version older than 2.3.0, you may add dmddevice.ini too and then modify it to reflect your configuration (you may refer to the second column of the table here https://github.com/freezy/dmd-extensions#configuration). Be sure to check that: Visual C++ redistributable 2017 is installed, you may download it from here https://aka.ms/vs/17/release/vc_redist.x86.exe (for 32 bits) or here https://aka.ms/vs/17/release/vc_redist.x64.exe (for 64 bits) and that there is no serum.dll, serum64.dll, pin2color.dll or dmdscreen.dll in VPinMame directory! Be advised that installing dmdext, you could need extra installations to have PAC colorization files working. Check this https://vpuniverse.com/forums/topic/9051-new-release-v220-final/. If you don't have it already, create a directory "altcolor" in "C:\Visual Pinball\VPinMAME". Then create a directory named after the name of the rom you want to colorize, for example "ss_15" if you want to install @dtatane Scared Stiff. If you are using PinballFX, @FP125 gave us the information "Managed to get it working by renaming the .crz file to match the FX3 altcolour folder, i.e. BALLY_CREATURE_FROM_THE_BLACK_LAGOON" Then copy there the ".cRZ" Serum file you downloaded from https://vpuniverse.com/files/category/173-serum-dmd-colorizations/. You now should have something like: Now you may start Visual Pinball and launch the table and enjoy your Serum-colorized table! II/ Aliases You know that you may have different installations for the same ROM or table (for example, a version with PUP pack and another without). For that, you create aliases (I can suggest this video youtube.com/watch?v=Wv8vpmzpdjs)And if you want to colorize the alias table too, create a subdirectory in altcolor with the name of the alias, copy the Serum file cRZ and rename it with the alias name too. So if the alias is "ss_PUP", you have the file "ss_PUP.cRZ" in "VPinMame\altcolor\ss_PUP\". Edited December 28, 2024 by zedrummer
Content Provider zedrummer Posted March 9, 2023 Author Content Provider Posted March 9, 2023 [Reserved for installation problem tips]
UncleSlim Posted March 9, 2023 Posted March 9, 2023 the filename for 32bit is not dmdext-v2.0.0-x32.zip but dmdext-v2.0.0-x86.zip
Content Provider zedrummer Posted March 9, 2023 Author Content Provider Posted March 9, 2023 You are right thanks 😅

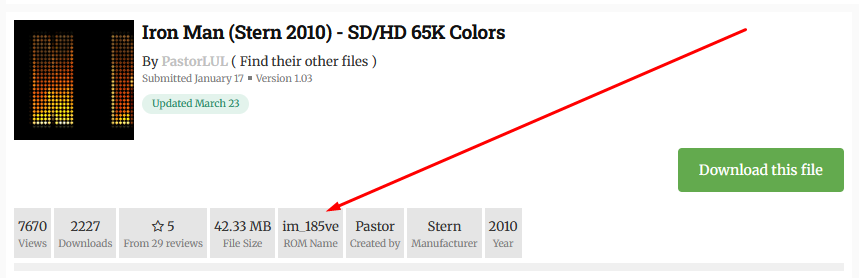

CaptainPower Posted March 9, 2023 Posted March 9, 2023 Qq, for these Serum colourizations. Do they need to have the same name as the Rom, one of the best parts of Pac was that it didn't have to be the Rom name.
Content Provider zedrummer Posted March 9, 2023 Author Content Provider Posted March 9, 2023 9 minutes ago, CaptainPower said: Do they need to have the same name as the Rom, one of the best parts of Pac was that it didn't have to be the Rom name. Do you talk about aliases Captain?
Rappelbox Posted March 9, 2023 Posted March 9, 2023 1 hour ago, PEandS1Ws said: Quote removed by Dazz comments like this are a reason people leave the community and stop coloring! this is simply disrespectful! in order to have full working pac support and likely also Serum, i'd rather go this way: https://vpuniverse.com/forums/topic/7504-new-version-dmd-extensions-with-pin2dmd-coloring-plugin-and-pac-file-support/
Westworld Posted March 9, 2023 Posted March 9, 2023 55 minutes ago, Rappelbox said: in order to have full working pac support and likely also Serum, i'd rather go this way: I understand that you advertise to sell Pin2DMD as you make your money from that, but this link is not working for ZeDMD users, as all coloring, as it does not support any color for ZeDMD at all. So please understand that not everyone is using Pin2DMD and there are other people out in the world.
okerra Posted March 9, 2023 Posted March 9, 2023 1 hour ago, Rappelbox said: comments like this are a reason people leave the community and stop coloring! this is simply disrespectful! in order to have full working pac support and likely also Serum, i'd rather go this way: https://vpuniverse.com/forums/topic/7504-new-version-dmd-extensions-with-pin2dmd-coloring-plugin-and-pac-file-support/ I think the second part of your comment is also disrespectful, I see people nervous, why is it? that is we are on the right track!!!
Rappelbox Posted March 9, 2023 Posted March 9, 2023 19 minutes ago, Westworld said: I understand that you advertise to sell Pin2DMD as you make your money from that, but this link is not working for ZeDMD users, as all coloring, as it does not support any color for ZeDMD at all. So please understand that not everyone is using Pin2DMD and there are other people out in the world. well, oh no, your device got locked out. see what happens, how do think people feel about losing support for their pac files? I sell, hardware right! i don't care about pin2dmd for vpins that much to be honest, it's maybe 1% percent! Same counts for zedmd. Community will tell whats right or wrong, not you nor I. If you think I'm nervous then you're completely on the wrong track, more file formats offer endless new opportunities for me as a vendor, you'll see! 😂 And how "open source" is a system that can only be maintained by a single person that even denies bugfixes because they come from a person he doesn't like?! I'm out of this for now, developing new hardware One last EDIT: Instead of convincing authors to change to serum you pissed off almost all of them by publicly sharing their files without their permission AND publicly announcing you'd find a way to make their work functioning on "unauthorized" (sorry i don't find a better term) devices.
sudsy7 Posted March 9, 2023 Posted March 9, 2023 3 hours ago, PEandS1Ws said: For those users that are worried about having pac files that no longer work I offer up my Mega which has the old vni/pal files What is your "Mega"?
izzthatright Posted March 10, 2023 Posted March 10, 2023 Wow, this worked for me. Thanks for this great tutorial. Can someone direct me to a tutorial like this on how to install pup packs. Thanks in advance everyone. Still pretty new to this community but learning a lot. getting my files together before I build my cabinet. but already tried a few table w my tv connected and they look awesome.
Content Provider zedrummer Posted March 11, 2023 Author Content Provider Posted March 11, 2023 @izzthatright Thanks I'd say that the best tutorials for Pinup System are the ones that @NailBuster made himself here https://www.nailbuster.com/wikipinup/doku.php?id=install_guide
ytpewpew Posted March 13, 2023 Posted March 13, 2023 Anyone have a fix for the "Unable to load DLL 'serum.dll'" error? I've tried everything... [3] 2023/03/13 07:58:29.825 INFO | Successfully loaded config from C:\Visual Pinball\VPinMAME\DmdDevice.ini. [3] 2023/03/13 07:58:29.929 INFO | Determined color path from assembly path: C:\Visual Pinball\VPinMAME\altcolor [3] 2023/03/13 07:58:29.929 INFO | Starting VPinMAME API 2.0.0 through VPinballX.exe. [3] 2023/03/13 07:58:29.929 INFO | Assembly located at C:\Visual Pinball\VPinMAME\DmdDevice.dll [3] 2023/03/13 07:58:29.929 INFO | [vpm] Open(0) [3] 2023/03/13 07:58:29.929 INFO | [vpm] Set_4_Colors_Palette(0,...) [3] 2023/03/13 07:58:29.929 INFO | Setting palette to 4 colors... [3] 2023/03/13 07:58:29.929 INFO | [vpm] PM_GameSettings(0, SS_15, 1) [3] 2023/03/13 07:58:29.929 INFO | Enabling game colorization [3] 2023/03/13 07:58:29.929 INFO | Setting game name: SS_15 [3] 2023/03/13 07:58:29.929 INFO | Setting color: #FFFF5820 [3] 2023/03/13 07:58:29.939 WARN | Error initializing colorizer: Unable to load DLL 'serum.dll': The specified module could not be found. (Exception from HRESULT: 0x8007007E) System.DllNotFoundException: Unable to load DLL 'serum.dll': The specified module could not be found. (Exception from HRESULT: 0x8007007E) at LibDmd.Converter.Serum.Serum.Serum_Load(String altcolorpath, String romname, Int32& width, Int32& height, UInt32& numColors, UInt32& triggernb) at LibDmd.Converter.Serum.Serum..ctor(String altcolorPath, String romName) in C:\Development\dmd-extensions-v2022\LibDmd\Converter\Serum\Serum.cs:line 66 at LibDmd.DmdDevice.DmdDevice.SetupColorizer() in C:\Development\dmd-extensions-v2022\LibDmd\DmdDevice\DmdDevice.cs:line 212 [3] 2023/03/13 07:58:29.939 INFO | No palette file found at C:\Visual Pinball\VPinMAME\altcolor\SS_15\pin2dmd.pal. [3] 2023/03/13 07:58:29.939 INFO | ScaleToHd = False [3] 2023/03/13 07:58:29.939 INFO | Opening virtual display... [8] 2023/03/13 07:58:30.025 INFO | Found B2S, moving behind DMD. [8] 2023/03/13 07:58:30.043 INFO | PinDMDv1 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv2 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv3 device not found. [8] 2023/03/13 07:58:30.110 INFO | Added VirtualDMD renderer. [8] 2023/03/13 07:58:30.110 ERROR | [PinUpOutput] Attempt to find PuP_Trigger function but dmddevicePUP.dll is outdated [8] 2023/03/13 07:58:30.110 INFO | PinUP DLL starting SS_15... [8] 2023/03/13 07:58:30.110 INFO | Added PinUP renderer. [8] 2023/03/13 07:58:30.110 INFO | Transformation options: Resize=Fit, HFlip=False, VFlip=False [8] 2023/03/13 07:58:30.110 INFO | Applying palette to render graphs. [8] 2023/03/13 07:58:30.125 INFO | Setting up 2-bit VPM Graph for 2 destination(s) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM 2-bit Source to Dmd (Gray2 => Gray2) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM 2-bit Source to PinUP Writer (Gray2 => Gray2) [8] 2023/03/13 07:58:30.125 INFO | Setting up 4-bit VPM Graph for 2 destination(s) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM 4-bit Source to Dmd (Gray4 => Gray4) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM 4-bit Source to PinUP Writer (Gray4 => Gray4) [8] 2023/03/13 07:58:30.125 INFO | Setting up RGB24-bit VPM Graph for 2 destination(s) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM RGB24 Source to Dmd (Rgb24 => Rgb24) [8] 2023/03/13 07:58:30.125 INFO | Connecting VPM RGB24 Source to PinUP Writer (Rgb24 => Bitmap) [8] 2023/03/13 07:58:30.125 INFO | Setting up Alphanumeric VPM Graph for 2 destination(s) [8] 2023/03/13 07:58:30.435 INFO | Creating FBOs for 128x32 [3] 2023/03/13 07:58:50.951 INFO | [vpm] Close(0) [3] 2023/03/13 07:58:50.951 INFO | Closing up. [3] 2023/03/13 07:58:50.969 INFO | Source for 2 renderer(s) stopped. [3] 2023/03/13 07:58:50.969 INFO | Source for 2 renderer(s) stopped. [3] 2023/03/13 07:58:50.969 INFO | Source for 2 renderer(s) stopped. [3] 2023/03/13 07:58:50.969 INFO | Source for 0 renderer(s) stopped.
outhere Posted March 13, 2023 Posted March 13, 2023 1 hour ago, ytpewpew said: Anyone have a fix for the "Unable to load DLL 'serum.dll'" error? I've tried everything... I wonder why yours says this - pin2dmd.pal. [3] 2023/03/13 07:58:29.939 INFO | No palette file found at C:\Visual Pinball\VPinMAME\altcolor\SS_15\pin2dmd.pal. [12] 2023/03/13 15:02:27.721 INFO | Successfully loaded config from E:\Visual Pinball\VPinMame\DmdDevice.ini. [12] 2023/03/13 15:02:27.868 INFO | Determined color path from assembly path: E:\Visual Pinball\VPinMame\altcolor [12] 2023/03/13 15:02:27.876 INFO | Starting VPinMAME API 2.0.0 through VPinballX.exe. [12] 2023/03/13 15:02:27.876 INFO | Assembly located at E:\Visual Pinball\VPinMame\DmdDevice.dll [12] 2023/03/13 15:02:27.876 INFO | [vpm] Open(0) [12] 2023/03/13 15:02:27.876 INFO | [vpm] Set_4_Colors_Palette(0,...) [12] 2023/03/13 15:02:27.876 INFO | Setting palette to 4 colors... [12] 2023/03/13 15:02:27.876 INFO | [vpm] PM_GameSettings(0, SS_15, 1) [12] 2023/03/13 15:02:27.876 INFO | Enabling game colorization [12] 2023/03/13 15:02:27.876 INFO | Setting game name: SS_15 [12] 2023/03/13 15:02:27.876 INFO | Setting color: #FFFF5820 [12] 2023/03/13 15:02:28.565 INFO | Serum colorizer v1.3 initialized. [12] 2023/03/13 15:02:28.565 INFO | Loading colorization at E:\Visual Pinball\VPinMame\altcolor\SS_15\SS_15.cRZ... [12] 2023/03/13 15:02:28.565 INFO | Opening virtual display... [13] 2023/03/13 15:02:28.850 INFO | Found B2S, moving behind DMD. [13] 2023/03/13 15:02:28.891 INFO | Added VirtualDMD renderer. [13] 2023/03/13 15:02:28.968 ERROR | [PinUpOutput] Attempt to find PuP_Trigger function but dmddevicePUP.dll is outdated [13] 2023/03/13 15:02:28.968 INFO | PinUP DLL starting SS_15... [13] 2023/03/13 15:02:28.968 INFO | Added PinUP renderer. [13] 2023/03/13 15:02:28.968 INFO | Transformation options: Resize=Fit, HFlip=False, VFlip=False [13] 2023/03/13 15:02:28.968 INFO | Just clearing palette, colorization is done by converter. [13] 2023/03/13 15:02:28.984 INFO | Setting up 2-bit Colored VPM Graph for 2 destination(s) [13] 2023/03/13 15:02:29.001 INFO | Connecting Serum to Dmd (ColoredGray6 => ColoredGray6) [13] 2023/03/13 15:02:29.011 INFO | Connecting VPM 2-bit Source to PinUP Writer (Gray2 => Gray2) [13] 2023/03/13 15:02:29.011 INFO | Setting up 4-bit VPM Graph for 2 destination(s) [13] 2023/03/13 15:02:29.011 INFO | Connecting VPM 4-bit Source to Dmd (Gray4 => Gray4) [13] 2023/03/13 15:02:29.011 INFO | Connecting VPM 4-bit Source to PinUP Writer (Gray4 => Gray4) [13] 2023/03/13 15:02:29.011 INFO | Setting up RGB24-bit VPM Graph for 2 destination(s) [13] 2023/03/13 15:02:29.011 INFO | Connecting VPM RGB24 Source to Dmd (Rgb24 => Rgb24) [13] 2023/03/13 15:02:29.011 INFO | Connecting VPM RGB24 Source to PinUP Writer (Rgb24 => Bitmap) [13] 2023/03/13 15:02:29.011 INFO | Setting up Alphanumeric VPM Graph for 2 destination(s) [13] 2023/03/13 15:02:29.277 INFO | Creating FBOs for 128x32 [12] 2023/03/13 15:02:36.347 INFO | [vpm] Close(0) [12] 2023/03/13 15:02:36.347 INFO | Closing up. [12] 2023/03/13 15:02:36.360 INFO | Source for 3 renderer(s) stopped. [12] 2023/03/13 15:02:36.360 INFO | Source for 2 renderer(s) stopped. [12] 2023/03/13 15:02:36.360 INFO | Source for 2 renderer(s) stopped. [12] 2023/03/13 15:02:36.360 INFO | Source for 0 renderer(s) stopped.
Content Provider zedrummer Posted March 13, 2023 Author Content Provider Posted March 13, 2023 Now that serum.dll is embedded in dmddevice.dll, freezy is looking for this problem, trying to reproduce it. Stay tuned.
outhere Posted March 13, 2023 Posted March 13, 2023 2 hours ago, ytpewpew said: Anyone have a fix for the "Unable to load DLL 'serum.dll'" error? I've tried everything... [8] 2023/03/13 07:58:30.043 INFO | PinDMDv1 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv2 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv3 device not found. Also Are these set to False in your ini File [8] 2023/03/13 07:58:30.043 INFO | PinDMDv1 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv2 device not found. [8] 2023/03/13 07:58:30.095 INFO | PinDMDv3 device not found.
marcobus2005 Posted March 14, 2023 Posted March 14, 2023 hello, good job! Serum is ok for me now, but all my pac files dont work anymore... How can I coorect this issue? thank you
Content Provider zedrummer Posted March 14, 2023 Author Content Provider Posted March 14, 2023 It seems that the Unable to load DLL problem may come from not having installed the Visual studio C++ redistributable 2017 https://aka.ms/vs/17/release/vc_redist.x86.exe I'll add it to the tuto, sorry
Rappelbox Posted March 14, 2023 Posted March 14, 2023 1 hour ago, marcobus2005 said: hello, good job! Serum is ok for me now, but all my pac files dont work anymore... How can I coorect this issue? thank you use the files from here instead: - use the x86 files for now - do NOT replace your dmddevice.ini
marcobus2005 Posted March 14, 2023 Posted March 14, 2023 I use the X86 files and I kept my config.ini. I don't understand why . I just replace DmdDevice.dll ,DmdDevice64.dll and dmdExt.exe Before I've tried to replace all files excpet.ini and I got the same result: no more colorization except Scared Stiff!
marcobus2005 Posted March 14, 2023 Posted March 14, 2023 thanks 39 minutes ago, Rappelbox said: use the files from here instead: - use the x86 files for now - do NOT replace your dmddevice.ini I'll try this tonight
VPCabINet Posted March 14, 2023 Posted March 14, 2023 The same applies to me: I've replaced dmddevice.dll and DmdDevice.log.config in the C:\Visual Pinball\VPinMAME folder with the DMDExtension 2.0 Versions and Scared Stiff is running fine - but all other previously working colorizations have gone. Recovering the old files from the backup reverts to a working version with .pal/.vni and .pac only. So I can make only serum work OR the existing file formats but not both.
outhere Posted March 14, 2023 Posted March 14, 2023 1 hour ago, VPCabINet said: The same applies to me: I've replaced dmddevice.dll and DmdDevice.log.config in the C:\Visual Pinball\VPinMAME folder with the DMDExtension 2.0 Versions and Scared Stiff is running fine - but all other previously working colorizations have gone. Recovering the old files from the backup reverts to a working version with .pal/.vni and .pac only. So I can make only serum work OR the existing file formats but not both. When using Freezy do not have these files in the VPinMame Folder > serum.dll, pin2color.dll, dmdscreen.dll Pac files will not work with Freezy
