PIN2DMD HD SHIELD

    Create an account or sign in to download this
download_no_perm
741 Views
20 Downloads
0 From 0 reviews
869.83 kB File Size
Rene368 Created by

2 Screenshots

About This File

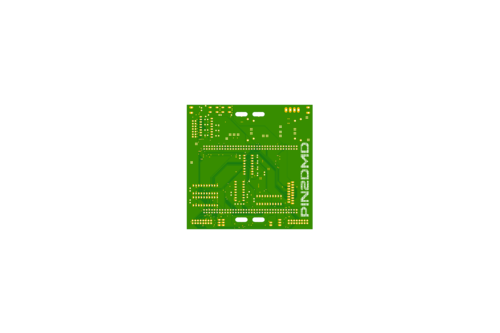

These are the files for the PIN2DMD HD shield I designed.

In the file you can find the gerber, .sch, .brd, partlist, photos of the different Micro SD readers, .dxf for laser cut panel and a photo how to orientate the shield to the panel.

This shield is designed to build a PIN2DMD HD 256x64 display.

You can source the parts yourself. This could be cheaper than its big through hole brother.

For the processor it uses a 144 pin H743 NUCLEO board.



For more information see: https://vpuniverse.com/forums/topic/5348-pin2dmd-evo-hd-upgrade-to-256x64-resolution/



!!! NOTE: The chinese LED panels can have the magnets/screw holes in another position than desired.

This is the annoying thing with these chinese LED panels. !!!
