Content Provider bent98 Posted November 22, 2016 Content Provider Share Posted November 22, 2016 Is it possible to support P-ROC system to support CCC to display on the pin2dmd? Link to comment Share on other sites More sharing options...
Content Provider CarnyPriest Posted November 22, 2016 Content Provider Share Posted November 22, 2016 Probably, but I don't think anyone has any interest in working on it at the moment. For now, it is easy enough to use dmdext.Sent from my iPad using Tapatalk Link to comment Share on other sites More sharing options...
Content Provider bent98 Posted November 22, 2016 Author Content Provider Share Posted November 22, 2016 My issue is I am using a script that Nunzzi provide that clears the Proc windows dll dependency error. Can you help write me a AHK to launch dmdext and the clear script nunzzi made as work around for the error? Link to comment Share on other sites More sharing options...
Content Provider CarnyPriest Posted November 22, 2016 Content Provider Share Posted November 22, 2016 https://www.gameex.info/forums/topic/17613-cactus-canyon-continued-p-roc-pbx-launcher-and-media-generator/ stick in a line of instruction prior to launching VPX that runs dmdext, like what I posted for you for FX2: https://www.gameex.info/forums/topic/18460-dmdext-pbx-setup/?do=findComment&comment=162618 Link to comment Share on other sites More sharing options...
jukedock Posted January 24, 2017 Share Posted January 24, 2017 http://vpinball.com/forums/topic/pin2dmd-with-ccc-proc-vpx-how-i-got-it-working-in-pbx-2/ Link to comment Share on other sites More sharing options...
jukedock Posted January 24, 2017 Share Posted January 24, 2017 http://vpinball.com/forums/topic/pin2dmd-with-ccc-proc-vpx-how-i-got-it-working-in-pbx-2/ Link to comment Share on other sites More sharing options...

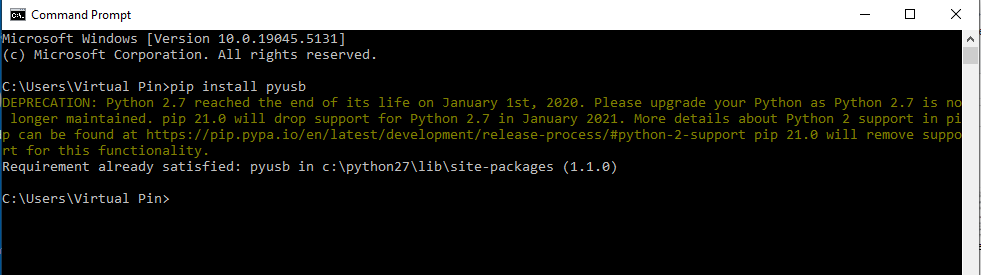

Content Provider lucky1 Posted December 29, 2019 Content Provider Share Posted December 29, 2019 Here is a modified python script to send the display data directly to the pin2dmd without having to use dmdext. You need to install pyusb by executing "pip install pyusb" and copying the libusb-1,0.dll to the Python27 folder where the python.exe is located. The script needs to be copied to the C:\P-ROC\games\cactuscanyon\ep folder. Maybe @CarnyPriest can add it to his gitnub repo. Currently it is only tested with EVO128x32 and Nucleo based pin2dmd systems with firmware v3.05 . ep_desktop_pygame.py libusb-1.0.dll Link to comment Share on other sites More sharing options...
Thalamus Posted December 29, 2019 Share Posted December 29, 2019 I'm not sure adding it to github repo is a good idea as it seems to be pin2dmd specific. Here I run pindmd3 and I get a device not found error. Link to comment Share on other sites More sharing options...
Content Provider CarnyPriest Posted December 29, 2019 Content Provider Share Posted December 29, 2019 I can create a branch off of the main repo. The whole reason I picked up the CCC code was so that I could flip the DMD render for my p2K style cab. It is branch FlipDMD. Done. The commit was made in branch 'pin2dmd'. libusb-1.0.dll is included in the root directory. As mentioned above, install pyusb by executing "pip install pyusb" and copy the libusb-1,0.dll to the Python27 folder where the python.exe is located I have not tested this myself. Thanks @lucky1! Link to comment Share on other sites More sharing options...
outhere Posted December 30, 2019 Share Posted December 30, 2019 This is the Pin2DMD I have http://vpuniverse.com/forums/topic/3677-pin2dmd-displays-and-some-parts-for-sale/ I unblocked the files I put the ep_desktop_pygame.py in the C:\P-ROC\games\cactuscanyon\ep folder over wrote the one that was in there Put the libusb-1,0.dll in the python 27 folder where the python.exe is located - C:\Python27 I Open a CMD Window ran pip install pyusb And it said all is good But nothing is showing on the pin2DMD ?Thank you @lucky1? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted December 30, 2019 Content Provider Share Posted December 30, 2019 3 hours ago, outhere said: This is the Pin2DMD I have http://vpuniverse.com/forums/topic/3677-pin2dmd-displays-and-some-parts-for-sale/ I unblocked the files I put the ep_desktop_pygame.py in the C:\P-ROC\games\cactuscanyon\ep folder over wrote the one that was in there Put the libusb-1,0.dll in the python 27 folder where the python.exe is located - C:\Python27 I Open a CMD Window ran pip install pyusb And it said all is good But nothing is showing on the pin2DMD ?Thank you @lucky1? Do you run the latest firmware version v3.05 ? If not please upgrade. Link to comment Share on other sites More sharing options...
outhere Posted December 30, 2019 Share Posted December 30, 2019 I was close, I was on firmware version v3.04... Firmware Version v3.05 his working like a charm and looks really nice --- Thank you After you exit the game the image stays on the DMD and I didn't notice any where to turn off the virtual DMD so I moved off screen Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted December 30, 2019 Content Provider Share Posted December 30, 2019 Some improvements in this version - removed the need for a extra palette lookup table - added code to support old RBG panels. Just search for RBG, remove the comment # in the 6 pixel mappings and comment out the RBG mappings above. - added pygame.display.iconify() to hide the display from the desktop. I also successfully tested this code with a discovery based pin2dmd. ep_desktop_pygame.py Maybe @CarnyPriest can update his repo. Link to comment Share on other sites More sharing options...
Content Provider CarnyPriest Posted December 30, 2019 Content Provider Share Posted December 30, 2019 Done. It is branch 'pin2dmd' Link to comment Share on other sites More sharing options...
outhere Posted December 31, 2019 Share Posted December 31, 2019 When I use the new file my pin2DMD is very dim I try it a again now the game will not Load Log 1st file works -- ep_desktop_pygame.py from 12/29/2019 2019-12-30 22:39:54,778 - game.config - WARNING - pyprocgame configuration not found at ./config.yaml. Checking C:\Users\jimbob/.pyprocgame/config.yaml. 2019-12-30 22:39:54,778 - game.config - INFO - pyprocgame configuration found at C:\Users\jimbob/.pyprocgame/config.yaml 2019-12-30 22:39:54,786 - vpcom - INFO - S11 is ...False 2019-12-30 22:39:54,788 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:39:54,795 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:39:54,825 - game.sound - INFO - Initializing sound... 2019-12-30 22:39:55,022 - game - INFO - Loading machine configuration from "cc_machine.yaml"... 2019-12-30 22:39:55,119 - game - INFO - Programming switch rules... 2019-12-30 22:39:55,313 - game - INFO - Programming flipper flipperLwR 2019-12-30 22:39:55,313 - game - INFO - Enabling WPC style flipper 2019-12-30 22:39:55,313 - game - INFO - Programming flipper flipperLwL 2019-12-30 22:39:55,313 - game - INFO - Enabling WPC style flipper 2019-12-30 22:39:56,861 - game - INFO - GameName: cc_13 2019-12-30 22:39:56,861 - game - INFO - SplashInfoLine: Cactus Canyon - Midway/Williams 1998 2019-12-30 22:40:47,243 - vpcom - INFO - PYTHON FAILURE (Visual Pinball Bridge is now broken) 2019-12-30 22:40:47,243 - vpcom - INFO - Exception Name error: video system not initialized 2019-12-30 22:40:47,243 - vpcom - INFO - Traceback (most recent call last): 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\tools\register_vpcom_solenoids_skeleconfig.py", line 298, in RunGame 2019-12-30 22:40:47,243 - vpcom - INFO - self.game.run_loop() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\game.py", line 569, in run_loop 2019-12-30 22:40:47,243 - vpcom - INFO - self.tick() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 89, in tick 2019-12-30 22:40:47,243 - vpcom - INFO - self.show_last_frame() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 114, in show_last_frame 2019-12-30 22:40:47,243 - vpcom - INFO - self.desktop.draw(self.last_frame) 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\ep\ep_desktop_pygame.py", line 504, in draw 2019-12-30 22:40:47,244 - vpcom - INFO - pygame.display.update() 2019-12-30 22:40:47,244 - vpcom - INFO - error: video system not initialized Log 2nd file not working -- ep_desktop_pygame.py from 12/30/2019 2019-12-30 22:38:07,891 - game.config - WARNING - pyprocgame configuration not found at ./config.yaml. Checking C:\Users\jimbob/.pyprocgame/config.yaml. 2019-12-30 22:38:07,891 - game.config - INFO - pyprocgame configuration found at C:\Users\jimbob/.pyprocgame/config.yaml 2019-12-30 22:38:07,901 - vpcom - INFO - S11 is ...False 2019-12-30 22:38:07,903 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:38:07,908 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:38:07,940 - game.sound - INFO - Initializing sound... 2019-12-30 22:38:08,121 - game - INFO - Loading machine configuration from "cc_machine.yaml"... 2019-12-30 22:38:08,220 - game - INFO - Programming switch rules... 2019-12-30 22:38:08,417 - game - INFO - Programming flipper flipperLwR 2019-12-30 22:38:08,417 - game - INFO - Enabling WPC style flipper 2019-12-30 22:38:08,417 - game - INFO - Programming flipper flipperLwL 2019-12-30 22:38:08,417 - game - INFO - Enabling WPC style flipper 2019-12-30 22:38:10,805 - game - INFO - GameName: cc_13 2019-12-30 22:38:10,805 - game - INFO - SplashInfoLine: Cactus Canyon - Midway/Williams 1998 2019-12-30 22:38:10,812 - vpcom - INFO - PYTHON FAILURE (Visual Pinball Bridge is now broken) 2019-12-30 22:38:10,813 - vpcom - INFO - Exception Name IndexError: pixel index out of range 2019-12-30 22:38:10,813 - vpcom - INFO - Traceback (most recent call last): 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\tools\register_vpcom_solenoids_skeleconfig.py", line 298, in RunGame 2019-12-30 22:38:10,813 - vpcom - INFO - self.game.run_loop() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\game.py", line 569, in run_loop 2019-12-30 22:38:10,813 - vpcom - INFO - self.tick() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 89, in tick 2019-12-30 22:38:10,813 - vpcom - INFO - self.show_last_frame() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 114, in show_last_frame 2019-12-30 22:38:10,813 - vpcom - INFO - self.desktop.draw(self.last_frame) 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\ep\ep_desktop_pygame.py", line 493, in draw 2019-12-30 22:38:10,813 - vpcom - INFO - RGB_value = self.colors[bright_value].get_at((2,2)) 2019-12-30 22:38:10,813 - vpcom - INFO - IndexError: pixel index out of range Link to comment Share on other sites More sharing options...
Moderators hawkeyez88 Posted December 31, 2019 Moderators Share Posted December 31, 2019 I have the discovery board version of the pin2dmd, and ensured I was running firmware version 3.05, ran the pip install pyusb, and have a blank dmd. The 2 files are unblocked and in their correct folders. I can see the dmd behind the playfield at 0,0. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted December 31, 2019 Content Provider Share Posted December 31, 2019 13 hours ago, outhere said: When I use the new file my pin2DMD is very dim I try it a again now the game will not Load Log 1st file works -- ep_desktop_pygame.py from 12/29/2019 2019-12-30 22:39:54,778 - game.config - WARNING - pyprocgame configuration not found at ./config.yaml. Checking C:\Users\jimbob/.pyprocgame/config.yaml. 2019-12-30 22:39:54,778 - game.config - INFO - pyprocgame configuration found at C:\Users\jimbob/.pyprocgame/config.yaml 2019-12-30 22:39:54,786 - vpcom - INFO - S11 is ...False 2019-12-30 22:39:54,788 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:39:54,795 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:39:54,825 - game.sound - INFO - Initializing sound... 2019-12-30 22:39:55,022 - game - INFO - Loading machine configuration from "cc_machine.yaml"... 2019-12-30 22:39:55,119 - game - INFO - Programming switch rules... 2019-12-30 22:39:55,313 - game - INFO - Programming flipper flipperLwR 2019-12-30 22:39:55,313 - game - INFO - Enabling WPC style flipper 2019-12-30 22:39:55,313 - game - INFO - Programming flipper flipperLwL 2019-12-30 22:39:55,313 - game - INFO - Enabling WPC style flipper 2019-12-30 22:39:56,861 - game - INFO - GameName: cc_13 2019-12-30 22:39:56,861 - game - INFO - SplashInfoLine: Cactus Canyon - Midway/Williams 1998 2019-12-30 22:40:47,243 - vpcom - INFO - PYTHON FAILURE (Visual Pinball Bridge is now broken) 2019-12-30 22:40:47,243 - vpcom - INFO - Exception Name error: video system not initialized 2019-12-30 22:40:47,243 - vpcom - INFO - Traceback (most recent call last): 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\tools\register_vpcom_solenoids_skeleconfig.py", line 298, in RunGame 2019-12-30 22:40:47,243 - vpcom - INFO - self.game.run_loop() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\game.py", line 569, in run_loop 2019-12-30 22:40:47,243 - vpcom - INFO - self.tick() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 89, in tick 2019-12-30 22:40:47,243 - vpcom - INFO - self.show_last_frame() 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 114, in show_last_frame 2019-12-30 22:40:47,243 - vpcom - INFO - self.desktop.draw(self.last_frame) 2019-12-30 22:40:47,243 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\ep\ep_desktop_pygame.py", line 504, in draw 2019-12-30 22:40:47,244 - vpcom - INFO - pygame.display.update() 2019-12-30 22:40:47,244 - vpcom - INFO - error: video system not initialized Log 2nd file not working -- ep_desktop_pygame.py from 12/30/2019 2019-12-30 22:38:07,891 - game.config - WARNING - pyprocgame configuration not found at ./config.yaml. Checking C:\Users\jimbob/.pyprocgame/config.yaml. 2019-12-30 22:38:07,891 - game.config - INFO - pyprocgame configuration found at C:\Users\jimbob/.pyprocgame/config.yaml 2019-12-30 22:38:07,901 - vpcom - INFO - S11 is ...False 2019-12-30 22:38:07,903 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:38:07,908 - game.config - INFO - pyprocgame configuration found at ./config.yaml 2019-12-30 22:38:07,940 - game.sound - INFO - Initializing sound... 2019-12-30 22:38:08,121 - game - INFO - Loading machine configuration from "cc_machine.yaml"... 2019-12-30 22:38:08,220 - game - INFO - Programming switch rules... 2019-12-30 22:38:08,417 - game - INFO - Programming flipper flipperLwR 2019-12-30 22:38:08,417 - game - INFO - Enabling WPC style flipper 2019-12-30 22:38:08,417 - game - INFO - Programming flipper flipperLwL 2019-12-30 22:38:08,417 - game - INFO - Enabling WPC style flipper 2019-12-30 22:38:10,805 - game - INFO - GameName: cc_13 2019-12-30 22:38:10,805 - game - INFO - SplashInfoLine: Cactus Canyon - Midway/Williams 1998 2019-12-30 22:38:10,812 - vpcom - INFO - PYTHON FAILURE (Visual Pinball Bridge is now broken) 2019-12-30 22:38:10,813 - vpcom - INFO - Exception Name IndexError: pixel index out of range 2019-12-30 22:38:10,813 - vpcom - INFO - Traceback (most recent call last): 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\tools\register_vpcom_solenoids_skeleconfig.py", line 298, in RunGame 2019-12-30 22:38:10,813 - vpcom - INFO - self.game.run_loop() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\game.py", line 569, in run_loop 2019-12-30 22:38:10,813 - vpcom - INFO - self.tick() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 89, in tick 2019-12-30 22:38:10,813 - vpcom - INFO - self.show_last_frame() 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\procgame\game\basicgame.py", line 114, in show_last_frame 2019-12-30 22:38:10,813 - vpcom - INFO - self.desktop.draw(self.last_frame) 2019-12-30 22:38:10,813 - vpcom - INFO - File "C:\P-ROC\games\cactuscanyon\ep\ep_desktop_pygame.py", line 493, in draw 2019-12-30 22:38:10,813 - vpcom - INFO - RGB_value = self.colors[bright_value].get_at((2,2)) 2019-12-30 22:38:10,813 - vpcom - INFO - IndexError: pixel index out of range I did not change any settings for the display. Maybe reverting back to the original settings helps. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted December 31, 2019 Content Provider Share Posted December 31, 2019 11 hours ago, hawkeyez88 said: I have the discovery board version of the pin2dmd, and ensured I was running firmware version 3.05, ran the pip install pyusb, and have a blank dmd. The 2 files are unblocked and in their correct folders. I can see the dmd behind the playfield at 0,0. Did you try the first version of the ep_desktop_pygame.py or the second ? Did you change any display settings ? On 12/29/2019 at 10:55 PM, lucky1 said: ep_desktop_pygame.py 28.82 kB · 11 downloads libusb-1.0.dll 110 kB · 7 downloads Link to comment Share on other sites More sharing options...
Moderators hawkeyez88 Posted December 31, 2019 Moderators Share Posted December 31, 2019 2 hours ago, lucky1 said: Did you try the first version of the ep_desktop_pygame.py or the second ? Did you change any display settings ? I tired them both and the same result. The only thing I changed was the dmd position back to 0,0 because I was using dmdext prior and had moved it. Link to comment Share on other sites More sharing options...

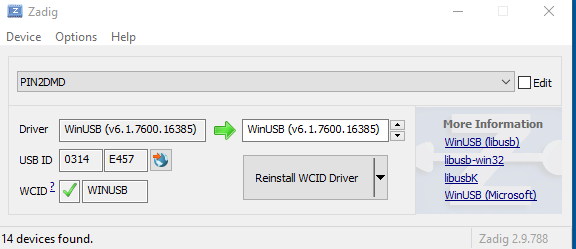

Content Provider lucky1 Posted January 1, 2020 Content Provider Share Posted January 1, 2020 17 hours ago, hawkeyez88 said: I tired them both and the same result. The only thing I changed was the dmd position back to 0,0 because I was using dmdext prior and had moved it. Could it be that you changed your pin2dmd drivers to libusbwin32 instead of the default winusb drivers using the zadig tool? In that case you need libusbk.dll aside of the libusb1-0.dll libusbK.dll Link to comment Share on other sites More sharing options...
Moderators hawkeyez88 Posted January 1, 2020 Moderators Share Posted January 1, 2020 13 hours ago, lucky1 said: Could it be that you changed your pin2dmd drivers to libusbwin32 instead of the default winusb drivers using the zadig tool? In that case you need libusbk.dll aside of the libusb1-0.dll libusbK.dll 82.3 kB · 0 downloads I did have the default installed. I tried the libusbwin32 as well and got no dmd. Link to comment Share on other sites More sharing options...

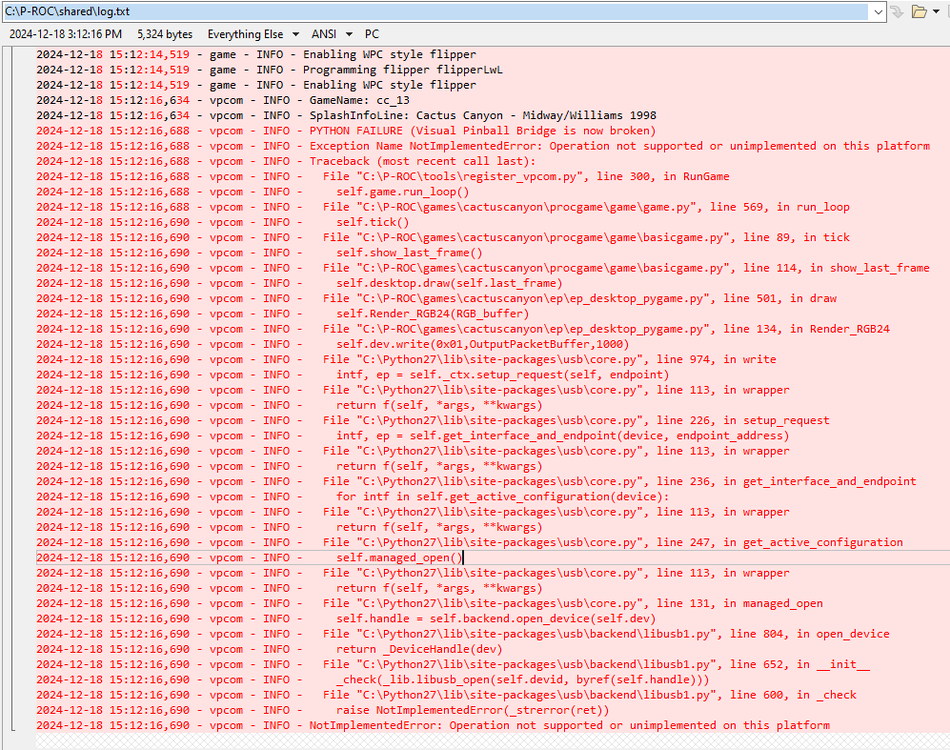

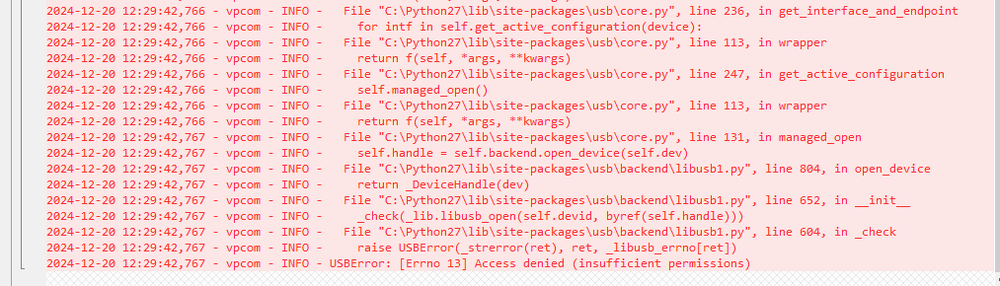

Content Provider lucky1 Posted January 2, 2020 Content Provider Share Posted January 2, 2020 Any error log you can share ? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted January 2, 2020 Content Provider Share Posted January 2, 2020 8 hours ago, hawkeyez88 said: I did have the default installed. I tried the libusbwin32 as well and got no dmd. Any error log you can share ? Maybe try placing a copy of the DLLs in windows/system32 folder. Is your device really saying v3.05 on startup ? Can you make a video ? Link to comment Share on other sites More sharing options...
kds70 Posted January 2, 2020 Share Posted January 2, 2020 Works perfect here ... thank you. Running a pin2dmd (v3.05) via V3 STM32 Board =)) DMD has a purple touch now. Do i miss something ? Greetings, Kai Link to comment Share on other sites More sharing options...
robbo43 Posted January 2, 2020 Share Posted January 2, 2020 7 hours ago, kds70 said: Works perfect here ... thank you. Running a pin2dmd (v3.05) via V3 STM32 Board =)) DMD has a purple touch now. Do i miss something ? Greetings, Kai Kai, I had the same issue, you have RBG panels rather than RGB. From Lucky1 - Just search for RBG in Lucky's ep_desktop_pygame file, remove the comment # in the 6 pixel mappings and comment out the RGB mappings above. You may need to restart vpx after making the change for it to register the change. Cheers Rob Link to comment Share on other sites More sharing options...
