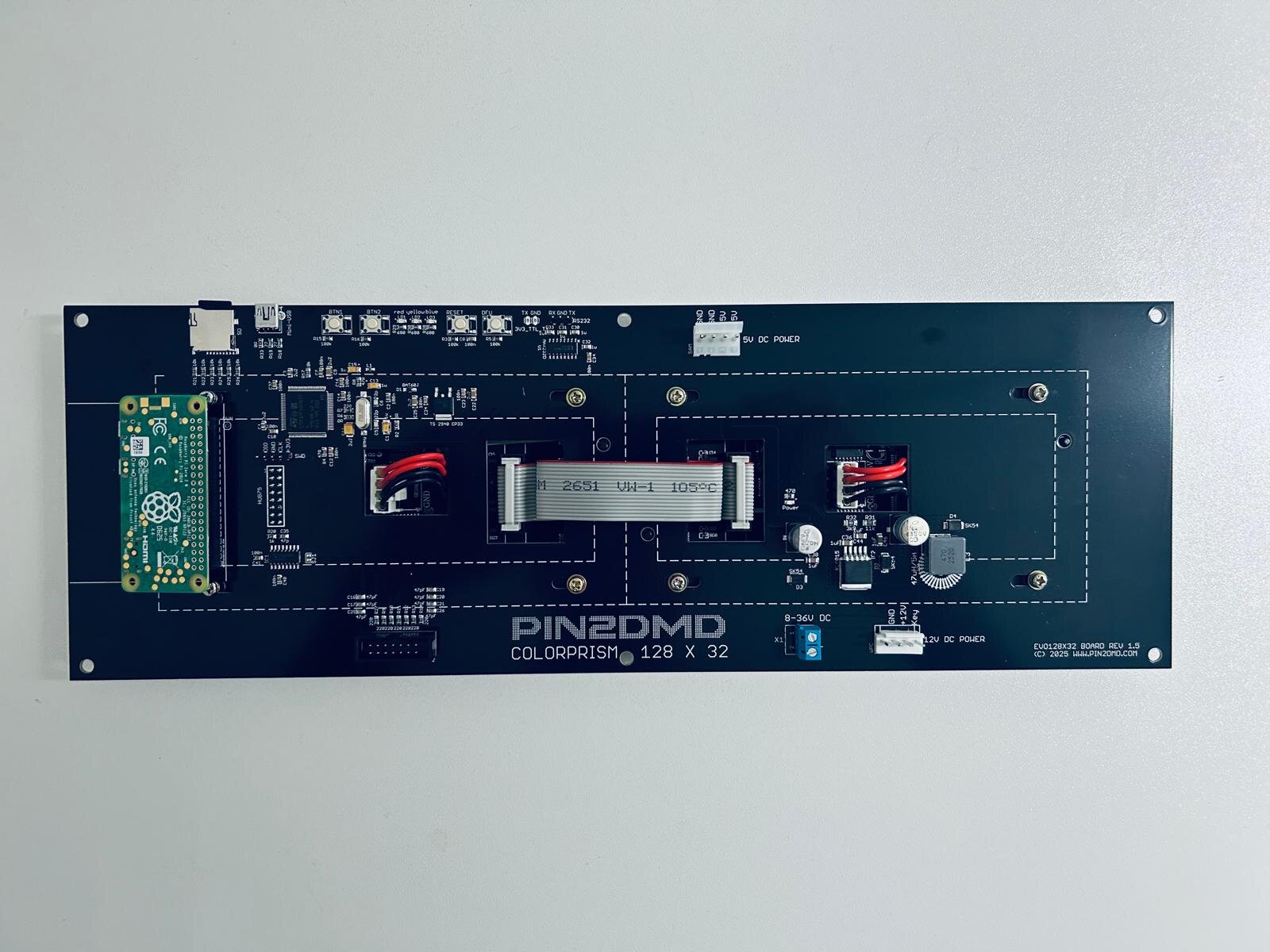

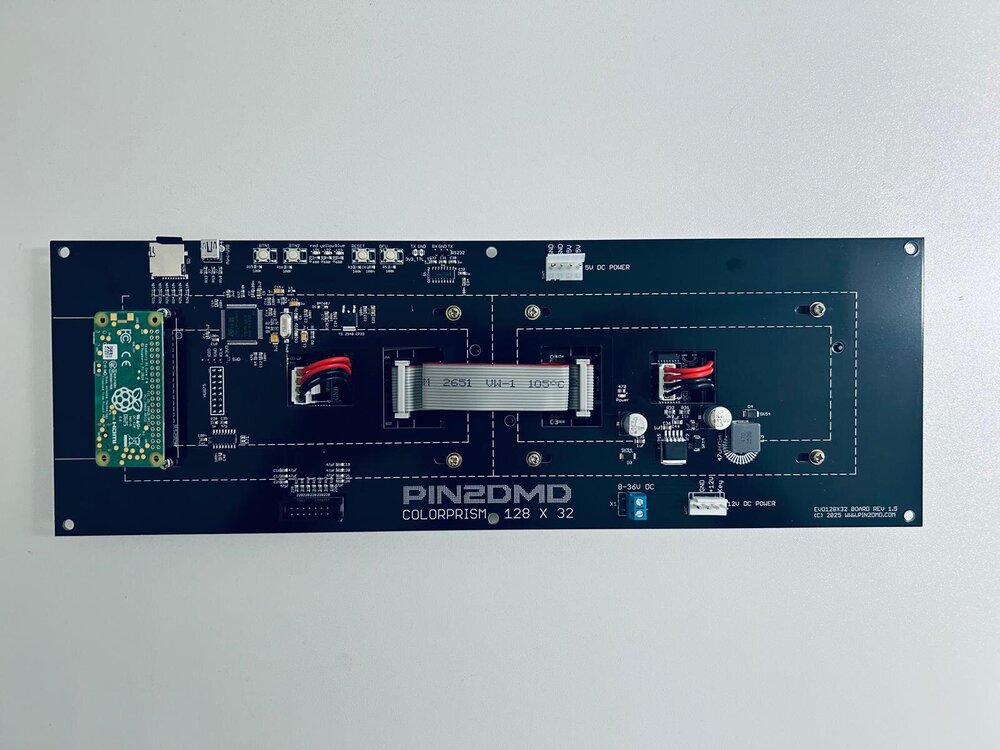

Content Provider lucky1 Posted September 13, 2018 Content Provider Share Posted September 13, 2018 I uploaded the Eagle files and BOM list of the new PIN2DMD EVO128x32 controller board to my github account here https://github.com/lucky01/PIN2DMD/tree/master/hardware/EVO128x32 Technically it is based on the schematics of the Nucleo 429ZI board, the V4 shield and the XL4015 DC-DC converter but all on a single PCB which also is used as a mounting plate for the LED panels. I designed it for my private use and ordered a test run from a chinese manufacturer called pcbway. They offer turnkey manufacturing which means that they also source the parts and fully assembles the pcbs. Including tax and shipping it cost me 700 Euro which is 70 Euro for each pcb and almost the same price as the parts needed for the V4 shield, the Nucleo board and the acrylic frame. It can use 12V or 5V as a a power source. The eagle files are free to use for everyone who wants to organize a group buy or sell them in a shop because I still don´t sell any hardware. Here are some pictures of my testboard. Link to comment Share on other sites More sharing options...
dpannell2 Posted September 13, 2018 Share Posted September 13, 2018 Wow, very impressive. Great Job! Link to comment Share on other sites More sharing options...
SteveNZ Posted September 14, 2018 Share Posted September 14, 2018 That is very nice. Thank You Lucky1 Link to comment Share on other sites More sharing options...
SteveNZ Posted September 14, 2018 Share Posted September 14, 2018 Just looking at the power connectors for the LED displays. Are you soldering the wires onto the board after manufacture at PCBWay? If yes, then wouldn't it be better to have suitable through holes in the PCB to be able to solder the wires with a better physical connection? If no, please provide a photo of the other side of the PCB (with the LED displays removed). Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted September 14, 2018 Author Content Provider Share Posted September 14, 2018 No time to remove the panels to make a picture but you can have a look at the eagle files. There are solder pads on the other side. I don´t see a big advantage in throughholes for this. Link to comment Share on other sites More sharing options...
Content Provider malenko Posted September 14, 2018 Content Provider Share Posted September 14, 2018 That looks epic as fuck, and right after I ordered 2 more of the old ones :/ Link to comment Share on other sites More sharing options...
mcer Posted September 14, 2018 Share Posted September 14, 2018 EXXCCCELLENT JOB!! Link to comment Share on other sites More sharing options...
tjc02002 Posted September 14, 2018 Share Posted September 14, 2018 This is freakin sweet!!! Question, I’ve never soldered surface mount but I’ve seen videos. How would you propose to assemble this? Are there pcb manufacturers that could do the surface mount soldering? Link to comment Share on other sites More sharing options...
tjc02002 Posted September 15, 2018 Share Posted September 15, 2018 2 hours ago, tjc02002 said: This is freakin sweet!!! Question, I’ve never soldered surface mount but I’ve seen videos. How would you propose to assemble this? Are there pcb manufacturers that could do the surface mount soldering? I read your whole post this time! I see you got them assembled from pcb way. Did they assemble everything on the big pcb and then you just added the led panels and cables and then connect the power wires? If everything works well, could you possibly set up a duplicate order for other people just to buy direct from them fully assembled? Link to comment Share on other sites More sharing options...
Rappelbox Posted September 15, 2018 Share Posted September 15, 2018 I already placed an order They’ll arrive within the next 2-3 weeks!https://germangamingsupplies.com/PIN2DMD-Display-Evolution-activated Link to comment Share on other sites More sharing options...
fly Posted September 18, 2018 Share Posted September 18, 2018 great job Lucky, I have a question on how to download an eagle file from github ?? and the second question, how to program the device ?? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted September 18, 2018 Author Content Provider Share Posted September 18, 2018 7 minutes ago, fly said: I have a question on how to download an eagle file from github ?? Right click on the RAW button and select "Save link as" 7 minutes ago, fly said: and the second question, how to program the device ?? USB DFU mode or ST-Link Link to comment Share on other sites More sharing options...
fly Posted September 18, 2018 Share Posted September 18, 2018 Is the controller board, apart from the software, different in construction to stern, williams etc. ?? Thank you Link to comment Share on other sites More sharing options...
fly Posted September 20, 2018 Share Posted September 20, 2018 I would be grateful if someone posted a photo of the control board without the display mounted Link to comment Share on other sites More sharing options...
dpannell2 Posted September 22, 2018 Share Posted September 22, 2018 On 9/18/2018 at 11:31 AM, fly said: Is the controller board, apart from the software, different in construction to stern, williams etc. ?? Thank you The board is functionally the same as the V4 shield mounted to the Nucleo STM32 dev. board. The same unit can be used for Stern, Williams, Data East, Sega, etc. I don't believe anyone other than Lucky1 actually has one of these yet. If I'm mistaken, I'm sure someone will chime in shortly. Link to comment Share on other sites More sharing options...
Rappelbox Posted September 22, 2018 Share Posted September 22, 2018 I have some ordered and already some in stock! Link to comment Share on other sites More sharing options...
Dany Posted February 1, 2019 Share Posted February 1, 2019 Hello lucky 1 I was thinking of making me do the cards evo 128x32 I wanted to understand once made and mounted the RGB panels how to program them, I wanted to know if it is a simple or complex thing and where I can find the program to insert, if you need to unlock them as you did with those that mounted the nucleus and Schield thanks also for all the work you do. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted February 2, 2019 Author Content Provider Share Posted February 2, 2019 On 9/15/2018 at 4:10 AM, tjc02002 said: If everything works well, could you possibly set up a duplicate order for other people just to buy direct from them fully assembled? Programming is done through USB DFU mode using this tool https://www.st.com/en/development-tools/stsw-stm32080.html and the nucleo dfu firmware from github. DFU mode is activated by holding down the boot button during power on. Activation process is the same. Link to comment Share on other sites More sharing options...
KJS Posted March 4, 2019 Share Posted March 4, 2019 Hi all. Very new to this. Can anyone point me in the direction to buy the latest and greatest assembled displays for the actual pinball machines getaway and t2? I am wanting to eventually customise some of the wording and graphics. Colourising is not priority but would be an added bonus! I've contacted GGS but they have no stock and have been warned by users on pinside to avoid them? I have no experience either way. Thanks for any help. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted March 4, 2019 Author Content Provider Share Posted March 4, 2019 It would be helpful to know where you are from. Contact @dpannell2 if located in the US for example. Link to comment Share on other sites More sharing options...
KJS Posted March 4, 2019 Share Posted March 4, 2019 Thank you I have sent him a mail! I am in Australia. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted March 4, 2019 Author Content Provider Share Posted March 4, 2019 I think @OzStick from Australia is not using the latest circuit design but he may also help you. Link to comment Share on other sites More sharing options...
dpannell2 Posted March 27, 2019 Share Posted March 27, 2019 I bought some EVO boards, they look and work great! I'm very impressed that Lucky1 was able to create this board based on the Nucleo and V4 shield. It's a great solution and eliminates the need for a frame as well. Thanks Lucky1! Here is my first display. I have plenty of extras and can make more, send me a PM if you are interested in one. Link to comment Share on other sites More sharing options...
ArcadeGamer Posted March 29, 2019 Share Posted March 29, 2019 Are these only for actual pins or would they also serve as a color LCD replacment for a Vpin using dmddevice.dll and altcolor folders? Also, would the handle higher resolution pins like Maverick? Thanks Link to comment Share on other sites More sharing options...
outhere Posted March 29, 2019 Share Posted March 29, 2019 Also See Post On Next Page They are for Visual pinball or Real pin's Would they also serve as a color LCD replacment for a Vpin using dmddevice.dll and altcolor folders? ---Yes But they will not show image like you would see in Back to the future or Tom and Jerry on a LCD That's why have one of each https://www.vpforums.org/index.php?showtopic=39093#entry393762 Link to comment Share on other sites More sharing options...
