Backglass hidden behind score screen in 3 screen B2S configuration (only in a few tables) [Solved]

[MadmaxFR]

Hi everyone!



I have a strange problem only a few tables.

For example with "Indiana Jones The Pinball Adventure (Williams 1993)" or "The Machine (Bride of Pinbot) Williams 1991".



First, I prefer to specify that all my other tables works well (about 100 installed) and i use :

Screen 1 : Playfield 4k

Screen 2 : BackGlass (1920x1080)
Screen 3 : DMD (1920x1080)

Windows 10

VPX 10.7.2



So... in my example i'm testing :

Table :

Backglass :

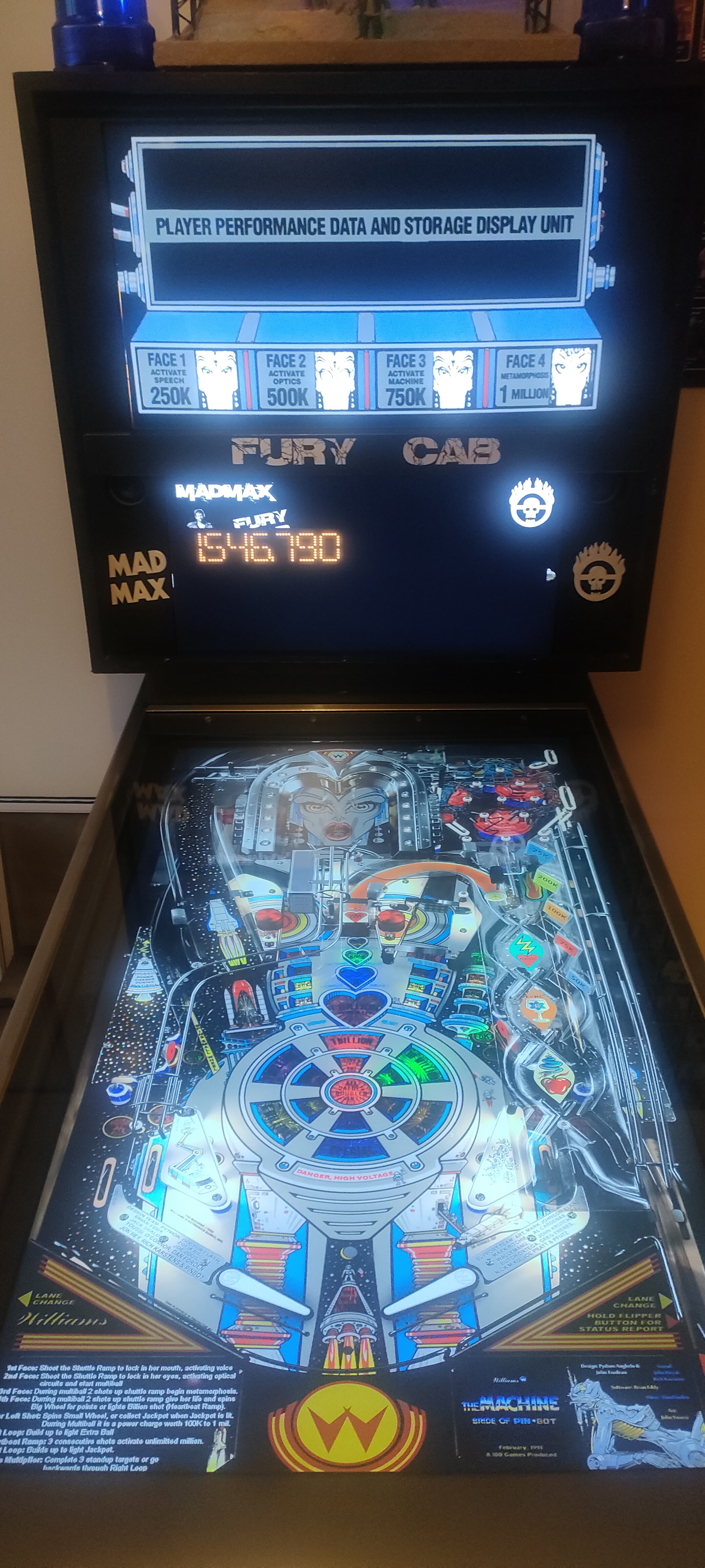

Firs case, if i use the 2 screens version "Pinbot-2SRC" --> my backglass and the "score" are in the same screen (2) and and I can see the score only on the DMD.





Second case, if i use the 3 screen version "Pinbot-3SRC" --> my backglass and the "score" are in the same screen BG and and I can see the score in the DMD and in the Backglass



In the 2 cases the backglass is hidden on the backglass screen behind the score.

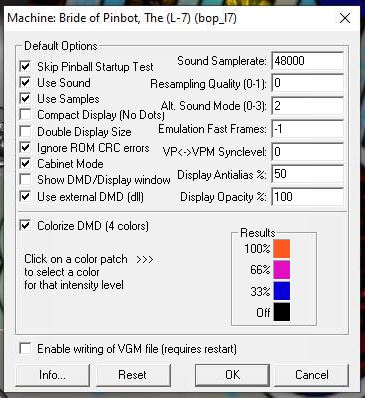

If i hit F1 i have this configuration :





Do you have any idea what's wrong?
Thanks for helping



[Tikimaster]

4 minutes ago, MadmaxFR said:

Do you have any idea what's wrong?

Could you please post the res file, that config is using? Maybe some the 3 Screen Users can see whats the problem.



[MadmaxFR]

13 minutes ago, Retsamikit said:

Could you please post the res file, that config is using? Maybe some the 3 Screen Users can see whats the problem.



ScreenRes.txt :

3840
2160
1920
1080
3
0
0
1920
1080
2
0
0



BUT it's not my screenRes (i think)  because the other tables works great, for example :





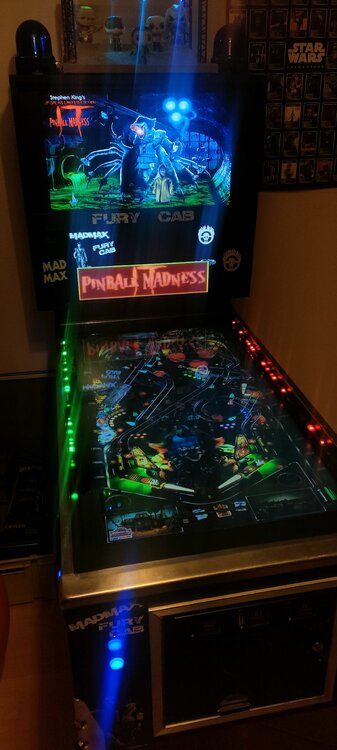

The Backglass is well placed on screen 2.

[Tikimaster]

yep @MadmaxFR sounds unlogical, but so a specialist for 3 Screens has all infos possible. I am only a desktopper with no experience on cab setting but, your settings seem to be ok for me.

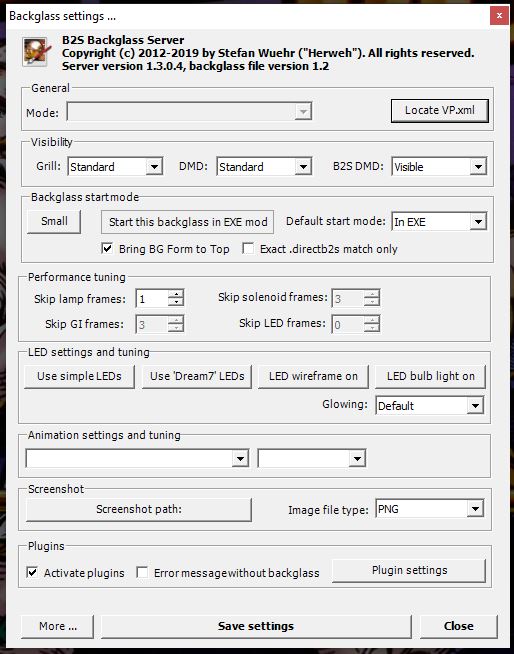

Can you please post a pic of your b2s server settings. (right click on backglass)

[MadmaxFR]

Et voilà !



[Tikimaster]

mmh. what if you set Grill and DMD from standard to hidden?

[ashleyb]





For the Pinbot rom try unchecking “use external dmd” and check “show dmd/display window” and restart the table.  Those are the settings I use for most alphanumeric backglasses and just use freezy (external dmd) for proper full on dot matrix dmds.



Might also be worth giving hauntfreaks full dmd backglass a try they work really well.



If you’re still having issues follow the instructions on this post for correctly setting up the screenres.txt file.  There’s also a link in here for the useful screenres identifier tool.





[MadmaxFR]

@Retsamikit i try and it's the same problem



@ashleyb

- For the Pinbot rom try unchecking “use external dmd” and check “show dmd/display window” and restart the table. <<-- don't work ;(

- for the other backglass i tryu and... here the result ! ;(



I'll try the ScreenRes Identifier Tool later and i will tell you if it works (I have little hope because all the other tables work).





thanks to you two !



[ashleyb]

46 minutes ago, MadmaxFR said:

@Retsamikit i try and it's the same problem



@ashleyb

- For the Pinbot rom try unchecking “use external dmd” and check “show dmd/display window” and restart the table. <<-- don't work ;(

- for the other backglass i tryu and... here the result ! ;(



I'll try the ScreenRes Identifier Tool later and i will tell you if it works (I have little hope because all the other tables work).





thanks to you two !



I think your screenres file is incorrect because the dmd is being placed where your backglass artwork should be from what I can see.  I think you need to add the dmd offset x,y positions to the screenres file.  Follow the last link on my last reply and that should help.



I think your screenres file should be as follows,



ScreenRes.txt :

3840
2160
1920
1080
3
0
0
1920
1080
1921 <- try this value (assuming your backglass resolution value  is correct)
0
0

[MadmaxFR]

@ashleyb OMG ... IT's working !!!!



I try B2S_ScreenResIdentifier without believing it I admit it... and it's working !!!!



My new ScreenRes.txt :

3840

2160

1920

1080

3

0

0

1925

927

1920

2

0





THANKS A LOT !!!
