Hi Forum



I have bought a pin2dmd for my Williams Indiana Jones pinballmachine and I can´t get the display to work.

The display is easy to install in the pinballmachine and 12v power, but I can´t get the firmware installed or anything ?

I have try and follow the installation on pin2dmd with a SD micro card but nothing happens.

When I turn on power the display show "PIN2DMD and BALLY/WILLIAMS"

I can reset the display and hold button 1 down and display show "CONFIG" but nothing happens hvem i press the buttons

Anyone who can help ?

My display is EVO128x32



Best regards

Henrik


  • Content Provider
lucky1 Collaborator

lucky1

Posted
  • Content Provider
Posted

Did you check the orientation of the ribbon cable ?

Any of the 3 LEDs (blue/red/orange) showing something ?

If not try turning the ribbon cable connector 180 degrees.



hkkk

hkkk

Posted
  • Author
Posted

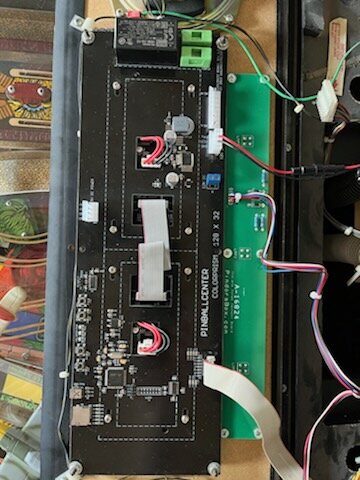

Yes ribbon is correct orientated, the red and blue led flash on back of display

I have try to rotate ribbon and same problem.



  • Content Provider
lucky1 Collaborator

lucky1

Posted
  • Content Provider
Posted

Could you please make a picture of your WPC DMD controller and reset the pin2dmd to defaults in the onscreen menu and then save the settings ?
