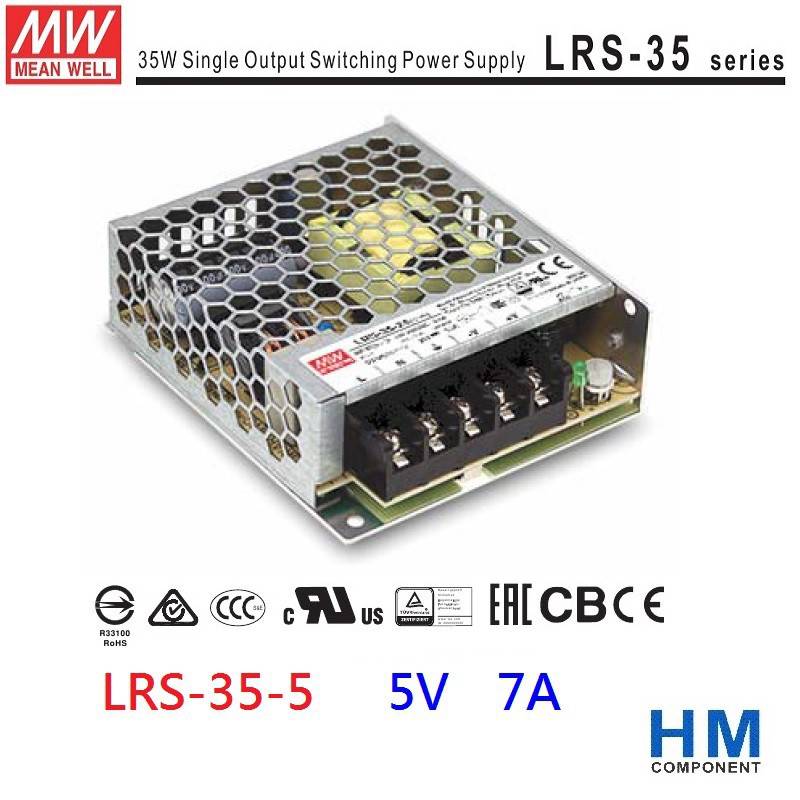

andybroomstick Posted December 7, 2020 Posted December 7, 2020 Installed (baywatch) have background pixel noise on display, I have wrong colours in attract mode, sonic is green instead of blue, I'm connected with 4pin molex to 18v connector, I have shortened ribbon cables as well and I'm running latest firmware, would or should it be powered from a ext switching power source like the Meanwell LRS35-5, if so how do you connect to display and machine. I read on pinside that pixel noise on screen can be caused by power, just worried about damaging things. Any guidance would be much appreciated thanks Andy Sent from my CMR-W09 using Tapatalk
Content Provider lucky1 Posted December 7, 2020 Content Provider Posted December 7, 2020 Seems lik you have the same problems like here https://pinside.com/pinball/forum/topic/pin2dmd-xl-issue-in-baywatch#post-5979432 Please check your resistor R32 and your RGB sequence. Should have no pixel noise and the right colors in the end no matter which power source you use.
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 Seems lik you have the same problems like here https://pinside.com/pinball/forum/topic/pin2dmd-xl-issue-in-baywatch#post-5979432 Please check your resistor R32 and your RGB sequence. Should have no pixel noise and the right colors in the end no matter which power source you use.Cheers will check that out lucky1 [emoji106]Sent from my SM-G965F using Tapatalk
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 Installed (baywatch) have background pixel noise on display, I have wrong colours in attract mode, sonic is green instead of blue, I'm connected with 4pin molex to 18v connector, I have shortened ribbon cables as well and I'm running latest firmware, would or should it be powered from a ext switching power source like the Meanwell LRS35-5, if so how do you connect to display and machine. I read on pinside that pixel noise on screen can be caused by power, just worried about damaging things. Any guidance would be much appreciated thanks Andy Sent from my CMR-W09 using Tapatalk Andy Sent from my SM-G965F using Tapatalk
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 Seems lik you have the same problems like here https://pinside.com/pinball/forum/topic/pin2dmd-xl-issue-in-baywatch#post-5979432 Please check your resistor R32 and your RGB sequence. Should have no pixel noise and the right colors in the end no matter which power source you use.Lucky1 my r32 resistor on my panel is 3901 is this the right one as the one on pinside had 4701 printed on it thanks for your help AndySent from my SM-G965F using Tapatalk
Content Provider lucky1 Posted December 7, 2020 Content Provider Posted December 7, 2020 For the latest batch of panels from china the resistor needs to be replaced to get rid of the pixel noise.
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 For the latest batch of panels from china the resistor needs to be replaced to get rid of the pixel noise.OK thanks lucky1 will order 4701 resistorSent from my CMR-W09 using Tapatalk
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 For the latest batch of panels from china the resistor needs to be replaced to get rid of the pixel noise.Sorry to be a pain but which 4 digit smd 4701 do I need to order pleaseSent from my CMR-W09 using Tapatalk
andybroomstick Posted December 7, 2020 Author Posted December 7, 2020 Sorry to be a pain but which 4 digit smd 4701 do I need to order pleaseSent from my CMR-W09 using TapatalkThin or thick film and voltage, I'm new to all this sorry. Sent from my CMR-W09 using Tapatalk
Content Provider lucky1 Posted December 8, 2020 Content Provider Posted December 8, 2020 According to the BOM.XLS on github 1206
andybroomstick Posted December 8, 2020 Author Posted December 8, 2020 Thank you for your great supportSent from my SM-G965F using Tapatalk
