12v power tap solution for WhiteStar Sega/Data East/Stern Evo install

[WolNielsen]

Thank you, I will see what they say

[fly]

 connect to J16 ??

[Rene368]

2 hours ago, fly said:

 connect to J16 ??

For Data East CN6.

For sega Whitestar and Stern SAM J16.



Double check orientation.



-René

[bushav]



Anyone have an extra breakout board they are willing to sell me?  I like this design but don't need 5 for my Lethal Weapon 3 project



Lane

[Terranigma]

7 hours ago, bushav said:



Anyone have an extra breakout board they are willing to sell me?  I like this design but don't need 5 for my Lethal Weapon 3 project



Lane

I have some but postage will probably kill the savings.



@dzorbas May have some left but you’d have to double check with him.

[bushav]

1 hour ago, Terranigma said:

I have some but postage will probably kill the savings.



@dzorbas May have some left but you’d have to double check with him.

Ok. Thanks. The connectors are on back order at Digi Key and Mouser. Estimated six weeks wait.

[bushav]

I just placed an order for five boards from PCBWay.  Estimating a one week delivery after 3 days of production.  I also ordered the BOM components from DigiKey.  DigiKey (and Mouser) have one of the connectors on back order and it will be middle of October estimated delivery.  I only need one of these five boards.  If anyone needs a board let me know I have four available once I receive all the components and assemble.  It looks like they will be $15 plus shipping (estimate).  I prefer shipping to USA only to cut down on the hassle factor.  Sidenote:  I am a pilot and not an electronics supplier so flexibility and patience please.

[dzorbas]

On 8/25/2021 at 8:16 AM, bushav said:

Ok. Thanks. The connectors are on back order at Digi Key and Mouser. Estimated six weeks wait.

Could have helped you out as I still have a bunch with all the necessary components. Not that I'm trying to selling them individually as they get shipped when I sell a display. I'm in Canada so sending one your way wouldn't have been an issue.



Looks like you are good at this point.

[bushav]

8 hours ago, dzorbas said:

Could have helped you out as I still have a bunch with all the necessary components. Not that I'm trying to selling them individually as they get shipped when I sell a display. I'm in Canada so sending one your way wouldn't have been an issue.



Looks like you are good at this point.

Thanks for the offer. I’d have snagged one. However I enjoy the process of building up something new so no big loss.

[bushav]

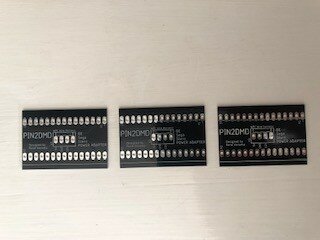

I just received my five boards from PCBWay.  I have three extra.  I anyone needs 1 to 3 boards I will mail to you for $8 plus shipping.  I have the components to build the boards up on order.  However the connectors are back ordered until middle of October.  If you want a complete board and can wait I will be glad to build it up and ship.  Cost will increase of course.

[bushav]

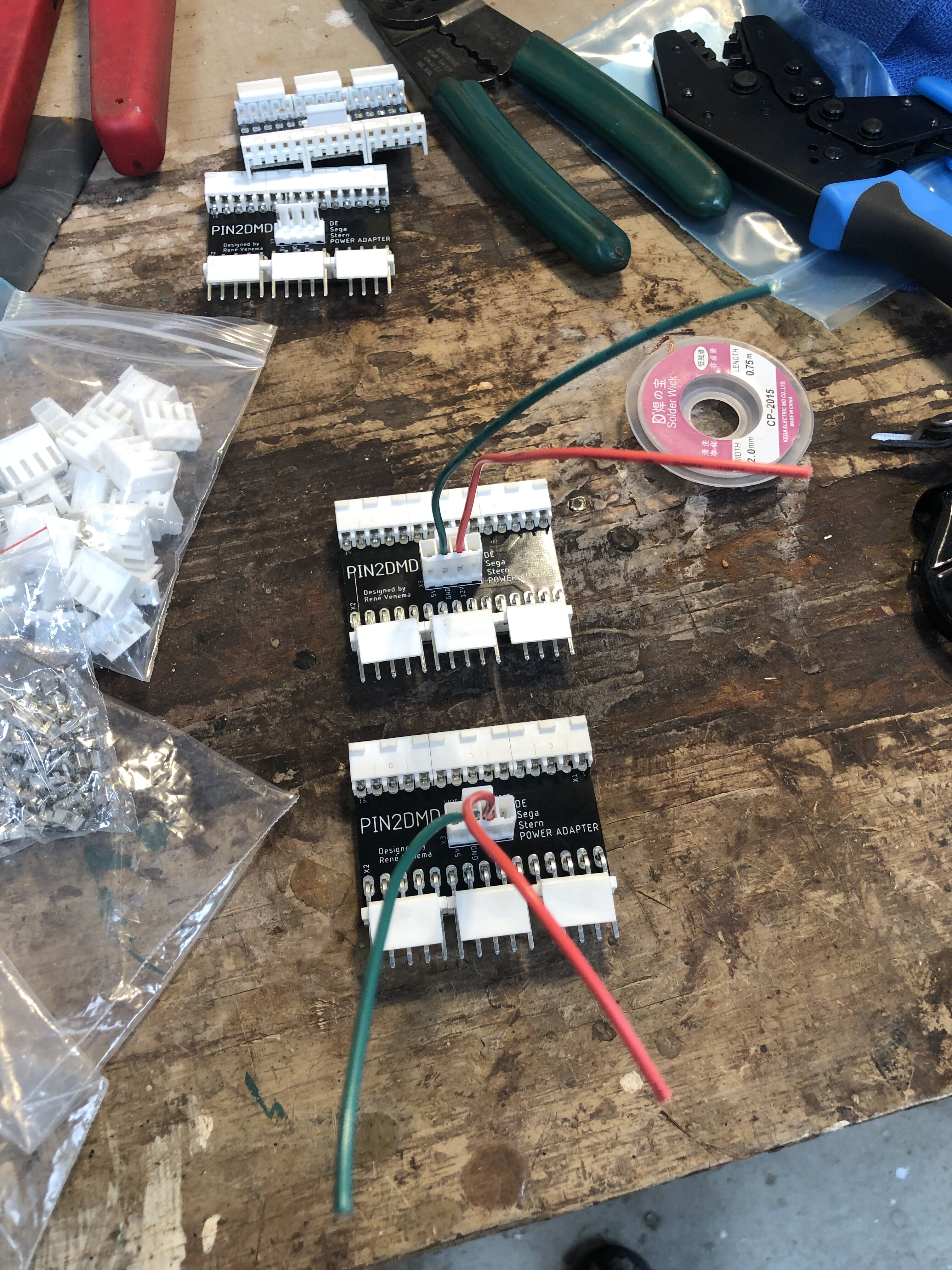

I’ve got a few built up and available for $15 plus shipping. These are left over from the minimum order I was required to place.

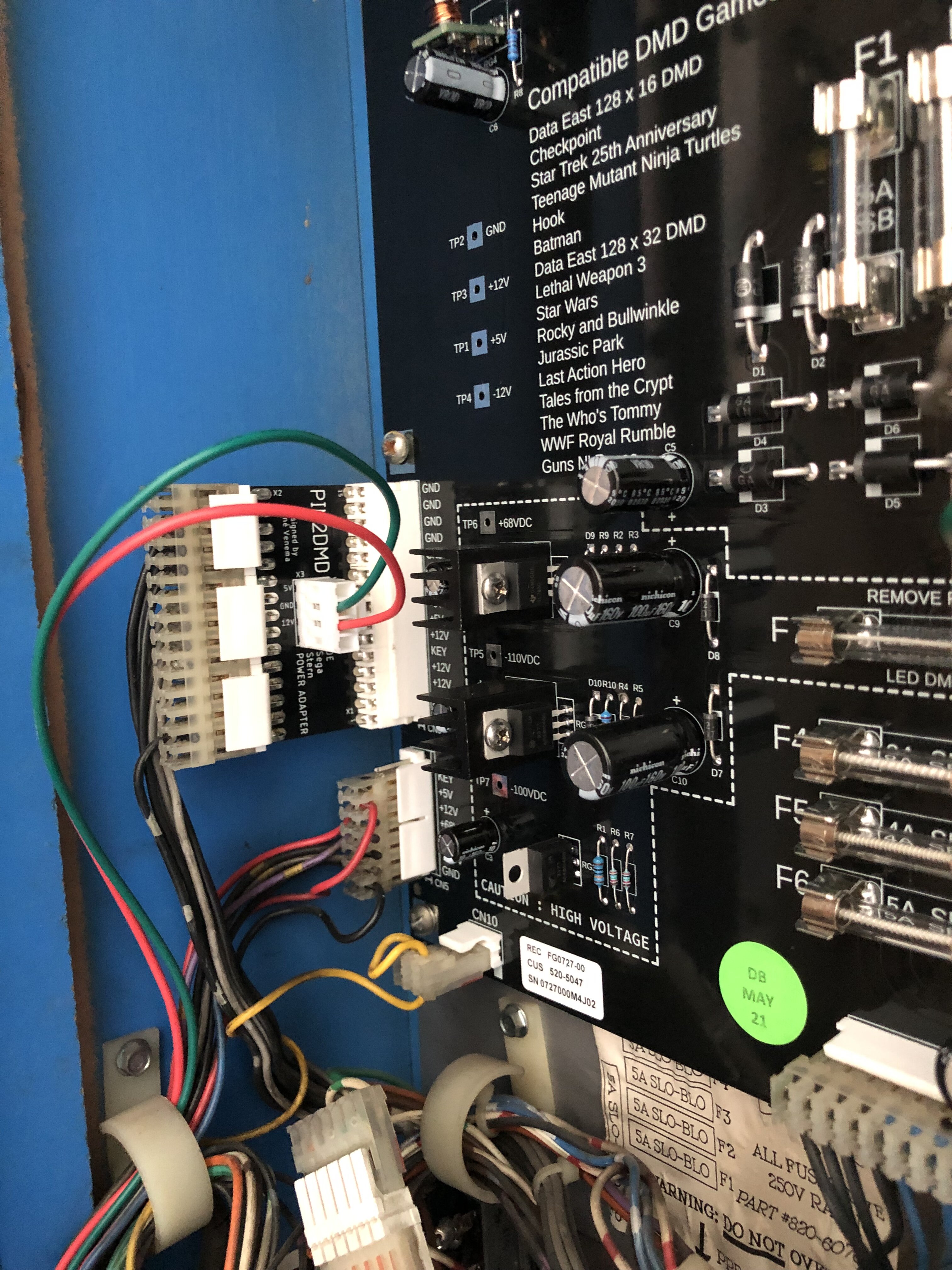

The board works great for tapping 12 and 5 volts.

[trueno92]

Nice work!! This looks great and should prove to be more reliable than cable crimping as it sometimes can lose the -12v.  Dont ask how i know!!

[MCtrickyD]

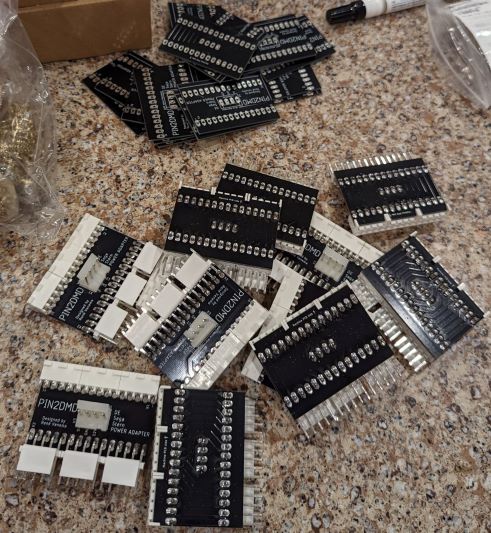

I have extra DE/Sega power taps/adapters for sale in the US if anyone is looking. I ended up making a larger lot than I needed because it was a better value to buy in larger volume.



$15 per assembled adapter

$9 for unassembled adapter (includes PCB and connectors)

$5 for power cable, made using crimp and stuff connectors and 18 gauge wire, tell me you length preference and what connectors/keys you want

$4.50 for USPS first class shipping (will not ship outside of the US) for up to 5 adapters



PM me if you want one (or more...)
