2020 profile mini pinball

[Reggie60]

Hi all,

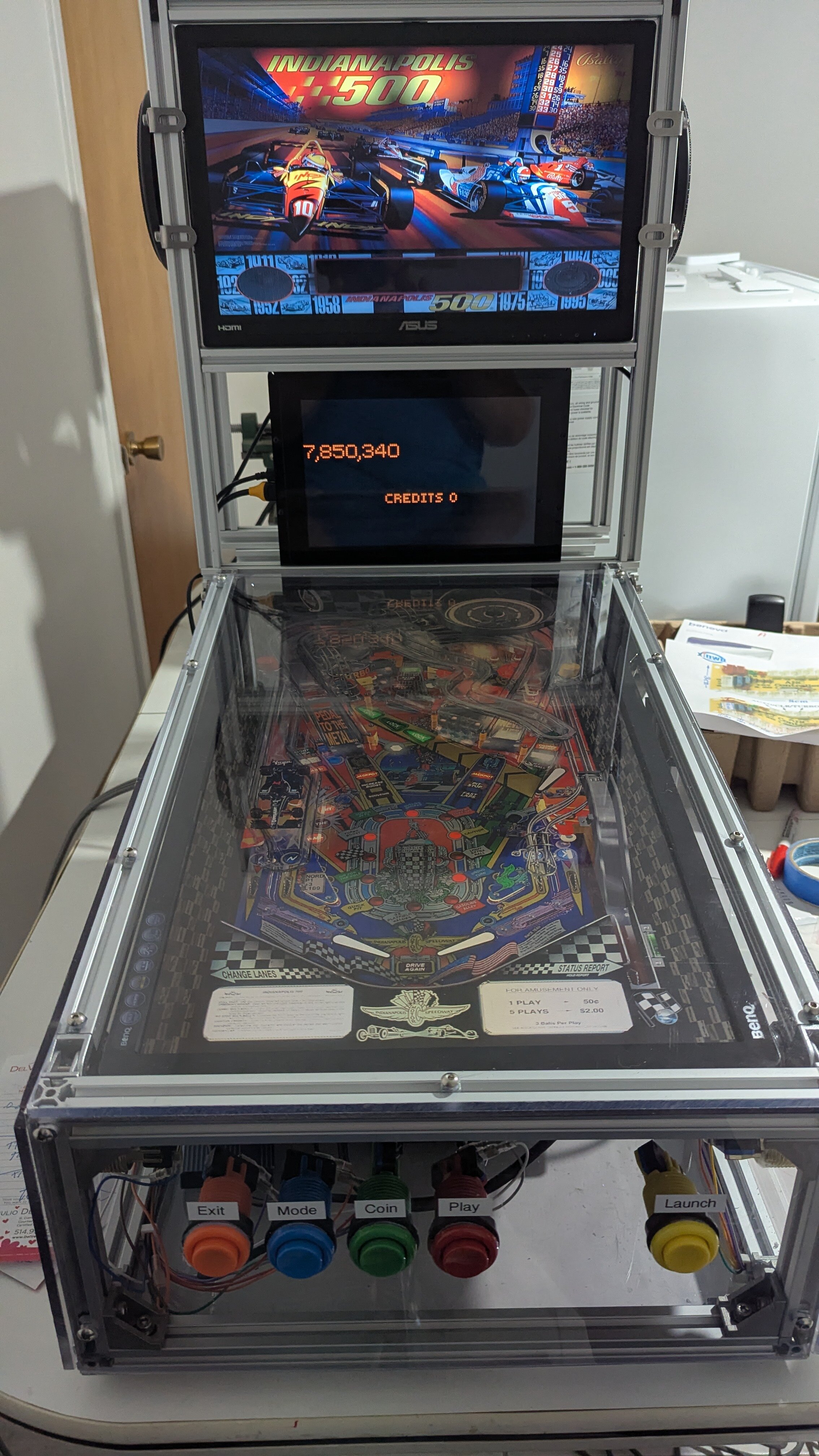

            i have decided to do a mini pinball out of 2020 aluminum profile. I used an  old monitor and old laptop that was not in used anymore into that build.



Playfield 24" Benq monitor

Backglass 15.6" Asus Vt68H

DMD 10.1" Waveshare touch screen

Old laptop Acer Predator (have to remove the screen)

Power bar

9 arcade buttons

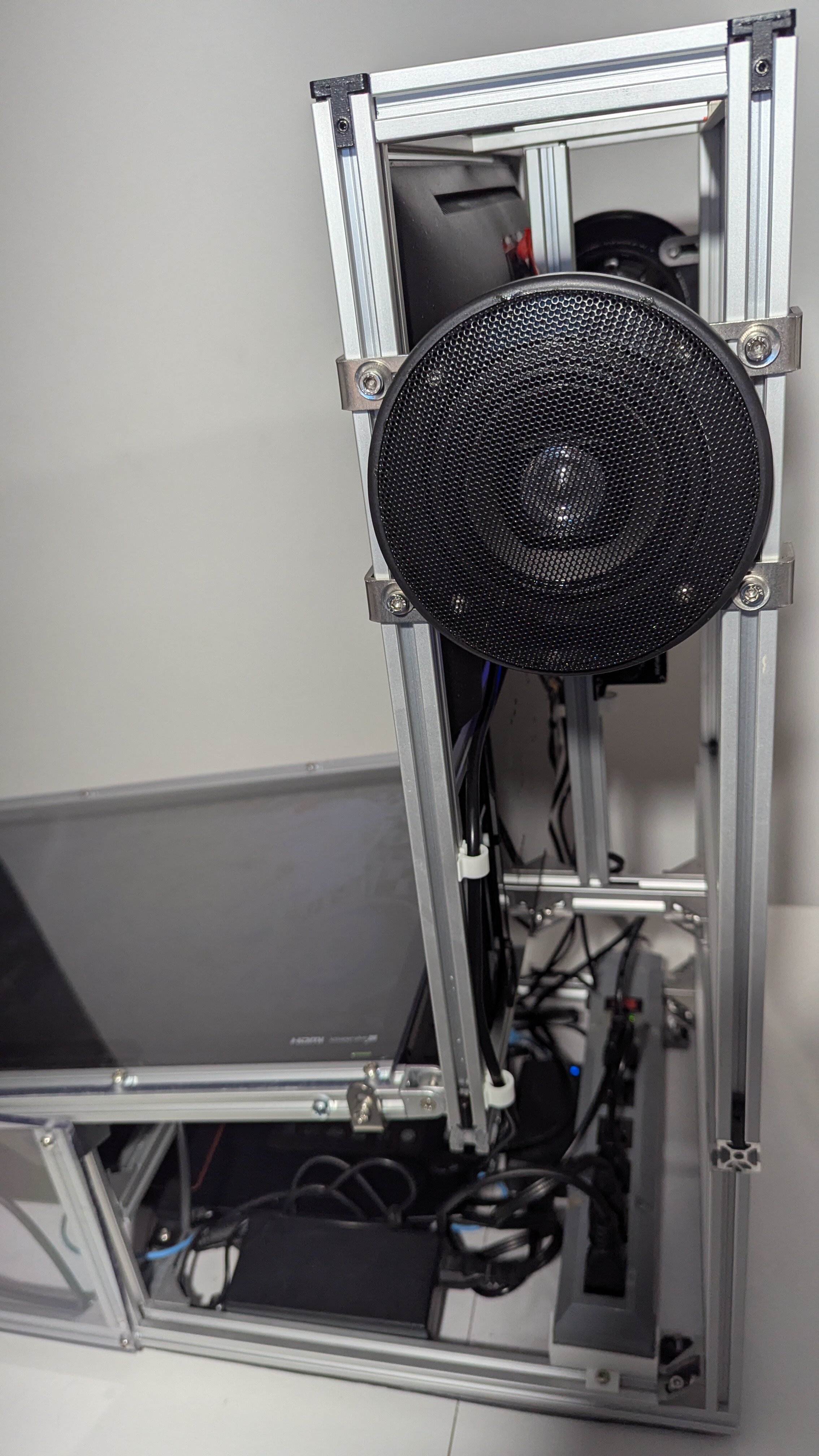

2 speakers with amplifier

4 lexan panels

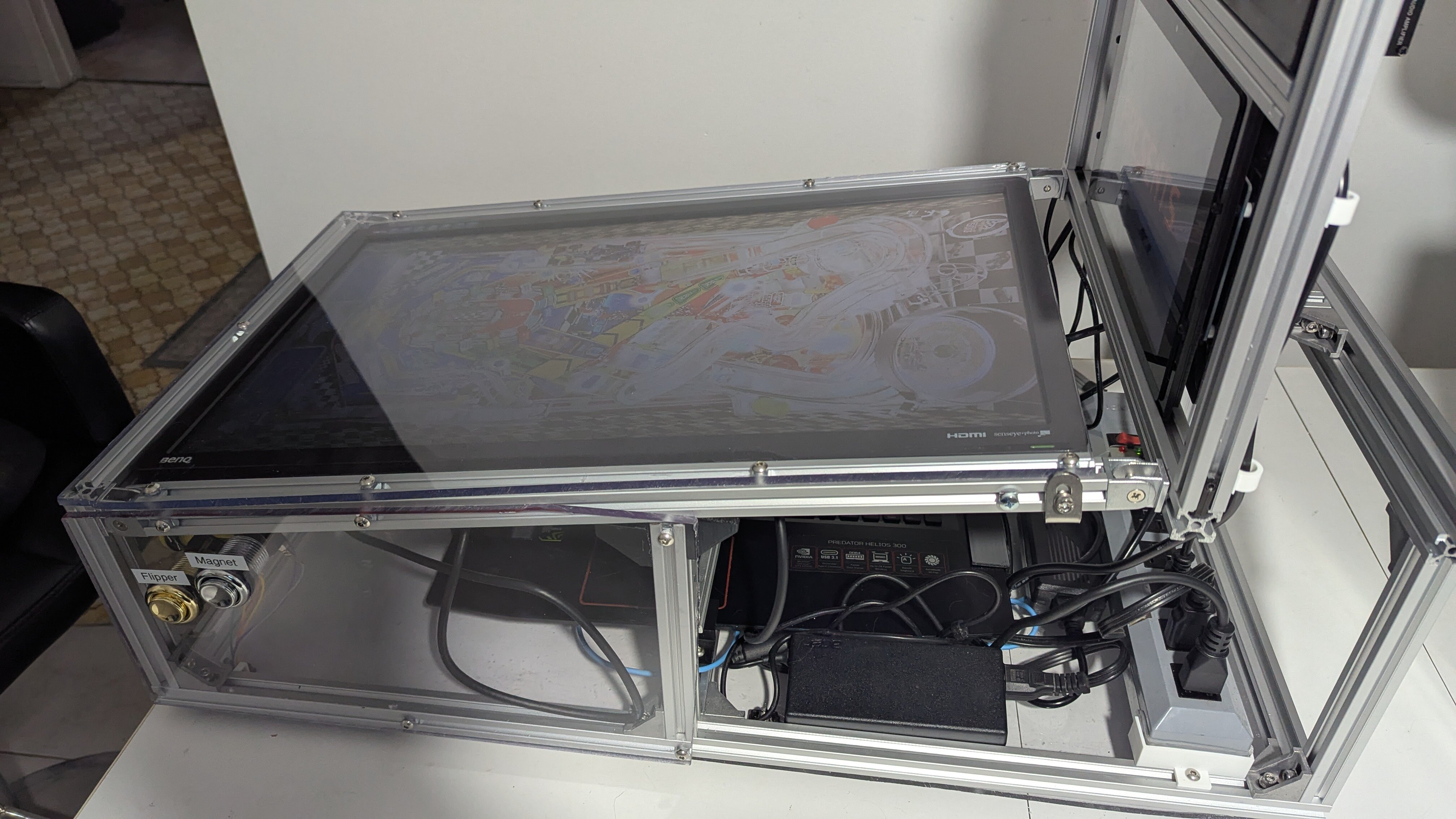

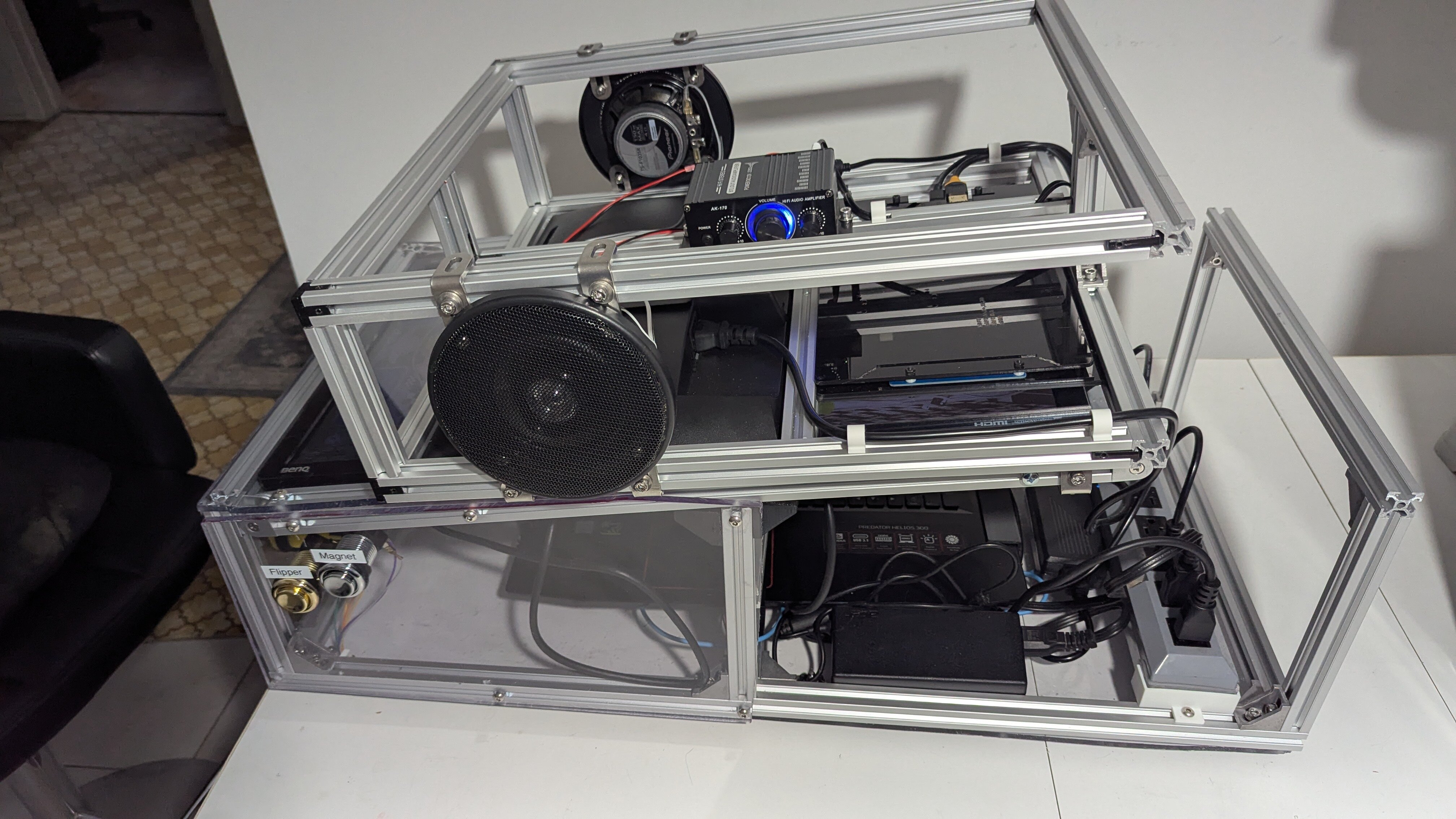

The top box can be remove or closed like in the picture.



Total weight 50 lbs.

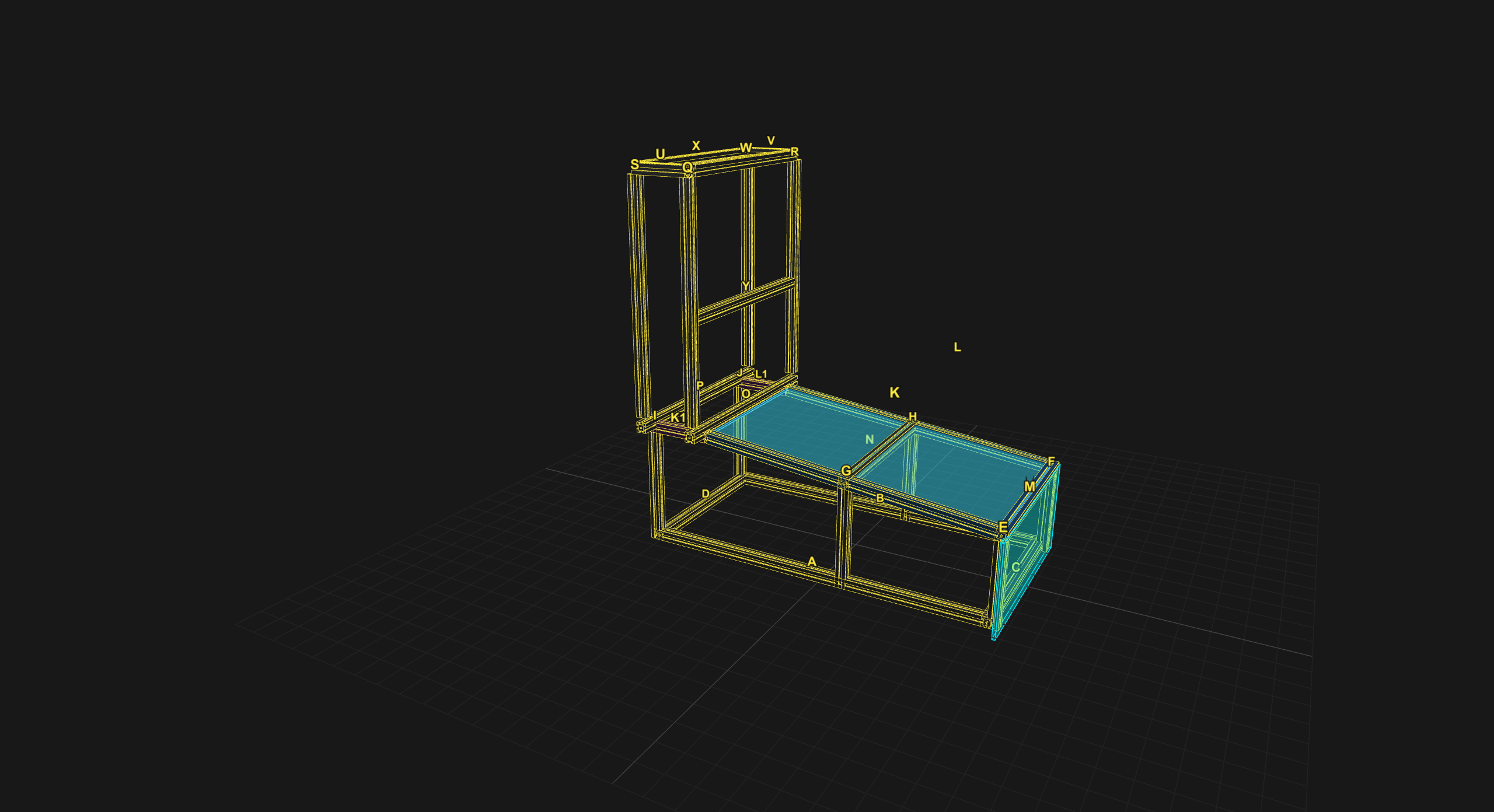

Also with Claude AI last image is ai design according to my requirement.



I'm not finish configuring all the pinball tables yet.



Turn it on just a few days ago and this is where i find out laptop wasn't turning on. There is 4  3D printed brackets holding the laptop in place (2 Z brackets and 2 U brackets holding the laptop side).

I have wanted to install an external power on the laptop, but was very complicated since the power on button is part of the actual keyboard laptop. The final solution was to remove the laptop screen, to have access to the power button and also new U thinner side U bracket to hold the new laptop configuration.



So, it's possible to do a cabinet out of 2020 aluminum profile.



Good day

Reggie
