Help identifying missing parts for a DIY PIN2DMD – Bram Stoker’s Dracula

[Winkston]

Hi everyone,

I am trying to build a PIN2DMD display for my Williams Bram Stoker’s Dracula pinball machine.

I am new to this project and I have already ordered the main components based on the information I found online:

STM32 Nucleo-F429ZI board

PIN2DMD shield from SmallCab

Two P2.5 HUB75 LED panels

HUB75 ribbon cables

5V power supply

MicroSD card

Spacers and mounting hardware

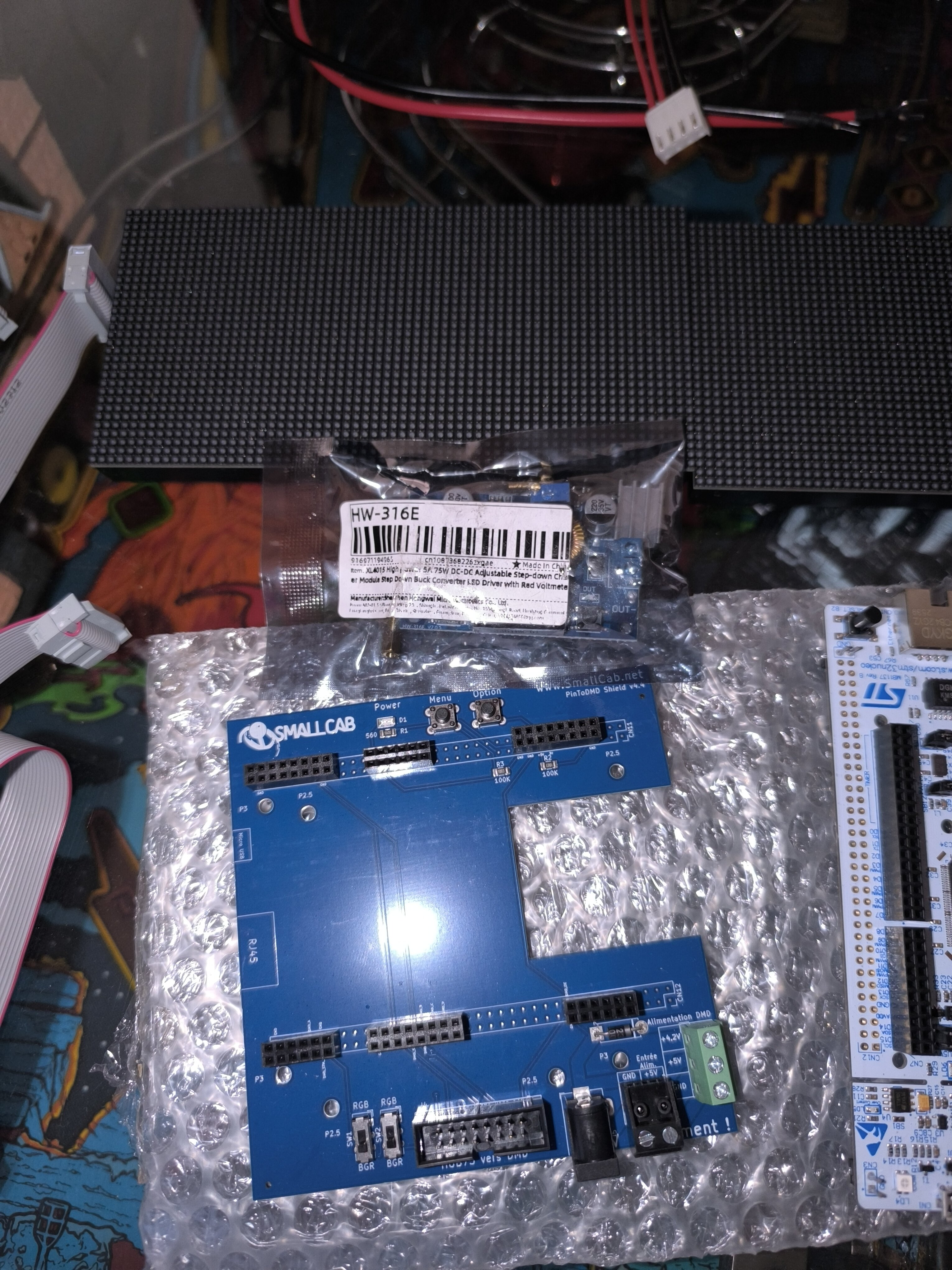

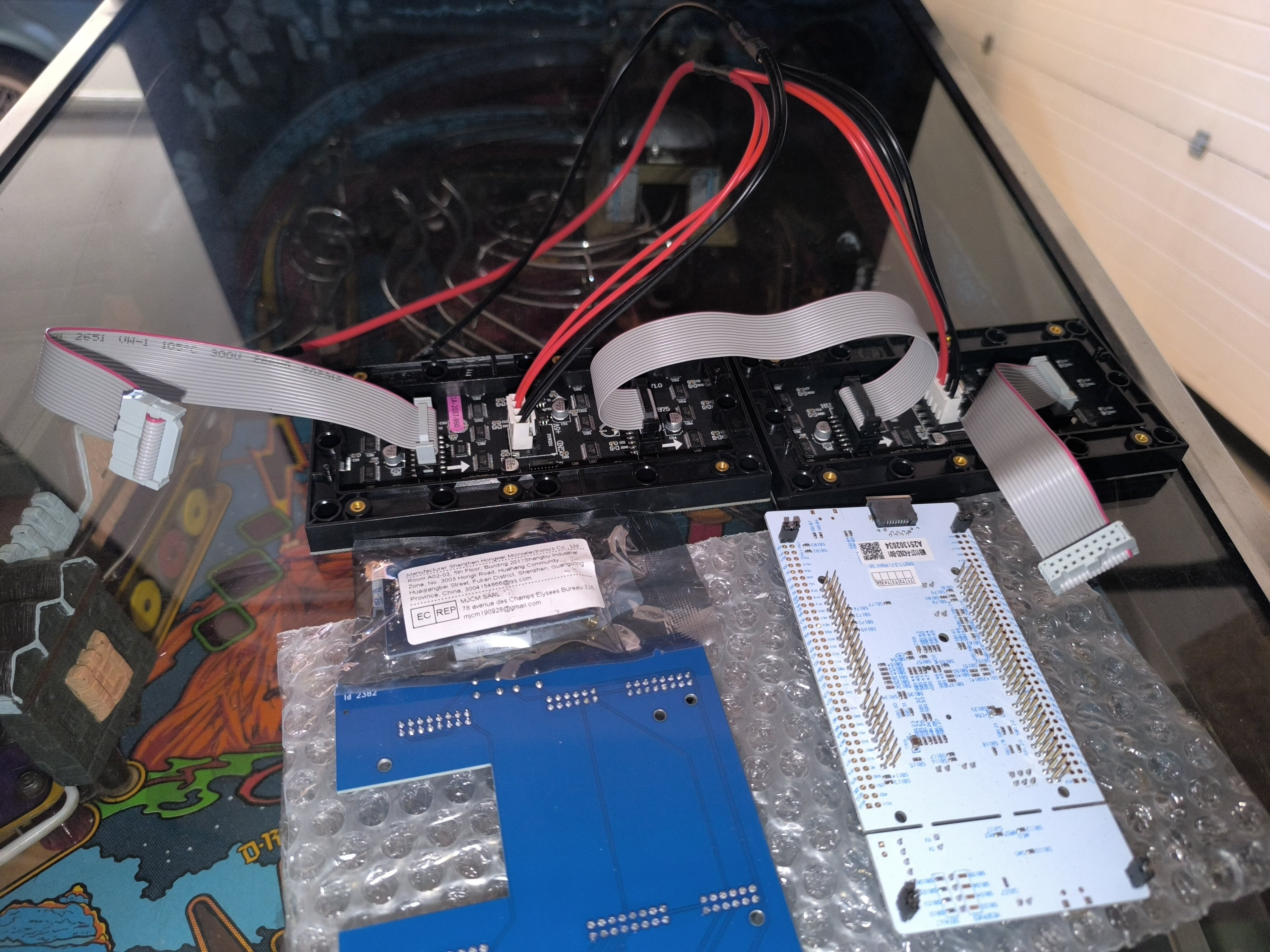

I have attached photos of all the parts I currently have.

Could someone please help me check whether these components are compatible and identify anything that is still missing before I start assembling everything?

I am particularly unsure about:

The cables needed to connect the display to the Dracula pinball machine

Power connections and the correct wiring

Whether I need any additional adapters or connectors

Firmware installation and activation

The correct order for assembling and testing the display

My goal is to build a complete working display for the real pinball machine, not for a virtual pinball cabinet.

Any guidance, wiring diagrams, photos, or links to a step-by-step guide would be greatly appreciated.

Thank you in advance for your help.

[lucky1]

Looks like the custom smallcab pcb is only made for vpin and not for real pin.

Did you see this thread
