LTek Posted June 6 Posted June 6 Looking for anyone who has has seen this issue, or has an educated idea what it might be. I have tried a LOT (see below) and this was working fine for a long time (years). Nothing changed on the system that I know of... no windows updates since Nov 2025. Popper, VPX, etc al lthe same for a long time. Issue: All PuPs (and B2Ss) load and run fine UNLESS they use Pup Capture. PuP Captures load the startup/attract overlays/videos but nont of the DMD changes send triggers to Popper, it seems. I've been over everything I can think of (Freezy settings, etc). I created the Transformers PuP Pack (uses 100% DMD capture triggers) and I'm using that for my main testing but I have checked others, like StarWars Data East. Tried... Updating to Pinup 2 beta... did not help. (even a 1.5 reinstall all Popper files from backup did not help) \VisualPinball\Tables\ Plugins and Plugins64 both have shortcuts for DirectOutput and PinUPPlayerB2SDriver C:\vPinball\PinUPSystem\PinUPPlayerB2SDriver exists and files are there DOF is working on all tables B2Sserver (latest ver) process loads when a tables loads a .directb2s file Freezy/DMDext (latest ver) installed, DMDs works fine (F1 shows the menu no issues, no errors) DMDdevice.ini has pinup enabled = true DMDext colorize is disabled pinupDebugLog shows only a starting triggers... 20260606 08:04:55 Screen InitRoot tf_180og 20260606 08:04:55 Display Load Settings 12 20260606 08:04:55 Sending B2S D0 Event 20260606 08:04:55 PUP Connection Increased 20260606 08:04:55 PlayMedia 1 c:\vpinball\pinupsystem\pupvideos\tf_180og\dmd underlay\default dmd_ltek.mp4 20260606 08:04:55 VLC Sent Media 1 c:\vpinball\pinupsystem\pupvideos\tf_180og\dmd underlay\default dmd_ltek.mp4 20260606 08:04:55 B2S Event Fired Default 20260606 08:04:56 PlayMedia 5 c:\vpinball\pinupsystem\pupvideos\tf_180og\attractmode\transformers g1 season 1 intro and outro (1984) [hq].mp4 20260606 08:04:56 VLC Sent Media 5 c:\vpinball\pinupsystem\pupvideos\tf_180og\attractmode\transformers g1 season 1 intro and outro (1984) [hq].mp4 20260606 08:04:56 B2S Event Fired Attract - was D2 the Puplog.txt logs (see below) are odd - StarWars 'sees' the Captures but Transformers does not, yet neither work. Transformers ... 20260606 10:02:09 Open called 20260606 10:02:09 Set Game Name thread tf_180 20260606 10:02:10 Start Thread Matching 20260606 10:02:10 create PuPCap 20260606 10:02:10 Init Game name:tf_180 20260606 10:02:10 No PuPCapture found: nothing to do StarWars... 20260606 08:23:30 Init Game name:stwr_a14 20260606 08:23:30 Create Object Display 20260606 08:23:30 imagedir:C:\vPinball\PinUPSystem\PuPVideos\stwr_a14\PuPCapture 20260606 08:23:30 num images 90
kiloNova Posted June 6 Posted June 6 Are you absolutely certain that Windows hasn't stealth installed any updates? The issue sounds like a conflict between 32-Bit and 64-Bit DLLs, which is exactly what happened to me a week ago when Windows stealth installed the KB5089573 update and rebooted my machine while I was away. It broke EVERYTHING to do with PUP functionality and I estimate it took me over 40 hours to isolate and solve. If this is the case, run an elevated command prompt and use this code: wusa /uninstall /kb:5089573 Just reboot and throw up a middle finger or two for Windows being Windows 🥂

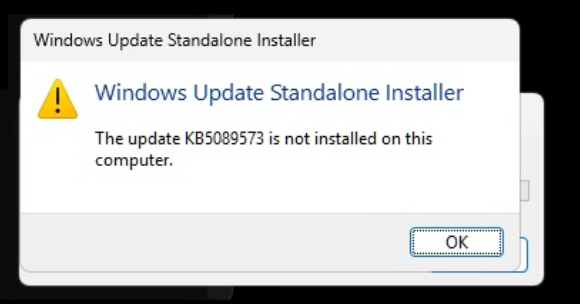

LTek Posted June 6 Author Posted June 6 (edited) 1 hour ago, kiloNova said: Are you absolutely certain that Windows hasn't stealth installed any updates? The issue sounds like a conflict between 32-Bit and 64-Bit DLLs, which is exactly what happened to me a week ago when Windows stealth installed the KB5089573 update and rebooted my machine while I was away. It broke EVERYTHING to do with PUP functionality and I estimate it took me over 40 hours to isolate and solve. If this is the case, run an elevated command prompt and use this code: wusa /uninstall /kb:5089573 Just reboot and throw up a middle finger or two for Windows being Windows 🥂 Windows update does not show any updates since Nov 2025. My PuPs do run. For example, in my Tron Neon table I use PuPevents to trigger screens, and that works... but in Transformers PuP, I used PuPcaptures.... which is not working for me. Edited June 6 by LTek
NailBuster Posted June 6 Posted June 6 looks like b2splugin/table script is using "tf_180og", but freezy/pupcapture is using "tf_180". so freezy is expecting pupvideos\tf_180\pupcaptures folder.
LTek Posted June 7 Author Posted June 7 (edited) Thank you! after a while staring a logs, etc 2 little letters make your eyes trick your brain. BUT other pup capture packs (which I did not mess with the game names) have blank backglasses. (I've tested Batman Dark Knight, Tron Legacy and Star Wars Data East). All the same prob, and they are all PuPCaptures. Backglasses work on all the other tables B2S, Pups, etc If I test these packs in the PuP editor, the backglasses work fine. It seems that something is not seeing the triggers? 20260606 19:42:56 Open called 20260606 19:42:56 Set Game Name thread bdk_294 20260606 19:42:58 Start Thread Matching 20260606 19:42:58 create PuPCap 20260606 19:42:58 Init Game name:bdk_294 20260606 19:42:58 Create Object Display 20260606 19:42:58 imagedir:C:\vPinball\PinUPSystem\PuPVideos\bdk_294\PuPCapture 20260606 19:42:58 num images 111 20260606 19:44:55 Free Object Display all of them are also seen my dmddevice... [6] 2026/06/06 19:58:44.185 INFO | Reloading config from C:\vPinball\VisualPinball\VPinMAME\DMD Extensions\DmdDevice.ini. [6] 2026/06/06 19:58:44.185 INFO | Setting game name: trn_174h [6] 2026/06/06 19:58:44.185 INFO | Setting color: #FFFF5820 [6] 2026/06/06 19:58:44.185 INFO | Opening virtual display... [4] 2026/06/06 19:58:44.209 INFO | Added VirtualDMD renderer. [4] 2026/06/06 19:58:44.209 INFO | [pinup] Starting trn_174h... [4] 2026/06/06 19:58:44.218 INFO | Added PinUP renderer. Edited June 7 by LTek
NailBuster Posted June 7 Posted June 7 i assume you're testing outside of any frontend, running directly from vpx. if you see 'black' backglass, if you alt-tab, is there a b2sform that is all-black and covering the pup? other than that I don't know what it could be. does alt-tab see the pup on a different monitor or behind playfield.

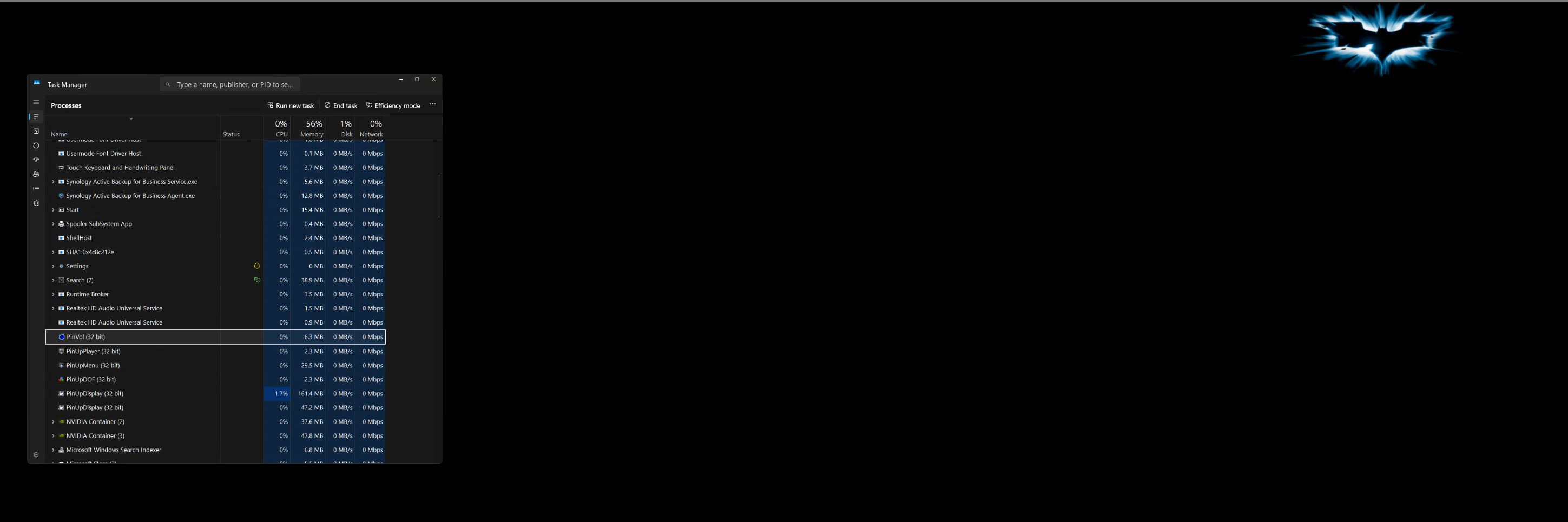

LTek Posted June 7 Author Posted June 7 (edited) @NailBuster I found the issue (dont know how to fix)... there is a problem with PinupDisplay not running/loading. If you have any ideas why this is happening, maybe something is not registered in Windows, etc... I'd appreciate it. I'm considering running Baller installer and then restoring the database to see if that fixes it. I suspect its not something huge since the rest of Pinup works perfectly. Test method 1: Launching through VPX -- PinupDisplay never loads Test method 2: add table script (code below) to force it, everything works perfectly even when launching only through VPX Test method 3: Launching through PinUp Menu -- PinupDisplay loads into memory, but is not working properly. You can see how there are two instances, and only 1 has a PNG showing, the other should be a video and it is not there. Seem the comms to load PinupDisplay is not happening or getting lost? Are B2Sdrivers (your page on it), shortcuts in the Plugins / Plugins64 or the DLLs themselves? I have tried both, currently have the files themselves. 📁 B2SServer (or \Tables if your DLL is there) └── 📄 B2SBackglassServer.dll └── 📁 Plugins └── 📁 PinUPPlayerB2SDriver └── 📄 B2SServerPluginInterface.dll └── 📄 PinUpPlayerB2SDriver.dll ' ---------- PINUP PLAYER: STARTUP & CONTROL SECTION ---------- Dim PuPlayer: Dim PUPStatus: PUPStatus=false ' dont edit this line!!! Sub PuPStart(cGameName) If PUPStatus=true then Exit Sub If usePUP=true then Set PuPlayer = CreateObject("PinUpPlayer.PinDisplay") If PuPlayer is Nothing Then usePUP=false PUPStatus=false Else PuPlayer.B2SInit "",cGameName 'start the Pup-Pack PUPStatus=true End If End If End Sub ' ---------- Placed at end of Table Init ---------- PuPStart(cGameName) Edited June 8 by LTek
LTek Posted June 9 Author Posted June 9 (edited) @NailBuster any idea on where the comms issue is? is this an accurate flow for PuPcapture packs? when the packs load, the only process in memeory is PinupPlayer... not PUPDMDControl, PupCapture or any PinupDisplay VPX ↓ VPinMAME ↓ External DMD enabled ↓ dmddevice.dll ↓ Frames sent to PinUP ↓ PUPDMDControl.exe ↓ PinUpPlayer.exe ↓ PuPCapture image matching ↓ Trigger videos/playlists ↓ PinUpDisplay.exe Edited June 9 by LTek
NailBuster Posted June 9 Posted June 9 sounds like you maybe upgraded b2s manually?? and maybe even moved it out of tables? if you can run something like stranger things table via popper (that table doesn't use b2s) and it works, then its your b2s setup that's the prob. need to figure out your b2s/plugins/com stuff. May also need to rollback if you're on latest nightlies of b2s or vpinmame or dmdext. PinUpdater has the most stable files, but not nightlies. if you have a backup/image of your cab from when all was working I'd do that. pup v2 upgrade is file based update only (didn't change any file settings) so you can rollback the exes is all that's needed. theres also pinupregister.bat files in pinupsystem that you can run as admin to reregister pup. also b2server has its own re-register exes as well that you need to use if you do stuff manually.
LTek Posted June 9 Author Posted June 9 B2Sserver triggers PUPDMDControl.exe to start the Pupcapture processing? Everything works (B2S tables, regular PuP Pack tables, etc) except if the PuP Pack uses PupCapture. As I mentioned, if I manually ad the code to force Popper to load, it does and the PuPcapture Packs work. Over the past 3 days I reinstalled B2Sserver, Pinup Popper 1.5 & 2.0, and DMDext -- multiple times -- reregistering multiple times. B2Sserver files always in the Tables folder DMDext files always in VpinMame folder
NailBuster Posted June 9 Posted June 9 pupdmdcontrol.exe is not used for dmdext. (that is for realdmd and popper driver) dmddevice.dll --> dmddevicepup.dll is where the frame matching/events happen. (xxx64.dll for 64 bit dmdext) so just having external dll checked is all that is needed for dmdext to startup framematching/pup if enabled.
LTek Posted June 9 Author Posted June 9 (edited) OK, thought dmddevice.dll controlled it so I'm baffled -- I used your Popper Updater and also tried manually downloading the latest version from github... same issue. the Plugins folders have the DLLs, the DMDext has 'external' checked, I've tried changing the dmddevice.ini settings colorize true/false and more. I've made/published 2 Pupcapture pups (Transformers and Batman Dark Knight), its not like I'm 'new' 😉 and since the pups work when i add table script to force the launch, it does seem clear that whtever triggers Popper to start up, is not triggering poppe PuPlayer.B2SInit "",cPuPPack Edited June 9 by LTek
NailBuster Posted June 9 Posted June 9 pup v2.0 is stable (over 2K users now). So i'd stick with that version, because it also has more debug info as well. update v2.0 and run pupeventviewer.exe BEFORE anything else and see if that helps you out.
LTek Posted June 9 Author Posted June 9 (edited) 20 minutes ago, NailBuster said: pup v2.0 is stable (over 2K users now). So i'd stick with that version, because it also has more debug info as well. update v2.0 and run pupeventviewer.exe BEFORE anything else and see if that helps you out. installed Popper 2 also, in case you did not see my edit above: when I force popper to launch via table script, Pupcapture packs play fine. Using ... PuPlayer.B2SInit "",cPuPPack EventvViewer... ===== PuPEvent Viewer 2026/06/09 16:41:39 PinUP Event Viewer Active: 2026/06/09 16:41:39 2364 *svchost.exe 2026/06/09 16:41:40 Stopped: svchost.exe (PID: 2364) closed. Exit Code: 0 14192 *dllhost.exe 2026/06/09 16:41:44 Stopped: dllhost.exe (PID: 14192) closed. Exit Code: 0 9060 *VPinballX.exe 2026/06/09 16:41:45 Windows Started: VPinballX.exe (PID: 9060) 5240 *DataExchangeHost.exe 2026/06/09 16:41:56 Windows Started: DataExchangeHost.exe (PID: 5240) 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:00 [0609/164200.797:ERROR:third_party\webrtc\modules\desktop_capture\win\dxgi_output_duplicator.cc:209] Failed to capture frame: HRESULT: 0x887A0026, Message: The keyed mutex was abandoned. 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:00 [0609/164200.816:ERROR:third_party\webrtc\modules\desktop_capture\win\screen_capturer_win_directx.cc:166] DxgiDuplicatorController failed to capture desktop, error code Duplication failed 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:01 [0609/164201.004:WARNING:third_party\webrtc\modules\desktop_capture\win\dxgi_adapter_duplicator.cc:116] Cannot initialize any DxgiOutputDuplicator instance. 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:01 [0609/164201.004:WARNING:third_party\webrtc\modules\desktop_capture\win\dxgi_duplicator_controller.cc:286] Failed to initialize DxgiAdapterDuplicator on adapter 1 9340 *PinUpPlayer.exe 2026/06/09 16:42:11 Windows Started: PinUpPlayer.exe (PID: 9340) 9340 PinUpPlayer.exe 2026/06/09 16:42:17 PUPLAYER: HANDLE LAST RELEASE PinUpDisplayMain 9340 PinUpPlayer.exe 2026/06/09 16:42:17 PUPLAYER: Killing server title PUPMENU 9340 *PinUpPlayer.exe 2026/06/09 16:42:17 Stopped: PinUpPlayer.exe (PID: 9340) closed. Exit Code: 0 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:18 [0609/164218.197:ERROR:third_party\webrtc\modules\desktop_capture\win\dxgi_output_duplicator.cc:209] Failed to capture frame: HRESULT: 0x887A0026, Message: The keyed mutex was abandoned. 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:18 [0609/164218.227:ERROR:third_party\webrtc\modules\desktop_capture\win\screen_capturer_win_directx.cc:166] DxgiDuplicatorController failed to capture desktop, error code Duplication failed 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:18 [0609/164218.397:WARNING:third_party\webrtc\modules\desktop_capture\win\dxgi_adapter_duplicator.cc:116] Cannot initialize any DxgiOutputDuplicator instance. 7504 <Process Not Found or Access Denied> 2026/06/09 16:42:18 [0609/164218.397:WARNING:third_party\webrtc\modules\desktop_capture\win\dxgi_duplicator_controller.cc:286] Failed to initialize DxgiAdapterDuplicator on adapter 1 5240 *DataExchangeHost.exe 2026/06/09 16:42:27 Stopped: DataExchangeHost.exe (PID: 5240) closed. Exit Code: 0 6592 *backgroundTaskHost.exe 2026/06/09 16:42:32 Windows Started: backgroundTaskHost.exe (PID: 6592) Also, the DMDdevice Log shows its all loading... [6] 2026/06/09 16:42:04.453 INFO | Starting DmdDevice API 2.3.1 (x64) through VPinballX.exe. [6] 2026/06/09 16:42:04.488 INFO | Assembly located at C:\vPinball\VisualPinball\VPinMAME\DmdDevice64.dll [6] 2026/06/09 16:42:04.488 INFO | Running in C:\vPinball\visualpinball\Tables [6] 2026/06/09 16:42:04.511 INFO | Successfully loaded config from C:\vPinball\VisualPinball\VPinMAME\DmdDevice.ini. [6] 2026/06/09 16:42:04.573 INFO | [serum] Determined altcolor path from assembly path: C:\vPinball\VisualPinball\VPinMAME\altcolor [6] 2026/06/09 16:42:05.688 INFO | [dll] Open(0) [6] 2026/06/09 16:42:05.688 INFO | [dll] Set_4_Colors_Palette(device: 0, 0%: #000000, 33%:#0600D6, 66%:#E10FC1, 100%:#FF5820) [6] 2026/06/09 16:42:05.688 INFO | [dll] PM_GameSettings(0, bdk_294, 1) [6] 2026/06/09 16:42:05.688 INFO | Enabling game colorization [6] 2026/06/09 16:42:05.688 INFO | Setting game name: bdk_294 [6] 2026/06/09 16:42:05.688 INFO | Setting color: #FFFF5820 [6] 2026/06/09 16:42:05.688 INFO | Opening virtual display... [16] 2026/06/09 16:42:05.772 INFO | Added VirtualDMD renderer. [16] 2026/06/09 16:42:05.779 INFO | [pinup] Starting bdk_294... [16] 2026/06/09 16:42:05.779 INFO | Added PinUP renderer. [16] 2026/06/09 16:42:05.779 INFO | Transformation options: Resize=Fit, HFlip=False, VFlip=False [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | Applying palette to render graphs. [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.794 INFO | [RenderGraph] SetColor(0%: #FF000000, 33%:#FF551700, 66%:#FFAA2E00, 100%:#FFFF4500) [16] 2026/06/09 16:42:05.818 INFO | Setting up 2-bit Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [16] 2026/06/09 16:42:05.828 INFO | -> Connecting DmdDevice 2-bit Source to Virtual DMD (Gray2 -> Gray2) - deduped [16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice 2-bit Source to PinUP Writer (Gray2 -> Gray2) - not deduped [16] 2026/06/09 16:42:05.840 INFO | Setting up 4-bit Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice 4-bit Source to Virtual DMD (Gray4 -> Gray4) - deduped [16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice 4-bit Source to PinUP Writer (Gray4 -> Gray4) - not deduped [16] 2026/06/09 16:42:05.840 INFO | Setting up RGB24 Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice RGB24 Source to Virtual DMD (Rgb24 -> Rgb24) [16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice RGB24 Source to PinUP Writer (Rgb24 -> Gray4) [16] 2026/06/09 16:42:05.840 INFO | Setting up Alphanumeric Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [16] 2026/06/09 16:42:05.840 DEBUG | DMD position: No registry because it's ignored. [16] 2026/06/09 16:42:06.179 INFO | Creating FBOs for 128x32 [6] 2026/06/09 16:42:17.334 INFO | [dll] Close(0) [6] 2026/06/09 16:42:17.334 INFO | Closing up. [6] 2026/06/09 16:42:17.350 DEBUG | Disposing 2-bit Passthrough Graph... [6] 2026/06/09 16:42:17.350 INFO | Source for 2 renderer(s) stopped. [6] 2026/06/09 16:42:17.570 DEBUG | Disposing 4-bit Passthrough Graph... [6] 2026/06/09 16:42:17.570 INFO | Source for 2 renderer(s) stopped. [6] 2026/06/09 16:42:17.570 DEBUG | Disposing RGB24 Passthrough Graph... [6] 2026/06/09 16:42:17.570 INFO | Source for 2 renderer(s) stopped. [6] 2026/06/09 16:42:17.570 DEBUG | Disposing Alphanumeric Passthrough Graph... Edited June 9 by LTek
NailBuster Posted June 9 Posted June 9 (edited) i have no idea why b2s/dmdext wouldn't start your pup. Either one will start the pup. I'd try dmdext v2.3.0 and b2s v2.1.2 as thats the default in baller. Maybe try non-color roms too. "[16] 2026/06/09 16:42:05.840 INFO | -> Connecting DmdDevice RGB24 Source to PinUP Writer (Rgb24 -> Gray4) " this might be something as older dmdext didn't down convert to gray4 ? older dmdext had this in log [10] 2025/01/17 11:14:36.048 INFO | Connecting VPM RGB24 Source to PinUP Writer (Rgb24 => Bitmap) maybe nothing, but dont know why dmdext sends gray4 instead of bitmap now? maybe they are same thing, need to ask dmdext devs. also, what is that 3rd party events/errors trying to screen grab/capture your desktop during vpx? were you recording something? Edited June 9 by NailBuster
LTek Posted June 10 Author Posted June 10 (edited) Since B2S and/or DMDext will start the PuP, whatever should be 'listening' or registered in Windows (?) is not... or are they making a specific call to something? I can try to trace it. Since forcing via script makes it work perfectly, it must be something simple in the Windows registry, or some sort of process that is failing Id think? Unfortunately the Event viewer does not capture anything helpful for troubleshooting this. It shows B2Sserver loading, that's all. The COM object looks like it is registered fine HKEY_CLASSES_ROOT\PinUpPlayer.PinDisplay (Default) REG_SZ PinUP Player Com Object HKEY_CLASSES_ROOT\PinUpPlayer.PinDisplay\Clsid (Default) REG_SZ {88919FAC-00B2-4AA8-B1C7-52AD65C476D3} ROMs have not changed, same ones I've used since day one. All of this was working perfectly until about a two weeks ago. It has been a month or so since I played prior to that. I had all the newer B2S & DMDext running/working before (I installed them long ago)... Today I re-installed popper v1.5 (for I think the 3rd time in 2 days) with the updater and that looks like it installed older versions of B2S & DMDext. So those are the versions I'm still using. Then you suggested updating to popper v2, which I just did before my last post. So... with the Gray4 thing, that is happening using the version popper updater installs. I ran multiple tables, with both the DMDext that comes with Popper Updater, and the latest 2.4.0 (github)... they both never show a conversion to Bitmap. here's one example... [23] 2026/06/09 20:21:01.995 INFO | Setting up 2-bit Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 2-bit Source to Virtual DMD (Gray2 -> Gray2) - deduped [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 2-bit Source to PinUP Writer (Gray2 -> Gray2) - not deduped [23] 2026/06/09 20:21:01.995 INFO | Setting up 4-bit Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 4-bit Source to Virtual DMD (Gray4 -> Gray4) - deduped [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 4-bit Source to PinUP Writer (Gray4 -> Gray4) - not deduped [23] 2026/06/09 20:21:01.995 INFO | Setting up 8-bit Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 8-bit Source to Virtual DMD (Gray8 -> Gray8) [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice 8-bit Source to PinUP Writer (Gray8 -> Gray4) [23] 2026/06/09 20:21:01.995 INFO | Setting up RGB24 Passthrough Graph for 2 destination(s) [ Virtual DMD, PinUP Writer ] [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice RGB24 Source to Virtual DMD (Rgb24 -> Rgb24) [23] 2026/06/09 20:21:01.995 INFO | -> Connecting DmdDevice RGB24 Source to PinUP Writer (Rgb24 -> Gray4) Those 3rd party events are known common errors when switching in/out of Full Screen Exclusive - the GPU looses connection for a moment. When VPX loads/unloads the table. I've always (3+ yrs) used FS Exclusive. As a test, I ran Windowed, no 3rd party errors, but also, did not fix the issue of course. Edited June 10 by LTek
LTek Posted June 12 Author Posted June 12 Solved... the PinUpPlayerB2SDriver.dll was an old version, and it was not working properly. How that got there is beyond me... but I knew it was something simple. So if you see it again, you know that PupCaptures Packs will not launch with an older version of that driver -- at least with Popper 1.5 and 2.0
