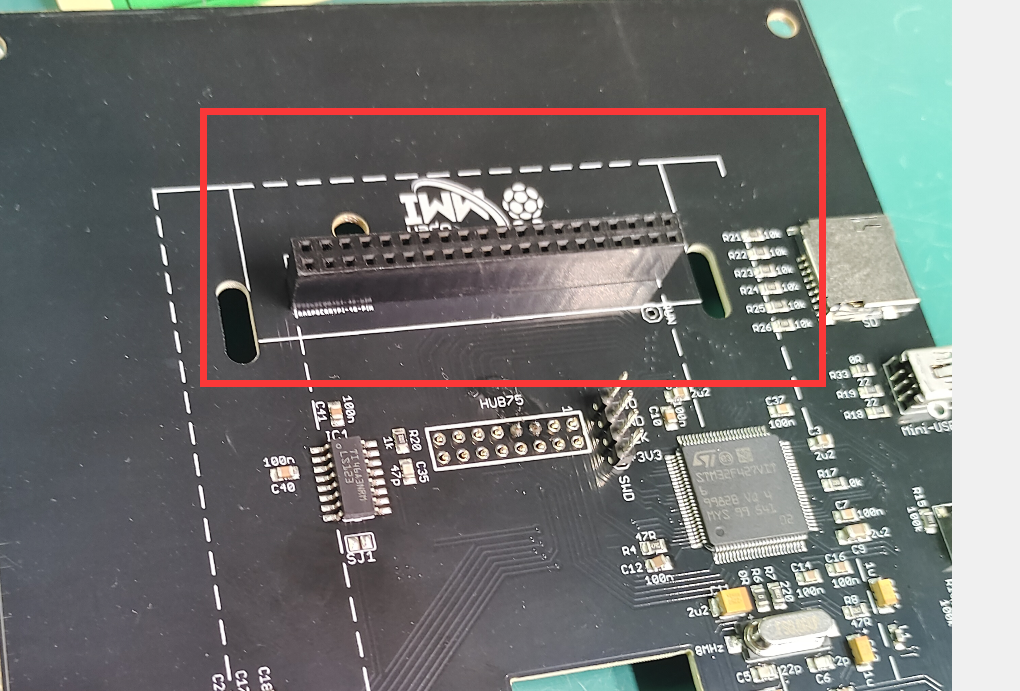

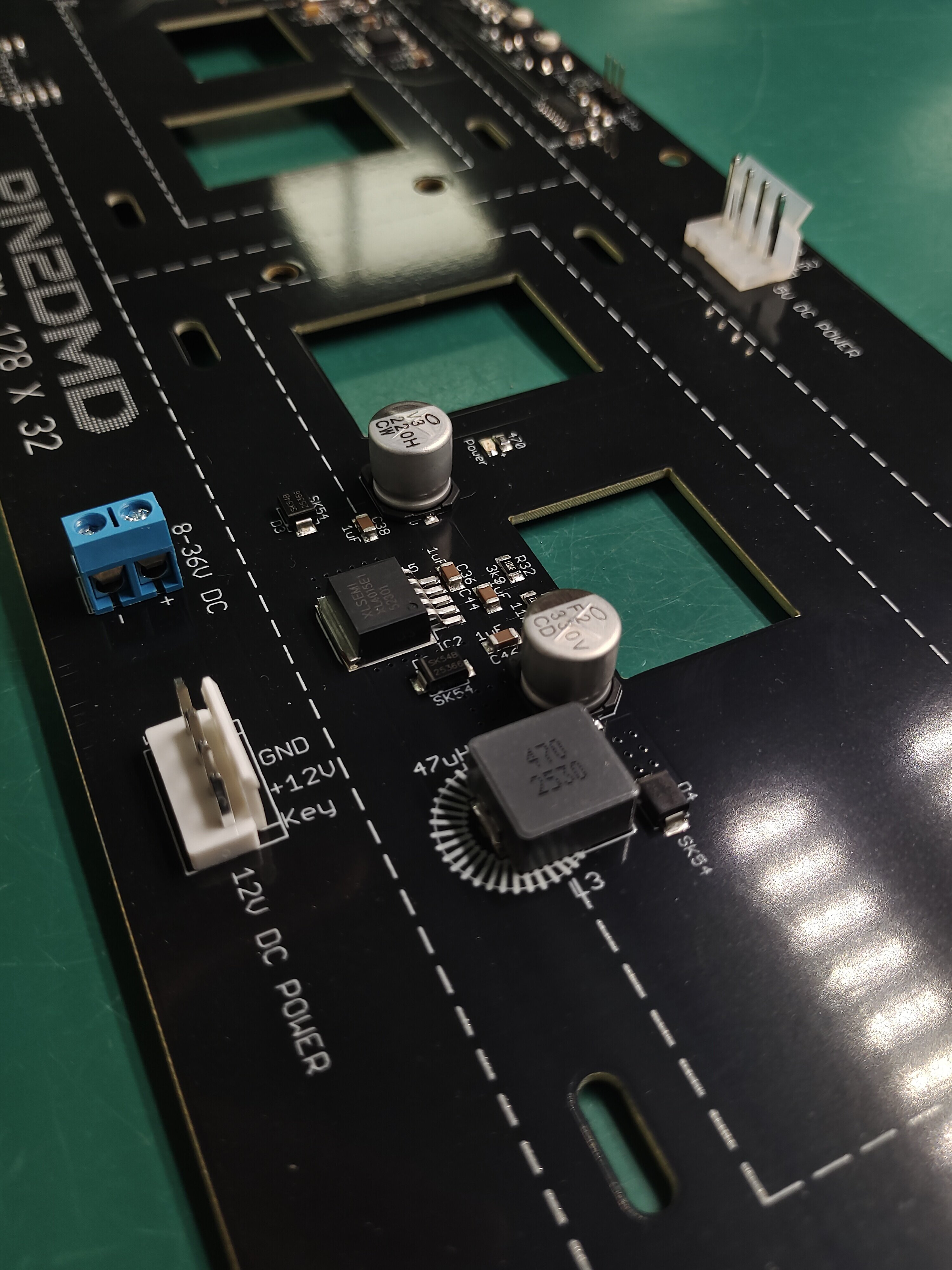

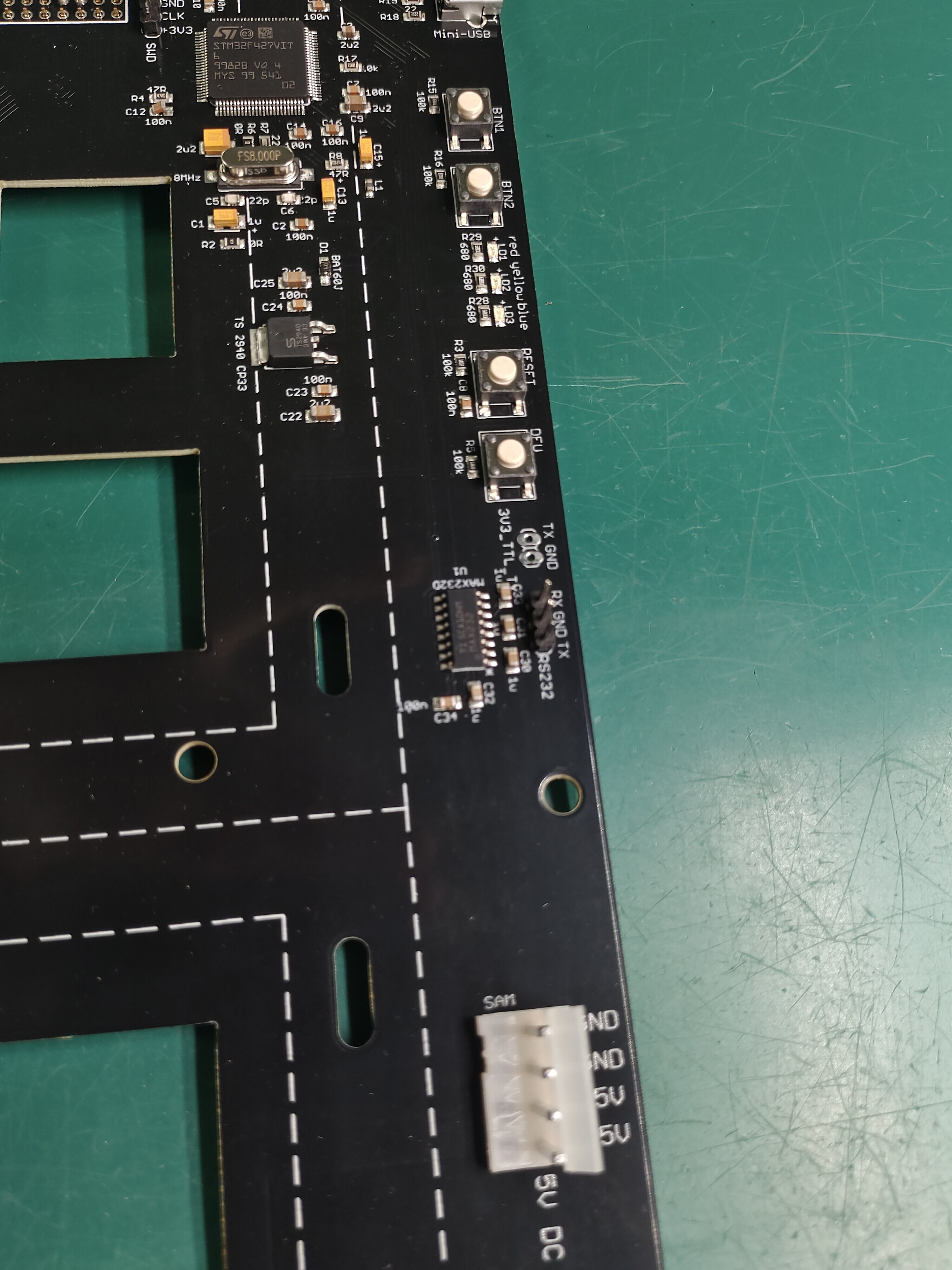

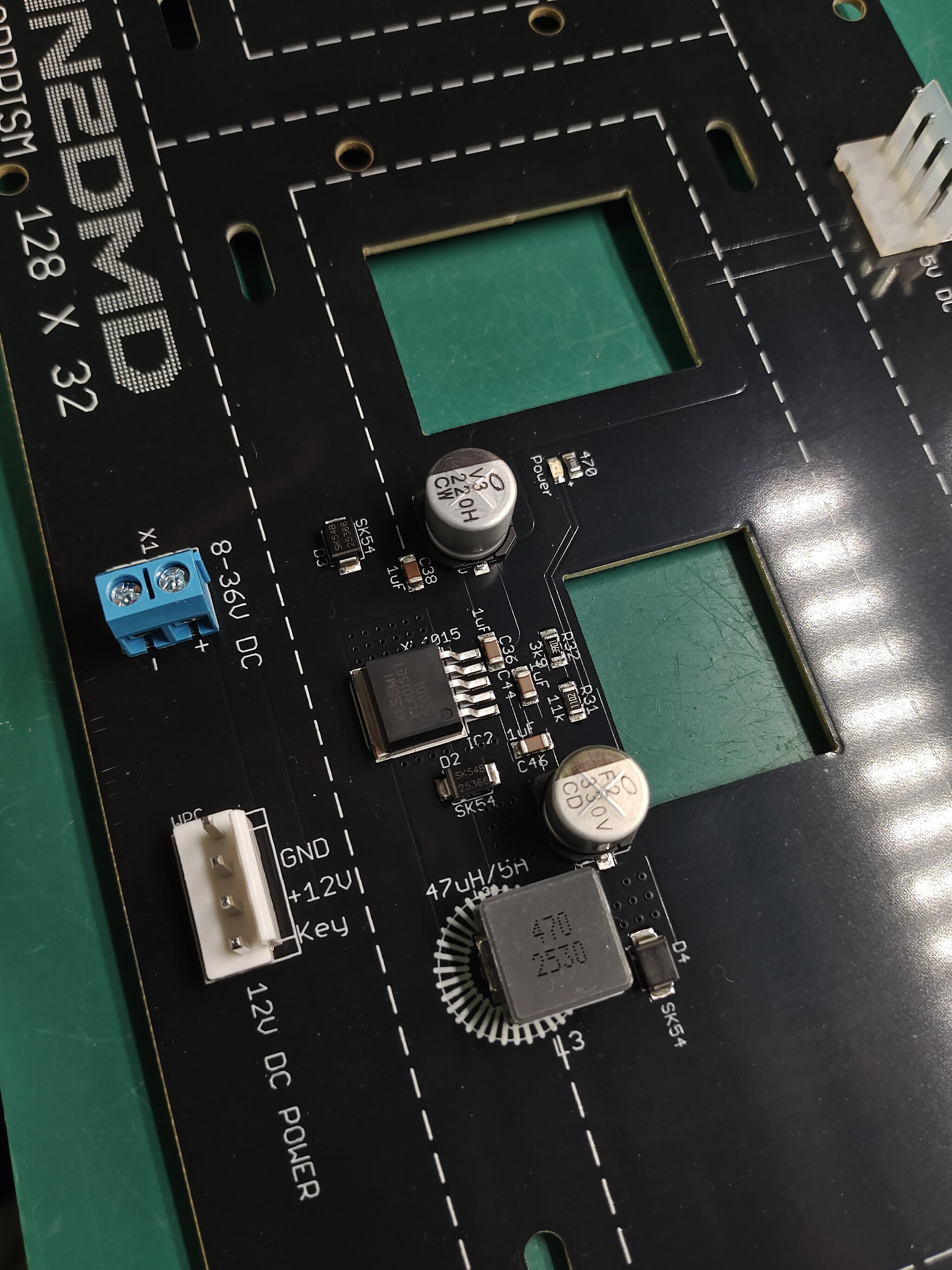

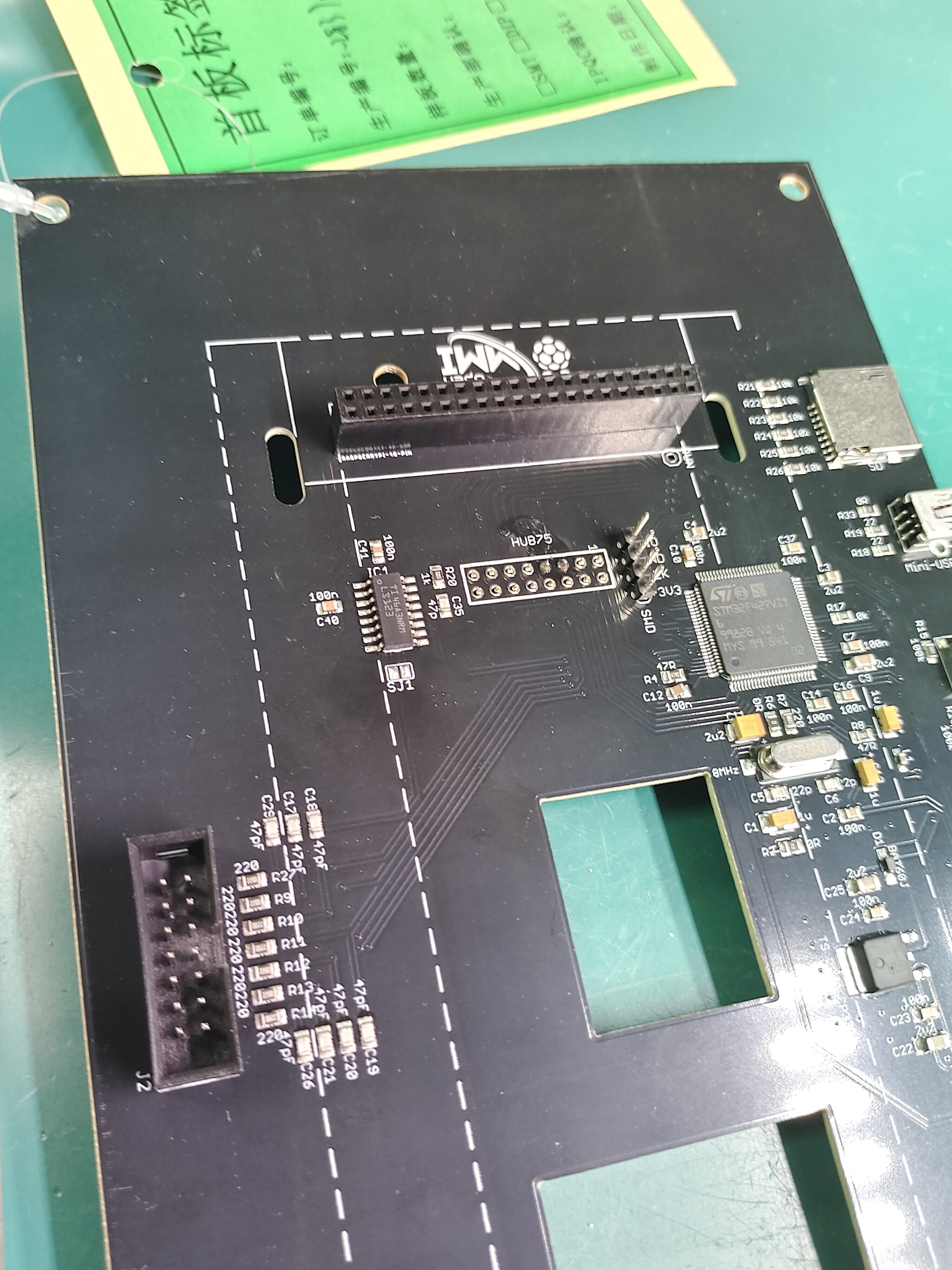

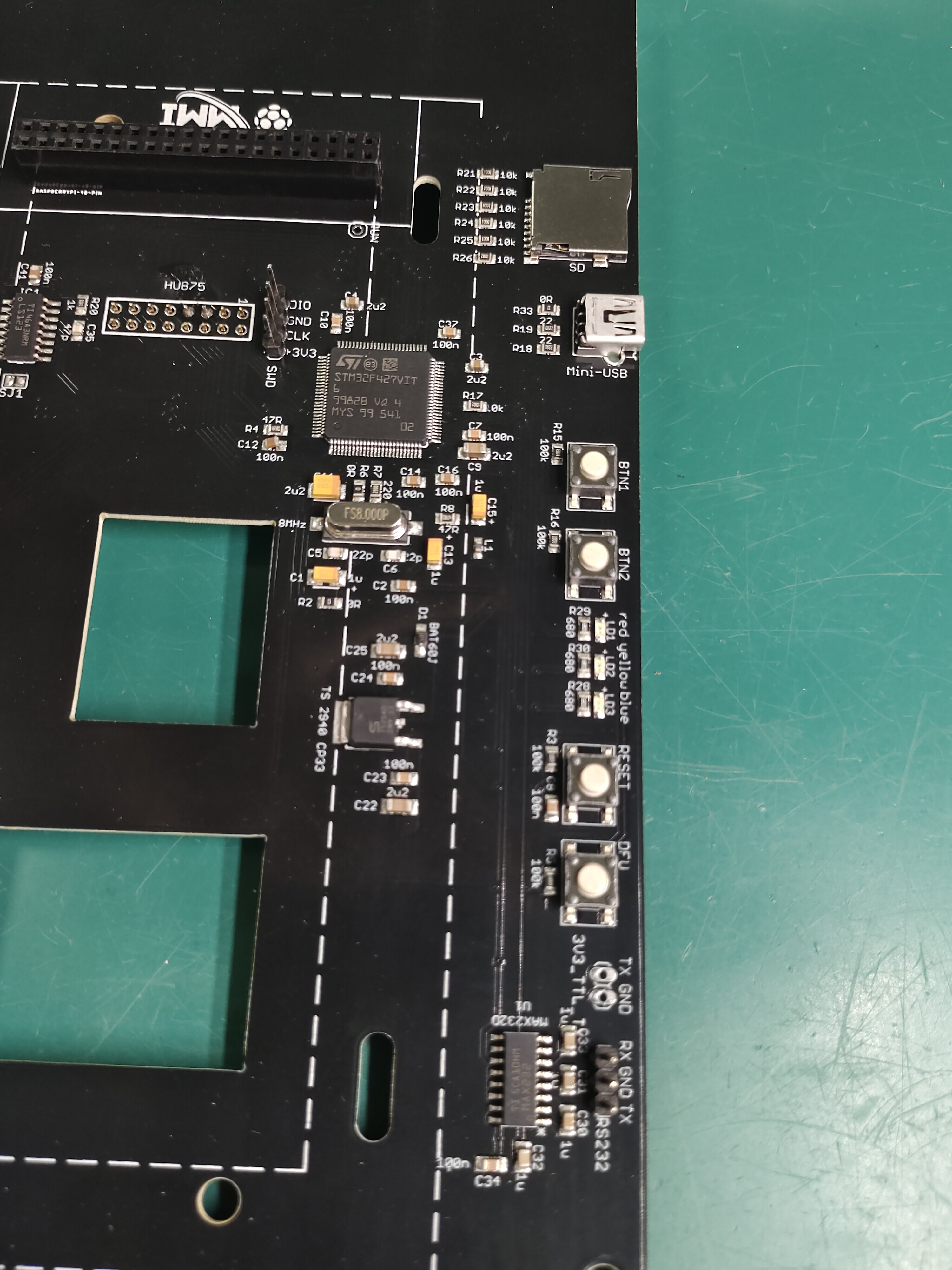

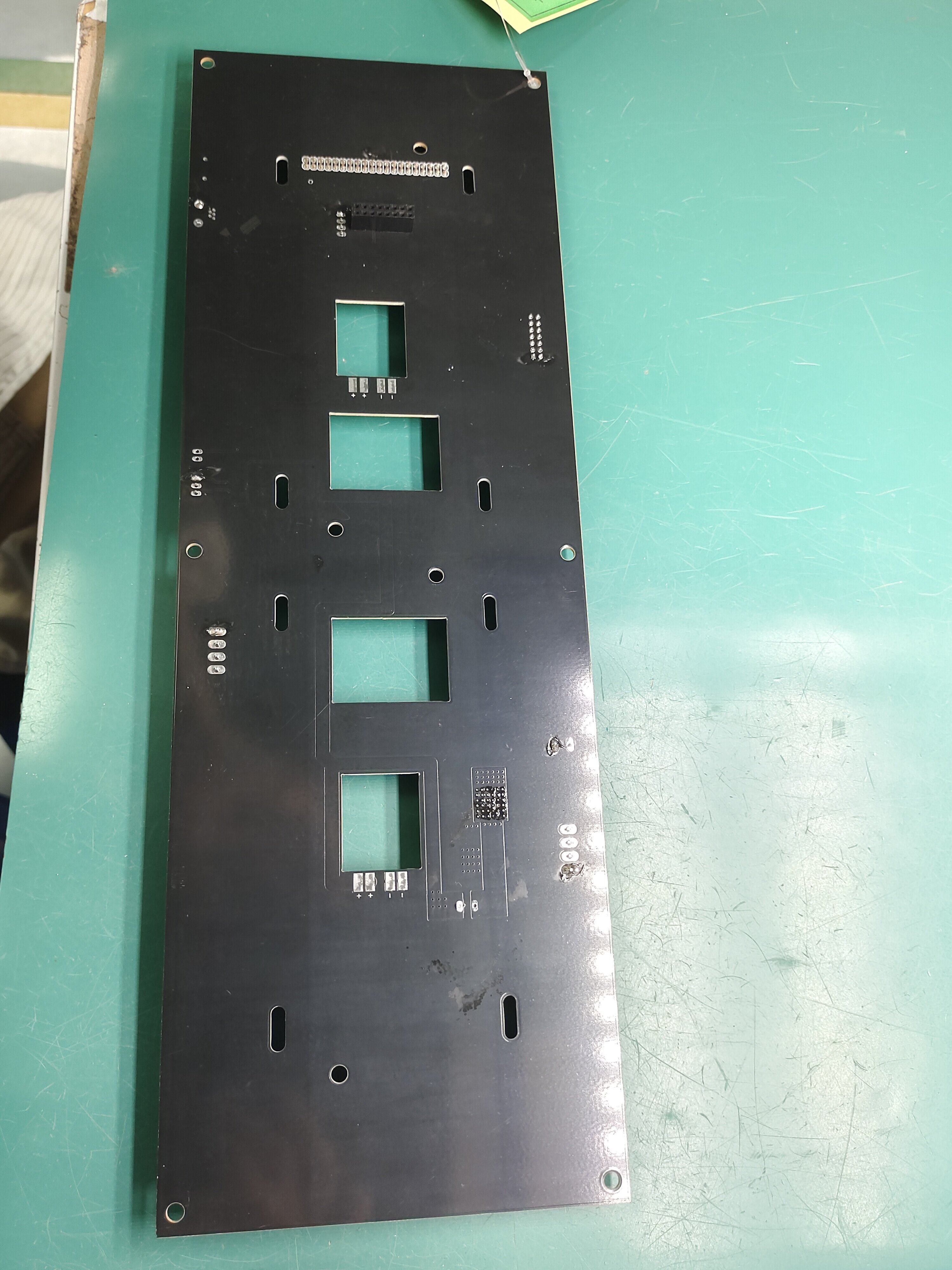

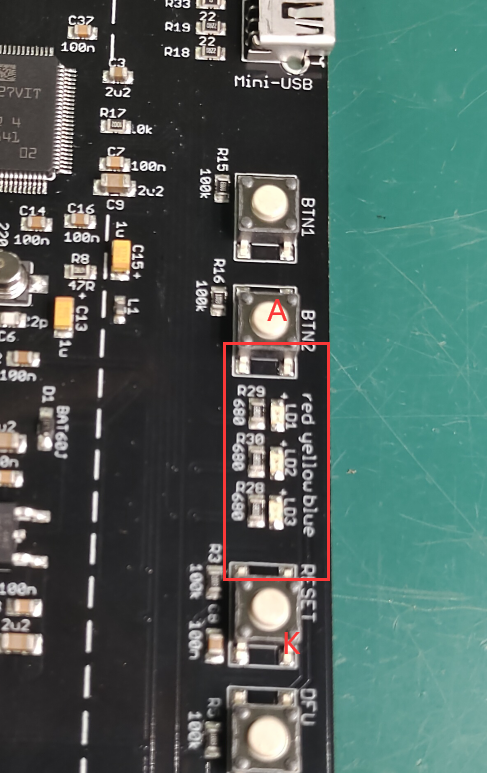

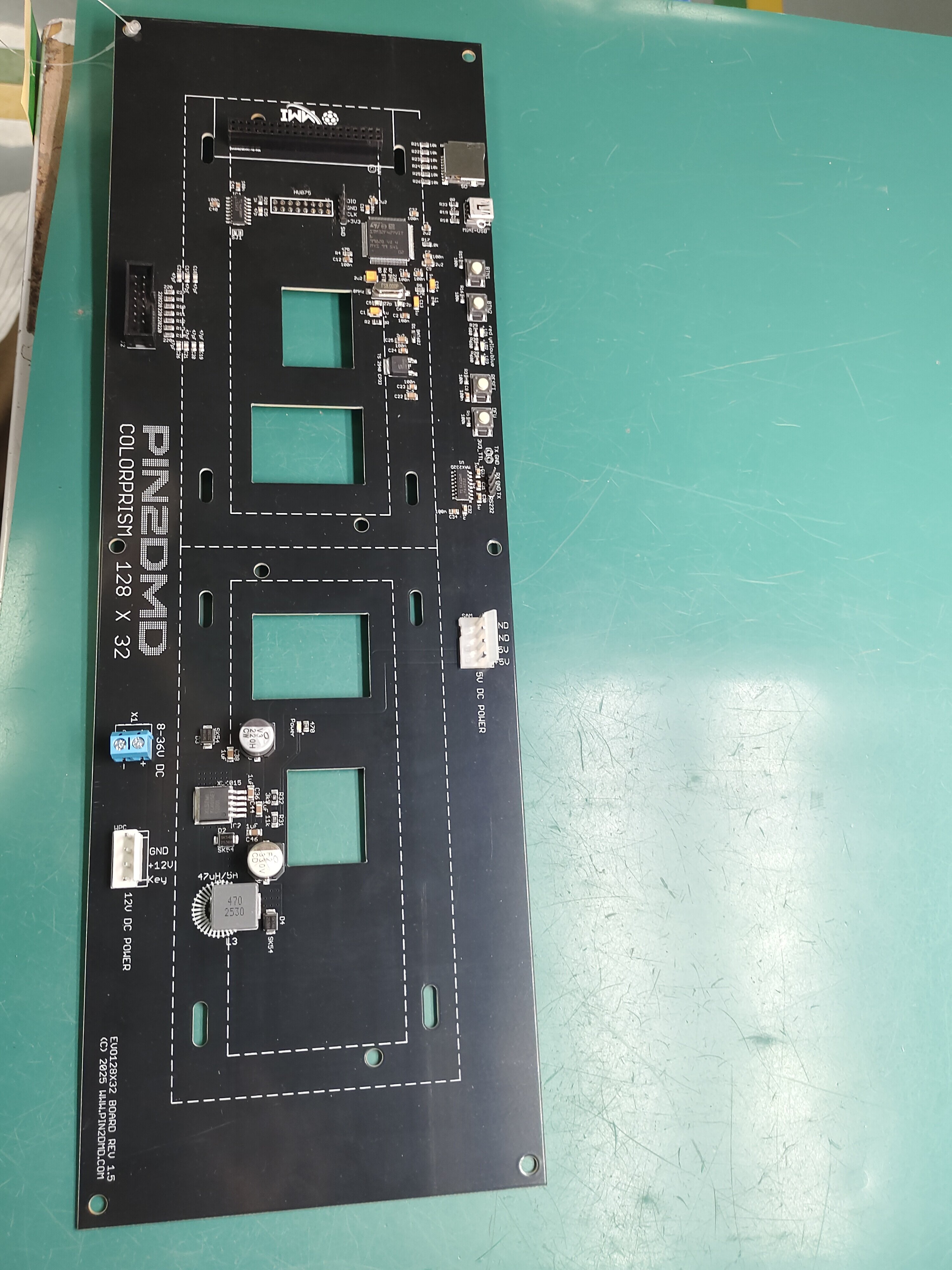

Chesco Posted March 24 Posted March 24 (edited) Hello. I recently placed a new order with PcbWay and they sent me the confirmation photos. However, there's a new component I hadn't seen before. Could you tell me what it is and if the order is OK? Can I use this Pin2dmd as it has always been used? Thank you. Please review the attached Assembly photos of order# : T-1D135W203053A.zip 1.Kindly confirm if all parts are correctly installed and oriented? 2.Specifically, for J1 assembled correct? Attention: If there are THT parts in board,pins do not solder in order to fix easier,we will solder all after your confirmation. Also the dirty on the board will be cleaned before shipment. Waitting for your comments. It seems this interface is for adding a small Raspberry Pi board to use Serum colorizations...is that correct? If so, this represents a huge leap forward for the Pin2dmd system. Edited March 24 by Chesco
Content Provider lucky1 Posted March 24 Content Provider Posted March 24 44 minutes ago, Chesco said: Can I use this Pin2dmd as it has always been used? Yes 45 minutes ago, Chesco said: It seems this interface is for adding a small Raspberry Pi board Correct ! It is for the PIN2MMI Interface which has multiple purposes. See examples here https://github.com/lucky01/PIN2DMD_MMI
Chesco Posted March 24 Author Posted March 24 Is there a tutorial for programming a Raspberry Pi and using Serum files for AFM?
phoerber Posted March 24 Posted March 24 13 minutes ago, Chesco said: Is there a tutorial for programming a Raspberry Pi and using Serum files for AFM? Wondering the same?
