DOF and Configuration Issues with PinOne

[mikekaro]

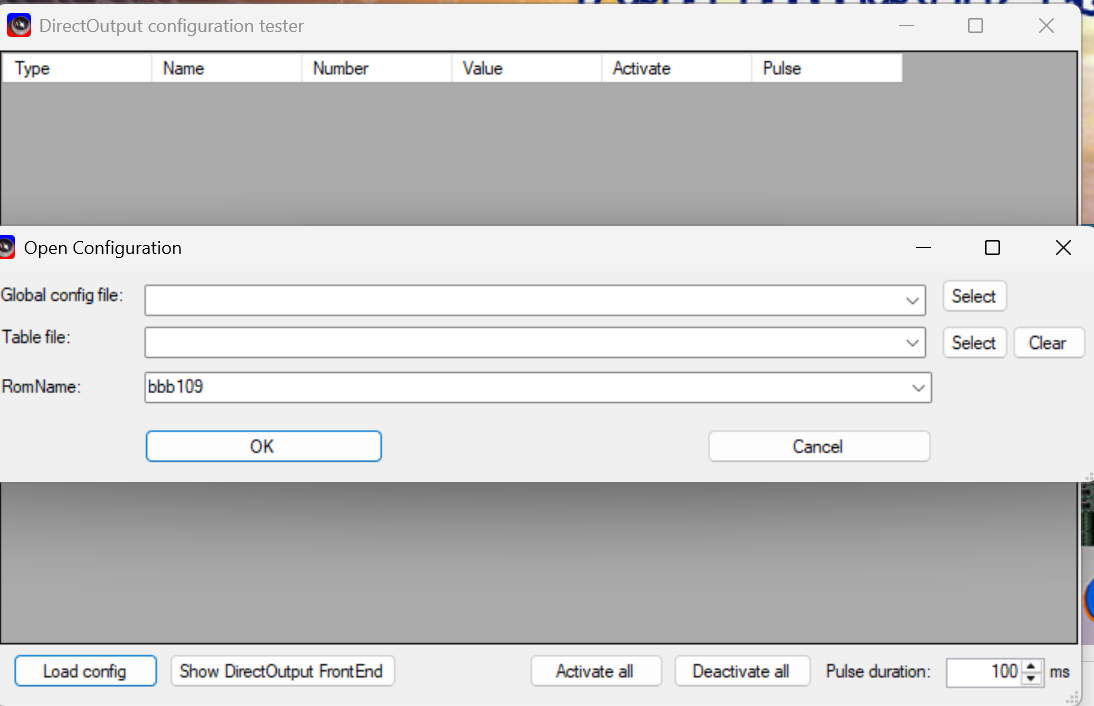

Unable to get 2 solenoids working with PinOne and DOF.  If I start the DirectOutputConfigtester.exe, The only way I can see and test the toys is to load a global config file, a table and the rom.  If I just try using the rom, the toys do not load.  B2SServer.exe has the plugins registered, but do not actuate on the table.



The directoutputconfig11.ini has the combos I setup (one for left side and one for right side):



[Config DOF]
# "Rom","Combo Left","Combo Right"



I know when I've had this working before, all I needed to do was load the rom file.  What might I be missing?

[mikekaro]

Log if I try and just use rom file:



---------------------------------------------------------------------------------
DirectOutput Framework - Version 3.2.9084.20790, x86-Release, built 2024.11.14 11:33
DOF created by SwissLizard / MIT License
MJR Grander Unified DOF R3++ edition feat. Djrobx, Rambo3, Vroonsh, CSD, and Freezy
https://github.com/mjrgh/DirectOutput
2026.01.11 15:42:12.153    DirectOutput logger initialized
2026.01.11 15:42:05.642    Install folder lookup: assembly: D:\DirectOutput\x86\DirectOutput.dll, install folder: D:\DirectOutput (PARENT of the assembly folder -> new shared x86/x64 install)
2026.01.11 15:42:12.150    Global config filename is unknown; using defaults
2026.01.11 15:42:12.151    Substitution variables: {DllDir}=D:\DirectOutput; {InstallDir}=D:\DirectOutput; {BinDir}=D:\DirectOutput\x86; {TableDir}=<null>; {TableName}=<null>; {RomName}=apollo13
2026.01.11 15:42:12.153    Loading Pinball parts
2026.01.11 15:42:12.153    Loading cabinet
2026.01.11 15:42:12.153    Warning: No cabinet config file loaded. Will use AutoConfig.
2026.01.11 15:42:12.154    Cabinet auto configuration started
2026.01.11 15:42:12.478    Detected and added PinOne Controller Nr. 1 with name PinOne Controller 01
2026.01.11 15:42:12.478    Added LedwizEquivalent Nr. 11 with name PinOne Controller 01 Equivalent for PinOne Controller Nr. 1, 63
2026.01.11 15:42:12.483    PhilipsHueAutoConfigurator.AutoConfig started...note, actual connection detection will happen asynchronously, and device disabled if not succesfull (check further down in the log)
2026.01.11 15:42:12.582    Cabinet auto configuration finished
2026.01.11 15:42:12.582    Cabinet loaded
2026.01.11 15:42:12.582    Loading table config
2026.01.11 15:42:12.582    No TableFilename specified, will use empty tableconfig
2026.01.11 15:42:12.582    Will try to load configs from DirectOutput.ini or LedControl.ini file(s) for RomName apollo13
2026.01.11 15:42:12.583    No directoutputconfig.ini or ledcontrol.ini files found.
2026.01.11 15:42:12.584    No config for table found in LedControl data for RomName apollo13.
2026.01.11 15:42:12.584    Table config loading finished: romname=apollo13, tablename=apollo13
2026.01.11 15:42:12.585    Pinball parts loaded
2026.01.11 15:42:12.586    Starting processes
2026.01.11 15:42:12.586    Initializing cabinet
2026.01.11 15:42:12.586    Initializing output controllers
2026.01.11 15:42:12.587    PinOne "PinOne Controller 01" initialized and updater thread started.
2026.01.11 15:42:12.587    Output controllers initialized
2026.01.11 15:42:12.589    PinOne "PinOne Controller 01" updater thread started.
2026.01.11 15:42:12.590    Cabinet initialized
2026.01.11 15:42:12.592    Searching for DirectOutputShapes.xml in {InstallDir}\DirectOutputShapes.xml => D:\DirectOutput\DirectOutputShapes.xml: Success
2026.01.11 15:42:12.592    Loading shape definition file: D:\DirectOutput\DirectOutputShapes.xml
2026.01.11 15:42:12.625    Framework initialized.
2026.01.11 15:42:12.625    Have fun!
2026.01.11 15:42:13.044    PinOne "PinOne Controller 01" updater thread has connected to PinOne "PinOne Controller 01".
