DMD showing up on main playing field

[sixdog76]

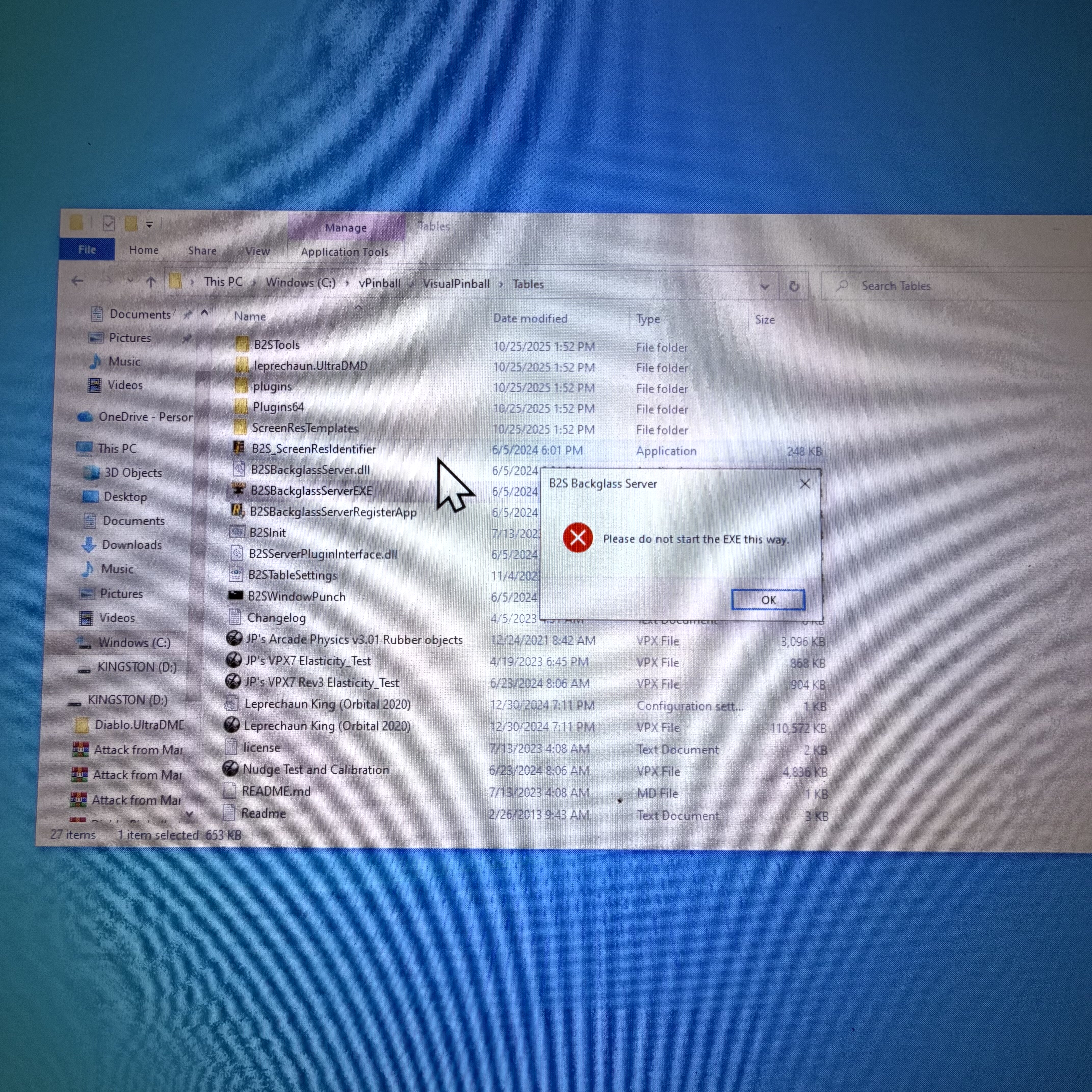

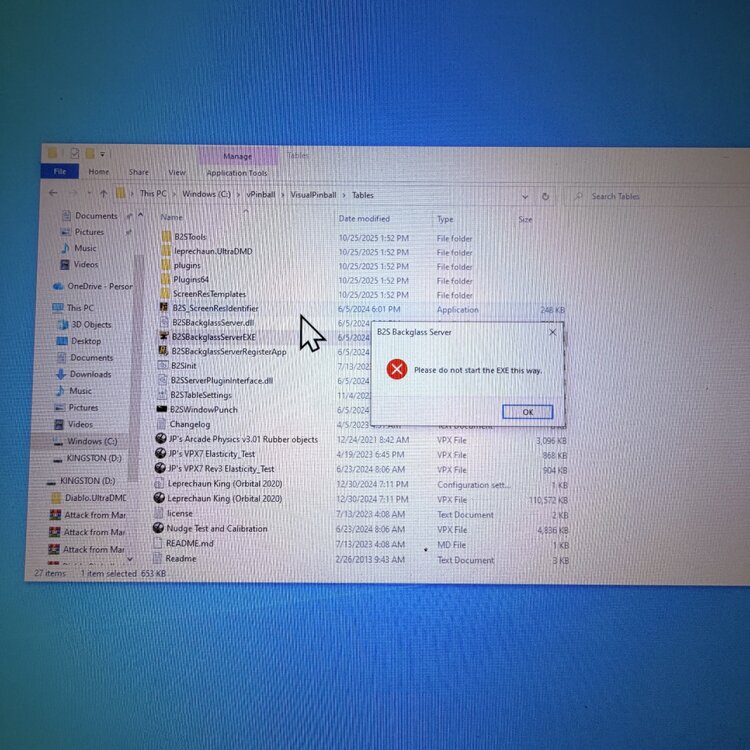

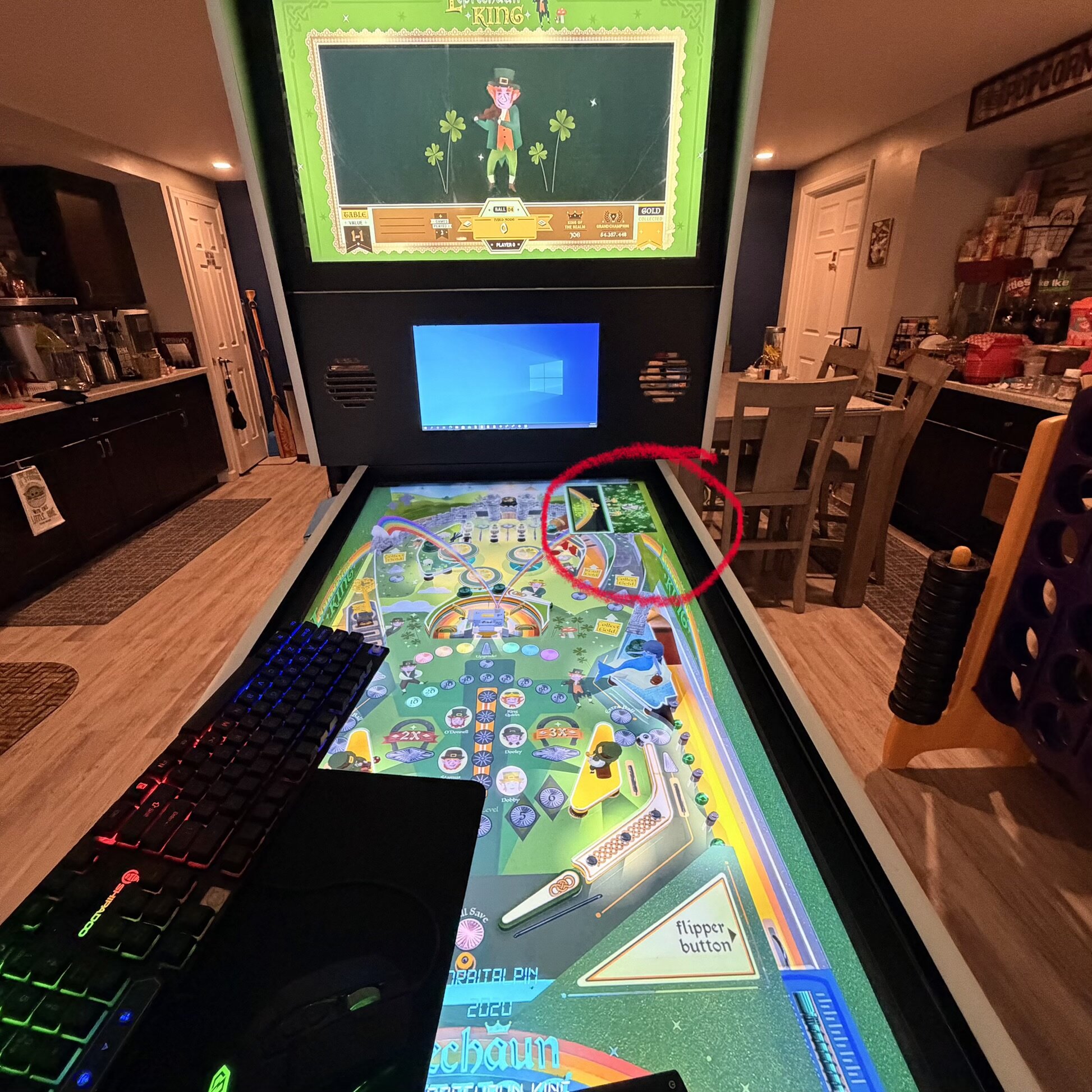

I used baller installer to get rolling. I can get tot the front end and see the 2 default tables. The dmd shows up on the main playing field. I tried to ask AI how to fix it and it told me to go to b2bbaxkglassserver.exe and I get an error not to start the exe from there. I’m a newbie. Wondering what to do now? Any help is appreciated!



Edited October 26, 2025 by sixdog76
Wrong pic

[deadmanworking]

Yeah the program you need to run is b2s_screenresidentifier. Then position each window on the correct display.

[sixdog76]

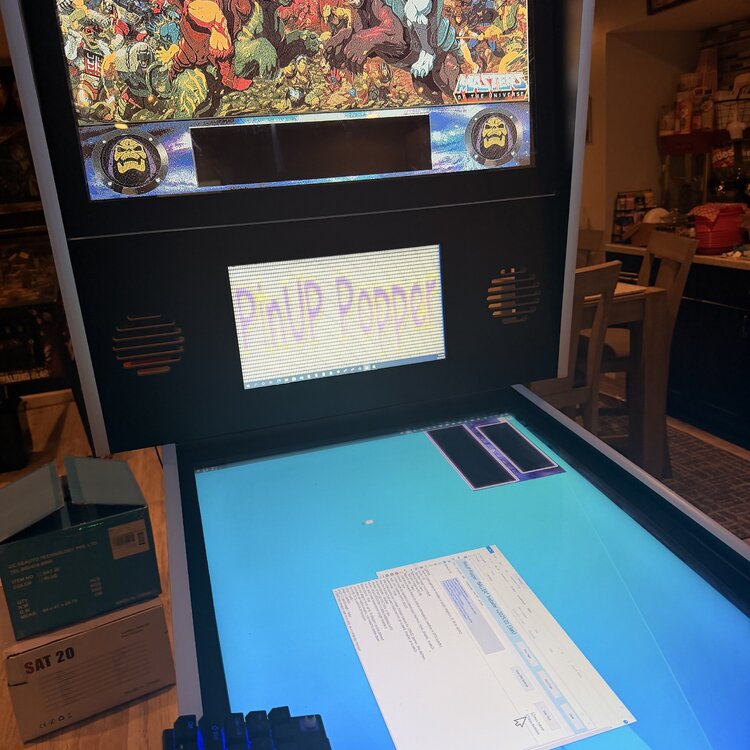

I ran b2s_screenresidentifier and was able to get the dmd screen setup. Set it as a 3 screen system. When I start the front end the dmd still is up in the corner of the playfield. I am able to drag it to the right screen but it doesn’t fill the screen and when I start the front end again it’s back on the playfield. I checked after the fact and b2s_screenresidentifier seems to still be configured correctly

[deadmanworking]

Looks like this the b2sdmd. Can you post your screenres file?

[sixdog76]

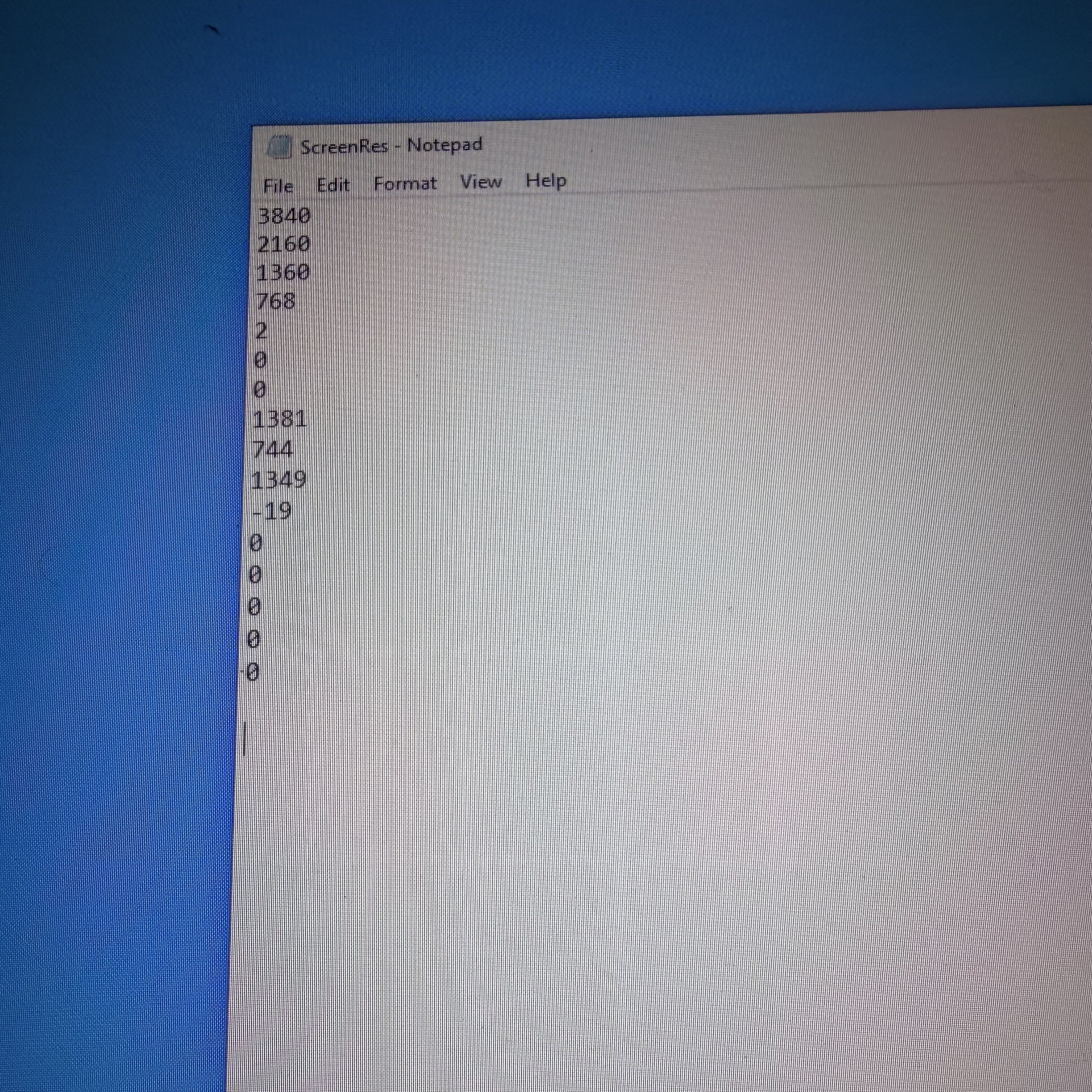

Here is the file. Thanks for helping!

[deadmanworking]

The DMD size seems off. 1381x744..

Can you please provide the screen resolutions of all 3 monitors and screenshot of their sequence in display settings? Also, do you have scaling on 100% for all 3 monitors?



[outhere]

12 hours ago, sixdog76 said:

I ran b2s_screenresidentifier and was able to get the dmd screen setup. Set it as a 3 screen system. When I start the front end the dmd still is up in the corner of the playfield. I am able to drag it to the right screen but it doesn’t fill the screen and when I start the front end again it’s back on the playfield. I checked after the fact and b2s_screenresidentifier seems to still be configured correctly

Looks like that might be the music screen from the front end run PinUpPlayerConfigDisplays.bat and make it the same location as the DMD

Edited October 27, 2025 by outhere

[gregmiddo]

On 10/27/2025 at 10:44 AM, deadmanworking said:

Yeah the program you need to run is b2s_screenresidentifier. Then position each window on the correct display.

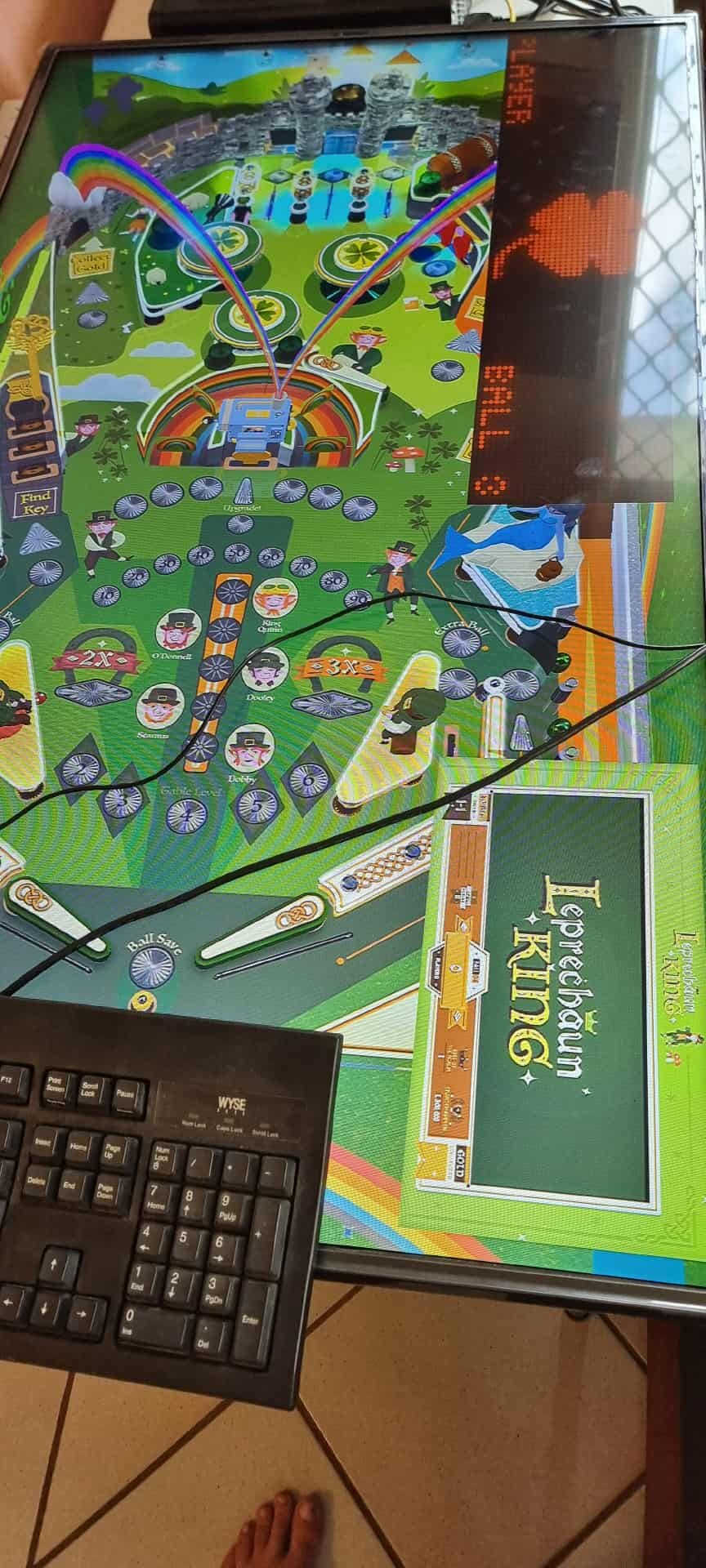

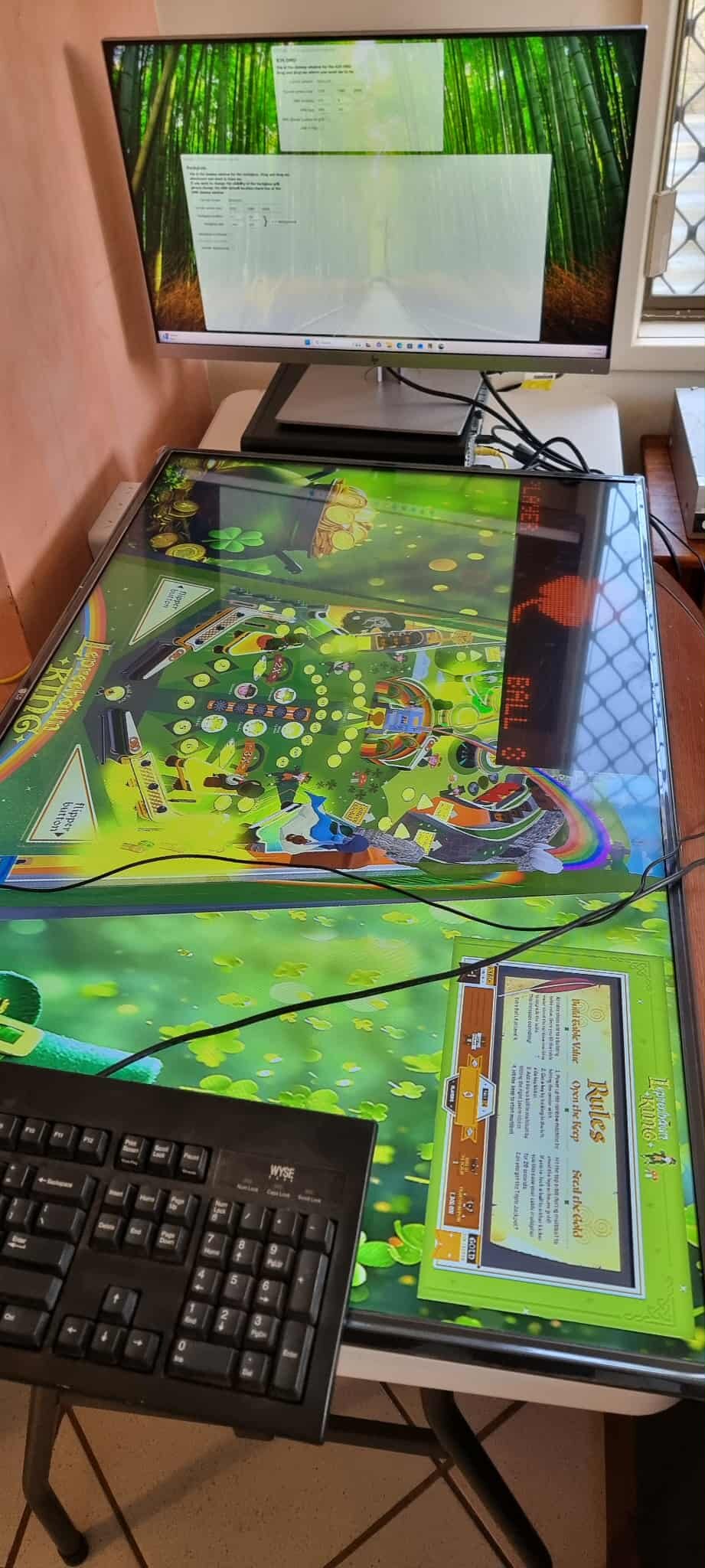

I'm in a similar boat. I ran b2s_screenresidentifier and it let me position the screens where I thought best... but no change when I run a game. DMD and backglass still on main playfield... also, I see to be in the wrong portrait/landscape mode. Hope someone can help



[gregmiddo]

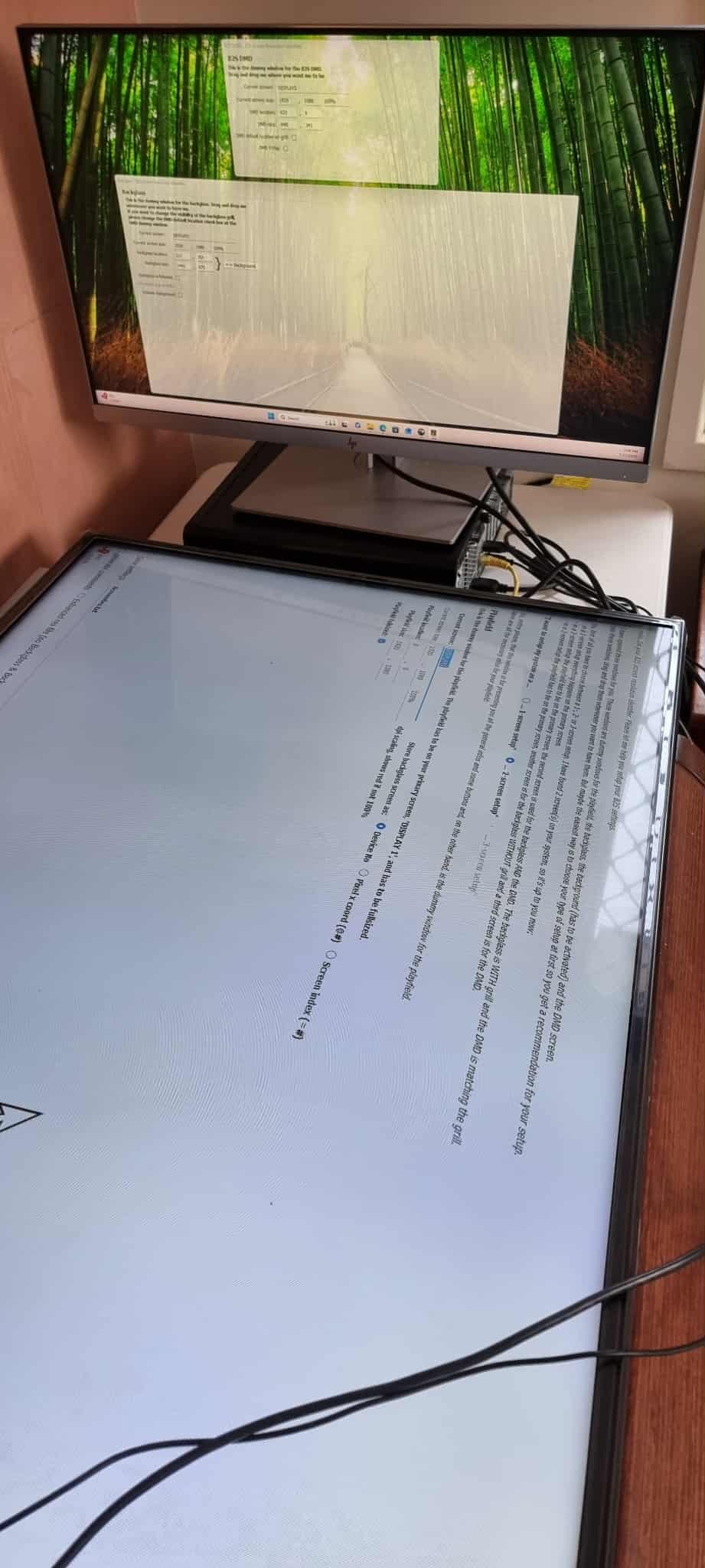

Fixed the Portrait/Landscape issue OK. Still have nothing on my second display

[gregmiddo]

This was a clean windows 11 install. Monitors are set in windows correctly

[deadmanworking]

@gregmiddo did you fix it by editing the POV or by selecting "cabinet mode" in video settings? Cause the latter is what you need to do first in order to use the other screens.

[gregmiddo]

I tried all sorts of settings but could never get it looking like it should. I even reinstalled a fresh windows and started from scratch with a single screen... still oriented the wrong way. Banging my head on the wal.. lol

[deadmanworking]

Please post your windows display settings and screenres.txt
