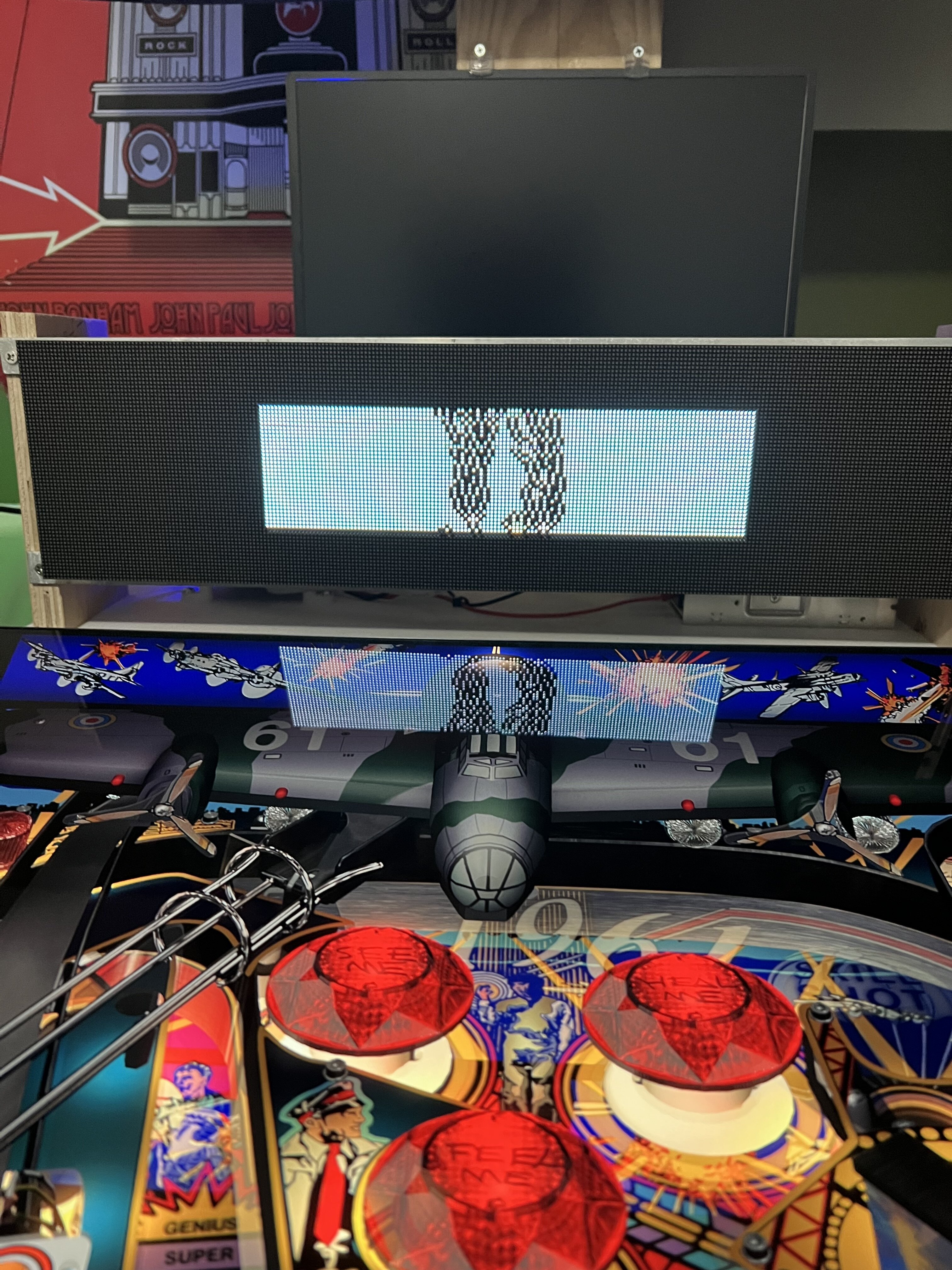

MY zedmd seems to be working I would like to thank all those for their contributions and support especially Zedrummer for this awesome dmd. I have dmd set up with P2 256 128 x 64  smd1515 panels. And everything looks really good. But the image seems small to me is it possible to stretch the image to fill  both panels ? I have spent the last few days reading everything on line that I could find but no success . i am running Arnoz s setup. ESP32 S3 N16R8 with shield. It seems like only half of the 2 panels is being used.




Posted

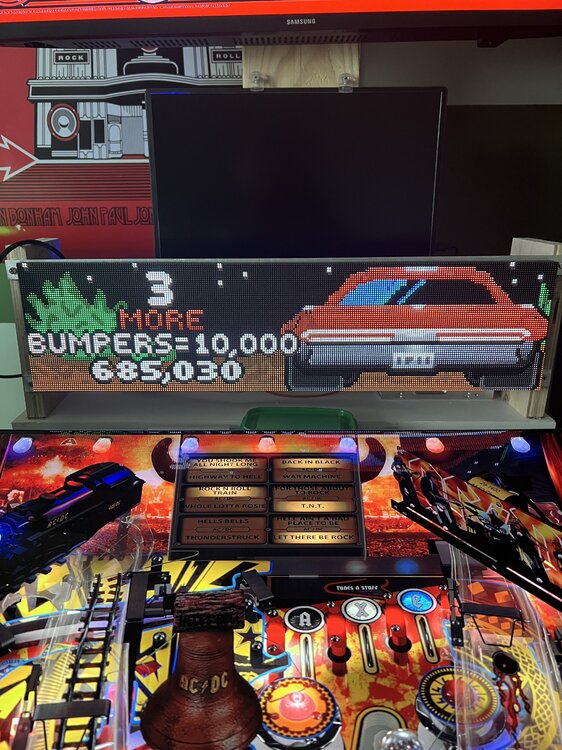

Well after several days of trying to fix. Today after making one change in the DMDDevice ini. problem has been fixed. Full screen it is super awesome. It was just a matter of turning if false doesnt bother looking for a zedmd enabled I had true and changed it to false. Then down on the bottom there was a line that said zedmdhd and enabled it to true. A simple fix that took many hours of scratching my head.IMG_3272.thumb.jpg.b3fefbaa20e2f6a33615956245ea1169.jpg
