Howdy,

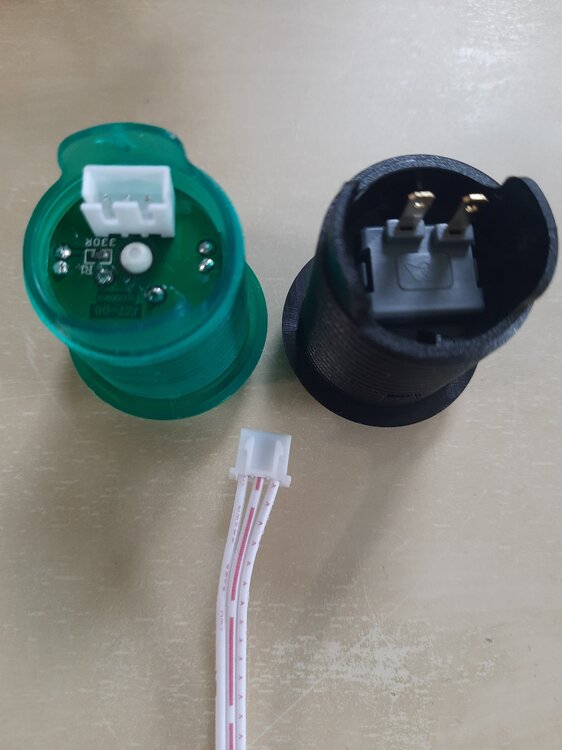

Can please someone tell me how to connect the pictured cable to the black button?

The cable and the green button came from the EG STARTS set, all buttons have light and were simply connected by the plugs.

As the black Gold leaf button dont has/needs light, I have to know which two out of the three wires I need and - if necessary - the constellation I have to connect them with the button...

Many thanks for your help, it is the missing 10% to finish my controller and I am so keen on playing now 😁🤣


Edited by Calafati
