Legends Pinball HD Wiring

Roachie305
 Share

Recommended Posts

Roachie305

Roachie305

Posted
Posted

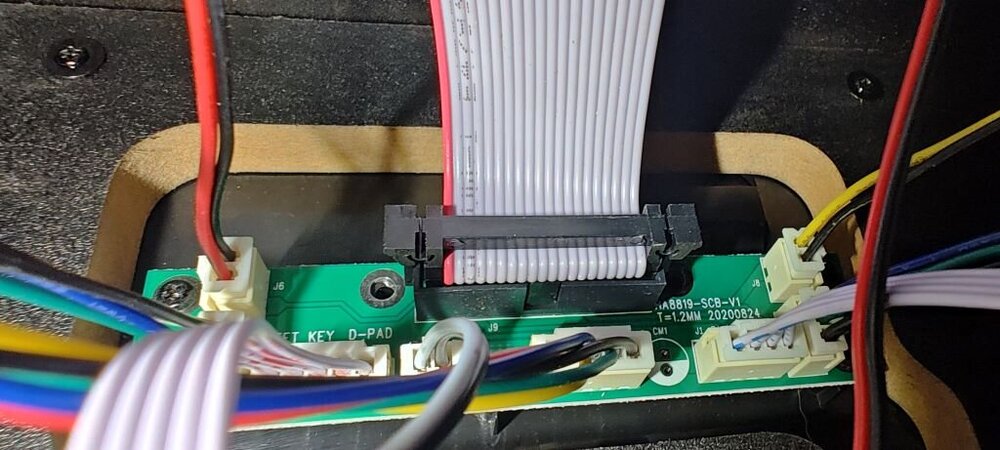

Can anyone tell me where J8 connects to from the front board where the flippers connect Black/Yellow wire.

I believe it has to do with the accelerometer since nudging isn't working, but I don't see where to physically connect it.

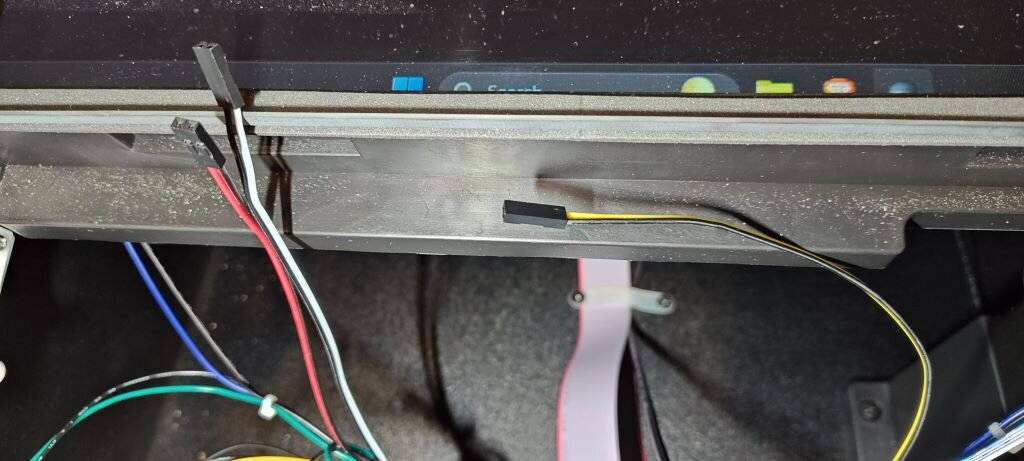

3 wires.jpg
