PIN2DMD with VpinMame 3.6 (64bit) can work ?

[nvideos]

Hello. Greetings everyone.

Firstly, I want to mention that I've never posted on the forum, so if I make a mistake or break any rules, I apologize in advance.



I have a DMD with Lucky's Colorprism V4.53 firmware (pin2dmd). The PCB is the deprecated STM32F407. I have it running in VpinMame 3.5 32-bit and it works wonderfully, but now I need to use it in VpinMame 3.6 64-bit, and unfortunately, it doesn't work. I've used Zadig v2.9 and installed the WinUsb driver (v6.1.7600.16385) for ST-Link Debug, and the driver (libusbK 3.0.7.0) for PIN2DMD.



When I boot Windows, the DMD displays your intro indicating the firmware version. Then, when I boot VpinballX, the DMD displays the VpinballX animation. On the other hand, when running the test from VpinMame on any board, having assigned a cabinet and using an external DMD, the test is executed virtually on the playfield screen.



The system is running over w10 Pro 64bit

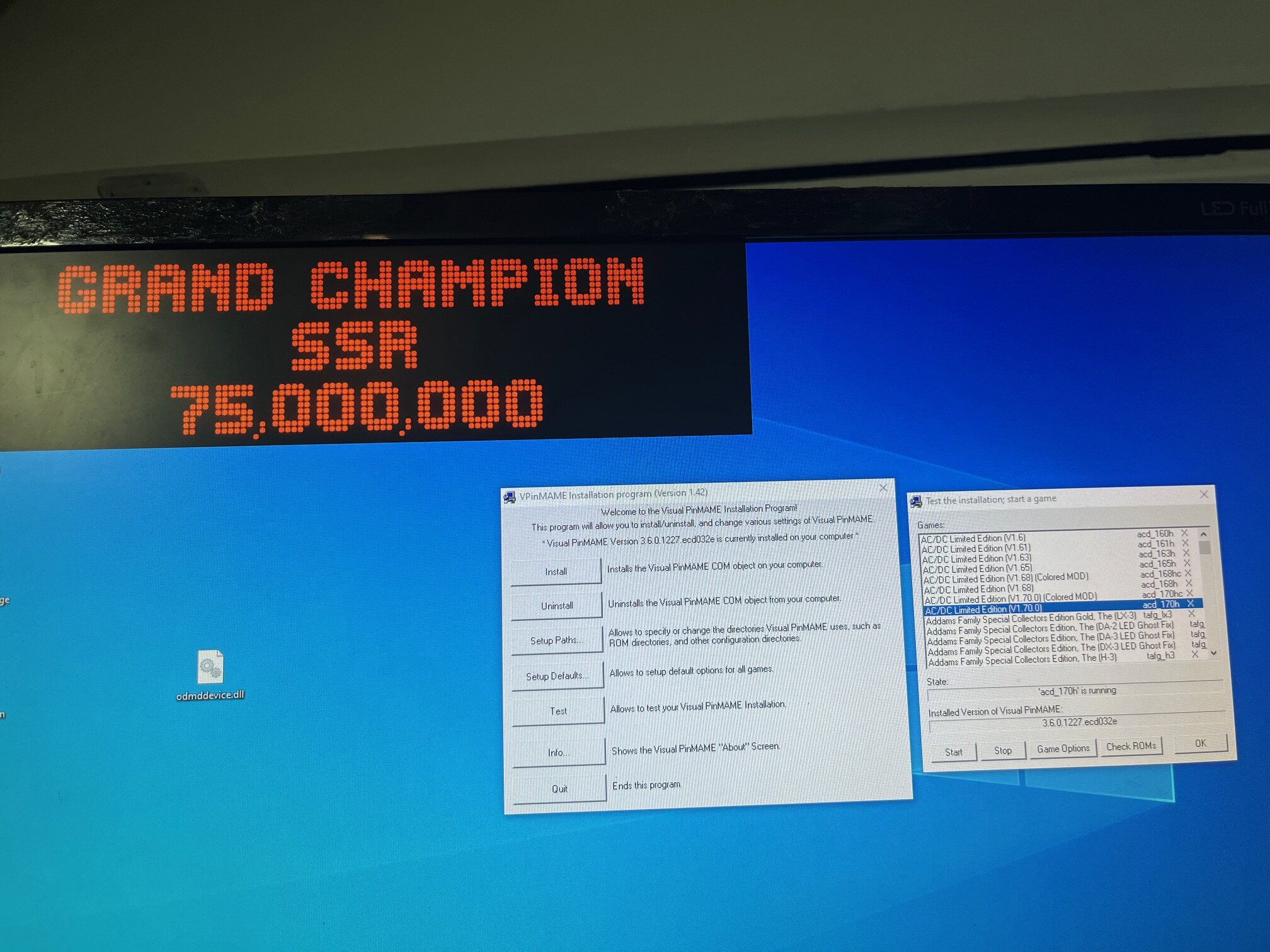

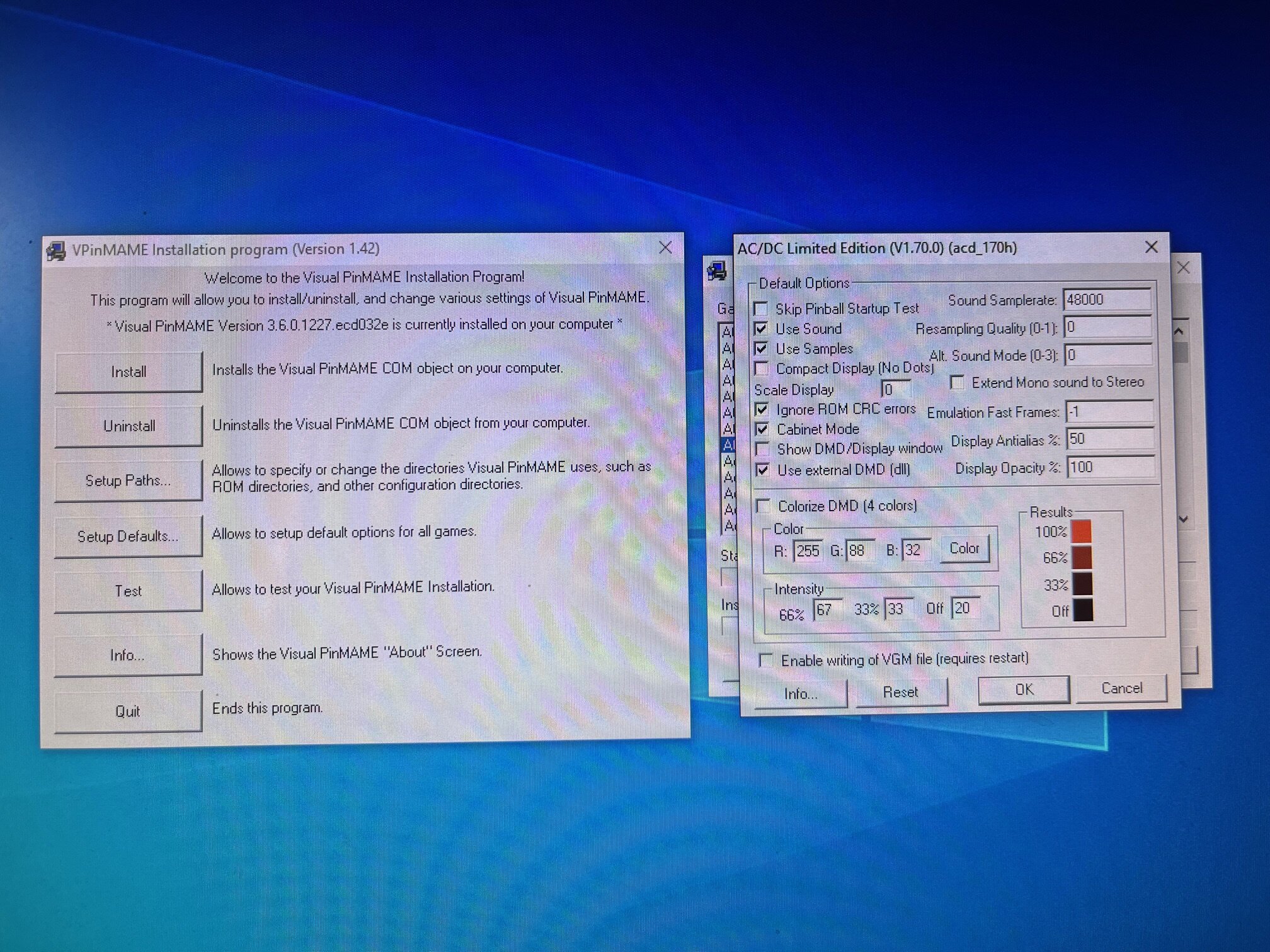

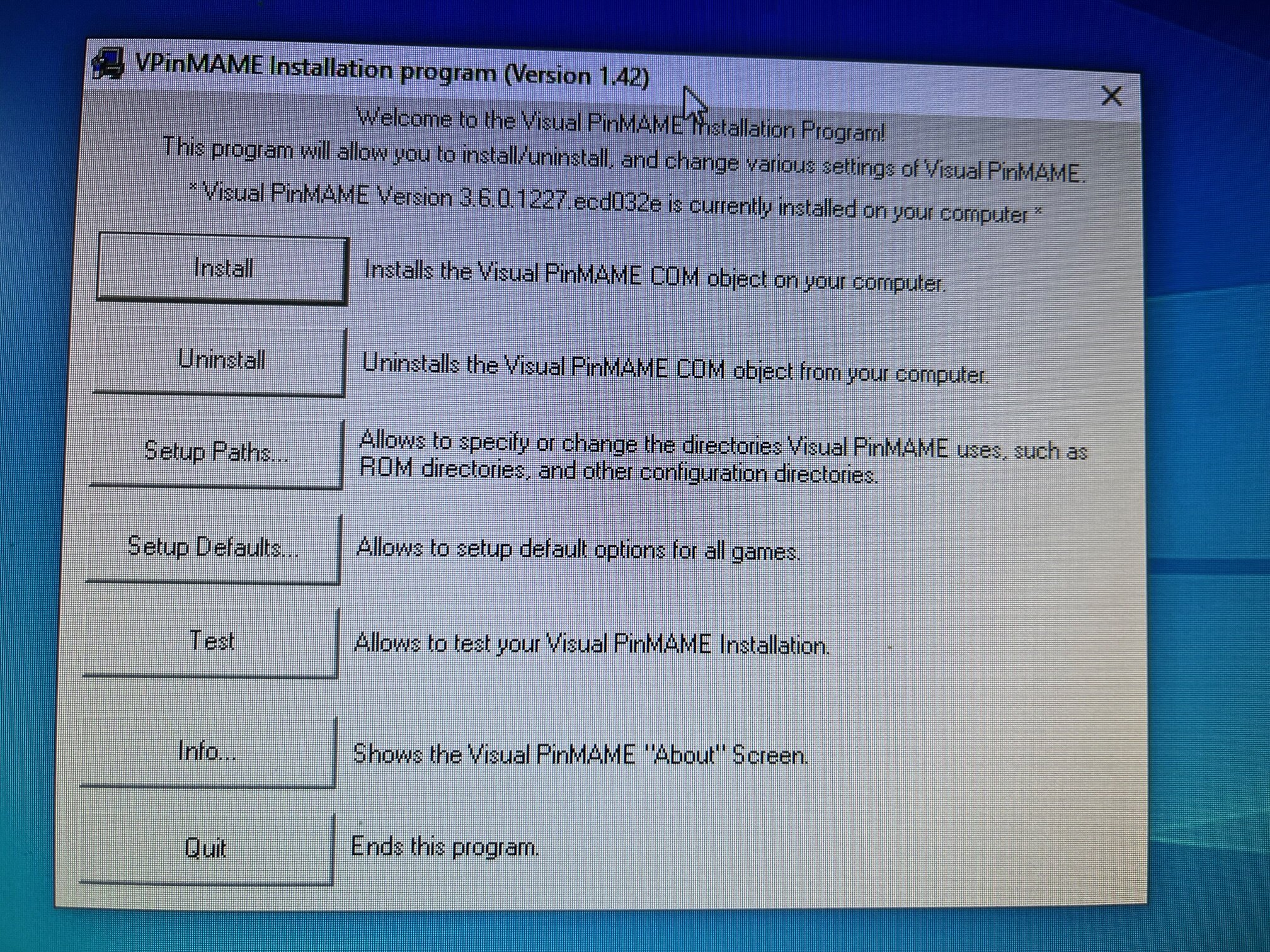

As you can see in the images, even though the setting indicates that it uses an external DMD, it still launches the virtual DMD.



I hope someone can help me, please.



Thanks.

Edited April 2, 2025 by nvideos
Add more Informatión..
