[SOLVED] Simple issue I can't seem to find the solution for

[Andyman]

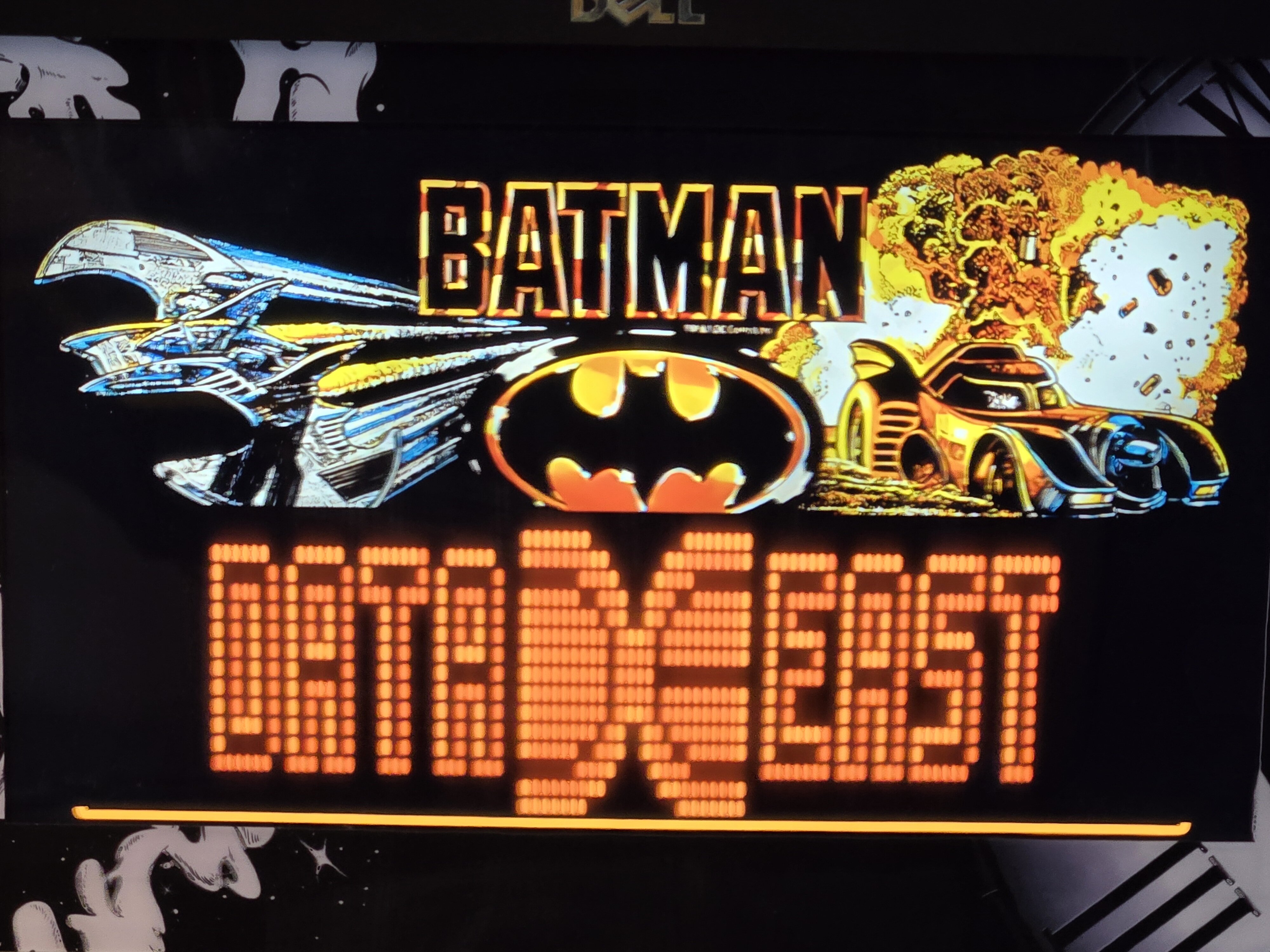

As you can see from the attached photo, my DMD is somehow too large and covers part of the FullDMD image it's supposed to be residing inside. This happens on every DMD game. I've gotten the other types to work fine.



I'm very sure there's a simple fix for this. I've tried the F1 menu, but that's just an on/off toggle. I've also dug through this site and the other one but didn't find the answer. Would some kind VP guru clue me in? Thanks in advance!

Edited January 27, 2025 by Andyman

[Cliffy]

3 hours ago, Andyman said:

As you can see from the attached photo, my DMD is somehow too large and covers part of the FullDMD image it's supposed to be residing inside. This happens on every DMD game. I've gotten the other types to work fine.



I'm very sure there's a simple fix for this. I've tried the F1 menu, but that's just an on/off toggle. I've also dug through this site and the other one but didn't find the answer. Would some kind VP guru clue me in? Thanks in advance!

It's all in the dmddevice.ini in your vpinmame folder. As long as you are running external dmd (Freezy or Lucky1 dmddevice.dll's) you can grab a corner with the mouse and resize and position, then right click and save for this game. It will add an entry to the dmddevice.ini. Example;

[btmn_106]
scalermode = scale2x
scaletohd = true
virtualdmd left = 33
virtualdmd top = 196
virtualdmd width = 472
virtualdmd height = 118

[Andyman]

Aha! I knew it had to be something simple like that. Thank you! Very much appreciated.
