Partlist V4 Shield for use as virtual Pinball only

[IGM4]

Hello,

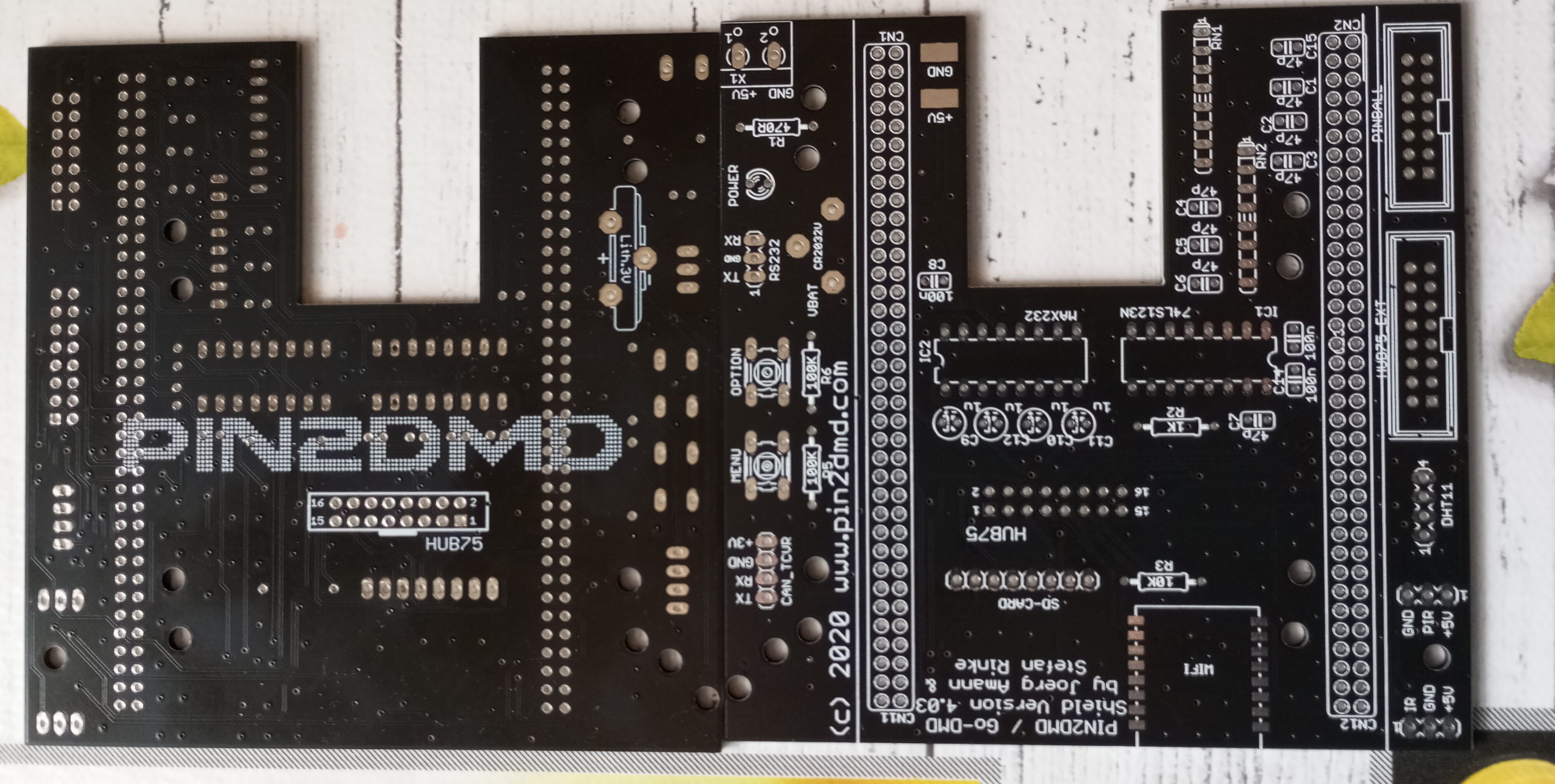

I'm a complete newbie when it comes to virtual pinball machines, so far I've only worked with classic pinball machines. Now I have started building a virtual pinball. My question, to which I can't find a proper answer, is what is the assembly plan for the V4 Shield, photo below of my platine front and back, if I only use the DMDs in the virtual pinball machine? As far as I have read, the shield when connected to the PC is only used to provide power and to connect the display. Maybe someone can tell me exactly what I need. If possible I would like to keep the amount of soldering work as low as possible.



Thank you very much for answers now.



Sorry for my English, have to use Google Translate.

[Rappelbox]

The most soldering work are the two pin rows. There’s no way around.
you need to solder at least:

Hub75_ext pin connector or hub75 connector

screw terminal

Led

led resistor

buttons

button resistors

2x 36x2 female pin header

2x 36x2 male pinheader on the nucleo board

optional: microsd module

my personal recommendation:

do ALL the soldering, it’s done in a few minutes since the most work are the pin headers anyways.

[IGM4]

Great, thank you very much for the quick answer! This is exactly what I was looking for. Soldering is not the problem. I didn't want to stock everything, just what I really needed. Then I'll order the parts and report here whether everything worked.



Thanks!
