Pin2DMD color Issue: Black screen and LD4 blinking

[Fabio_Spartacus]

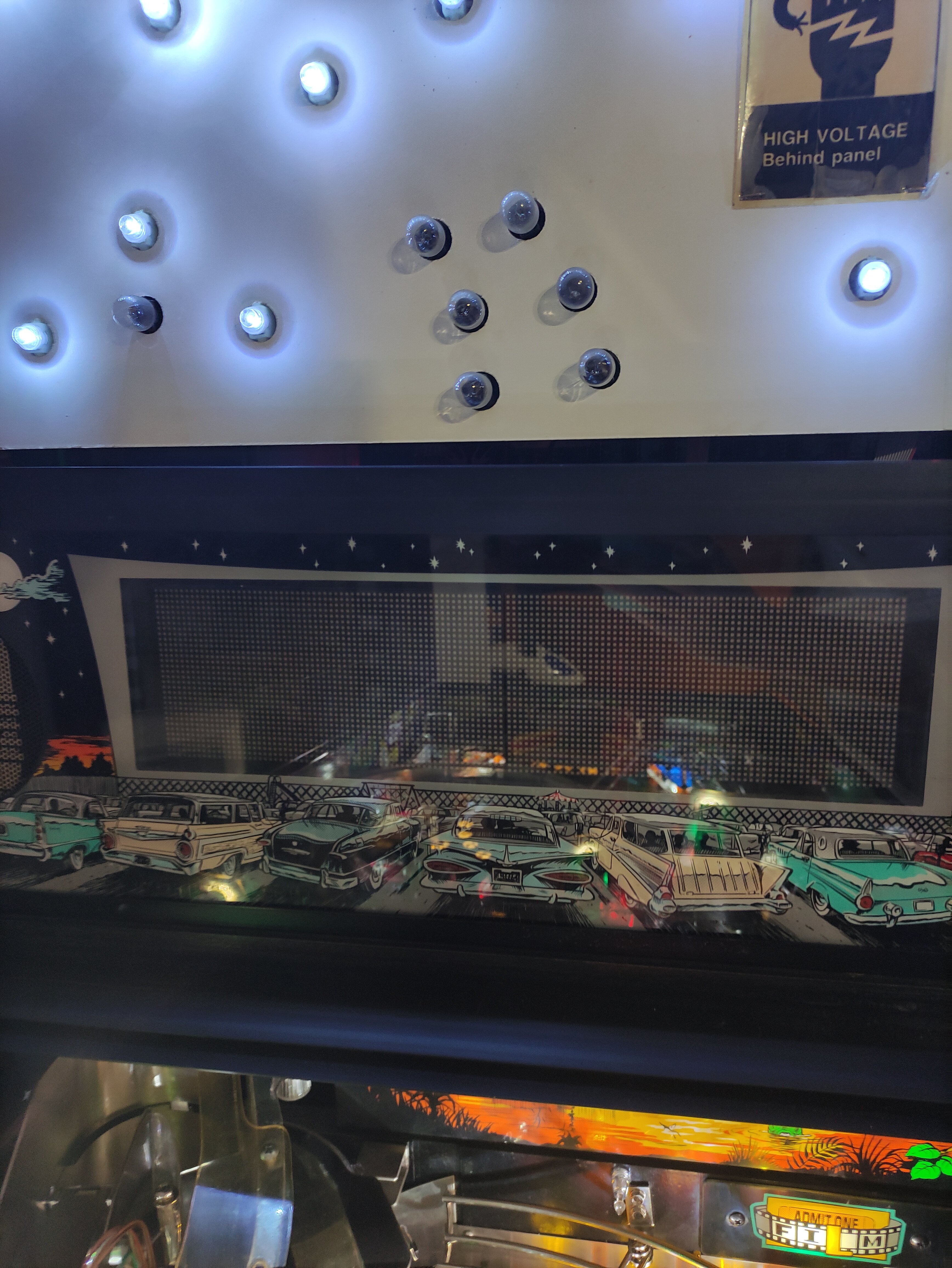

Hi everyone, I received a first version Pin2dmd color display, I connected it to 5v, but when I turn on the pinball machine the screen remains black.

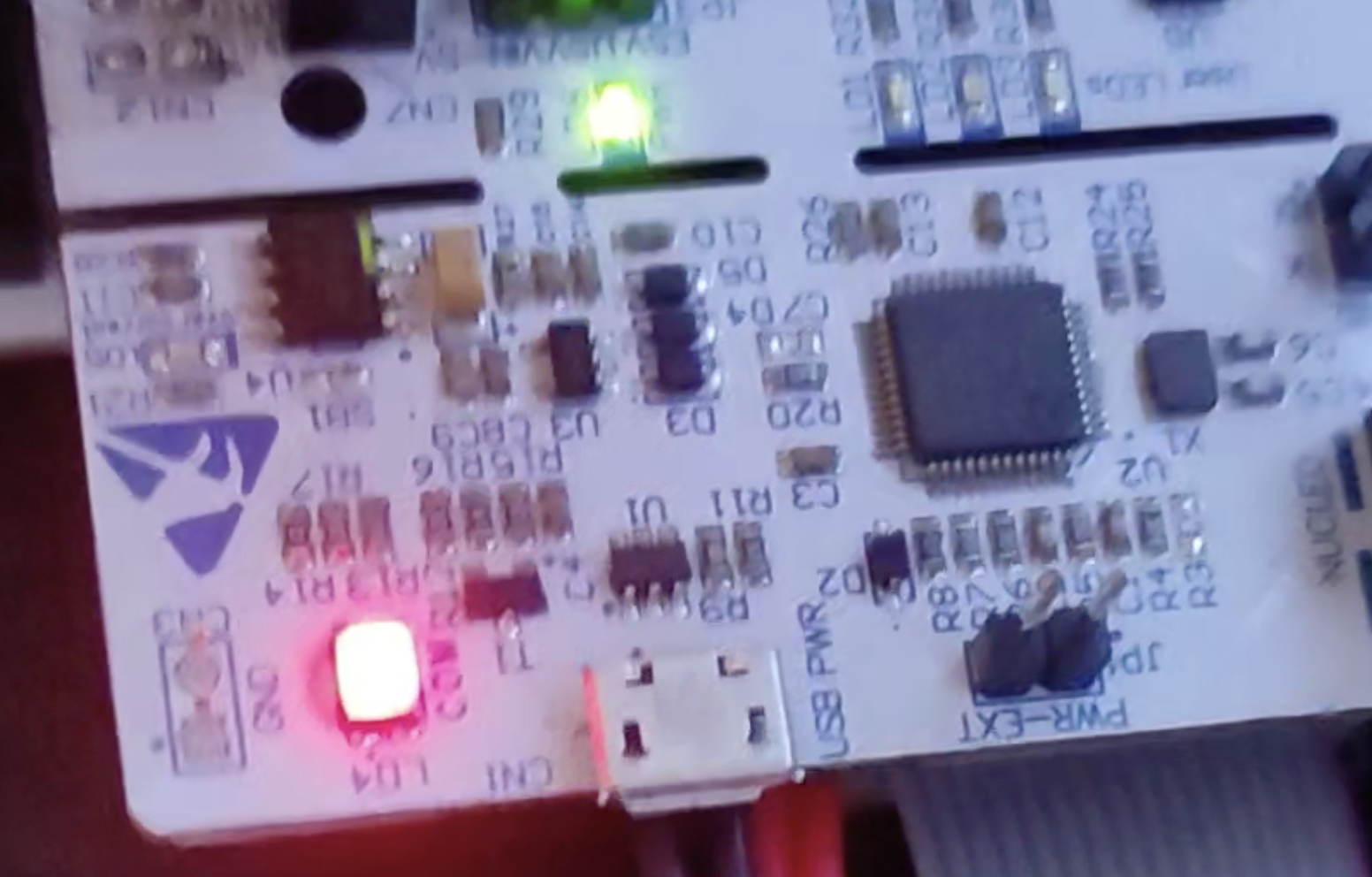

On the back, the power LED is on, while the LD4 LED flashes red (see attached video). the DMD was on a medieval madness and now I'm putting it on a Creature. I also tried deleting the psd and pal files but nothing changes. what can I do?
Thank you

[lucky1]

Are you sure there is a firmware installed ?

https://pin2dmd.com/installation/#1.1





[Fabio_Spartacus]

On 7/23/2024 at 8:26 PM, lucky1 said:

Are you sure there is a firmware installed ?

https://pin2dmd.com/installation/#1.1





Hi lucky1 , thanks for your answer.

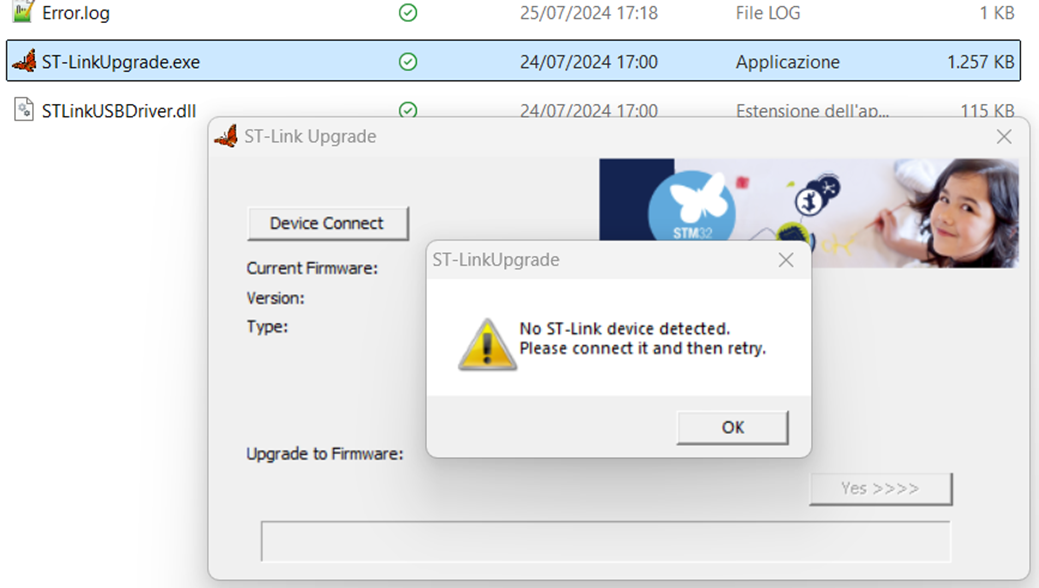

After your message I tried to install the fw, but I received the error "ST Link device not found"; then I read another topic where you indicated to power the DMD because the USB connection is not enough to power it. I didn't turn it on, i'll try again tonight and update you.
In the micro SD there was already the activation file and a .PAL and a .DAT file, should I leave them in?

[Fabio_Spartacus]

On 7/23/2024 at 8:26 PM, lucky1 said:

Are you sure there is a firmware installed ?

https://pin2dmd.com/installation/#1.1

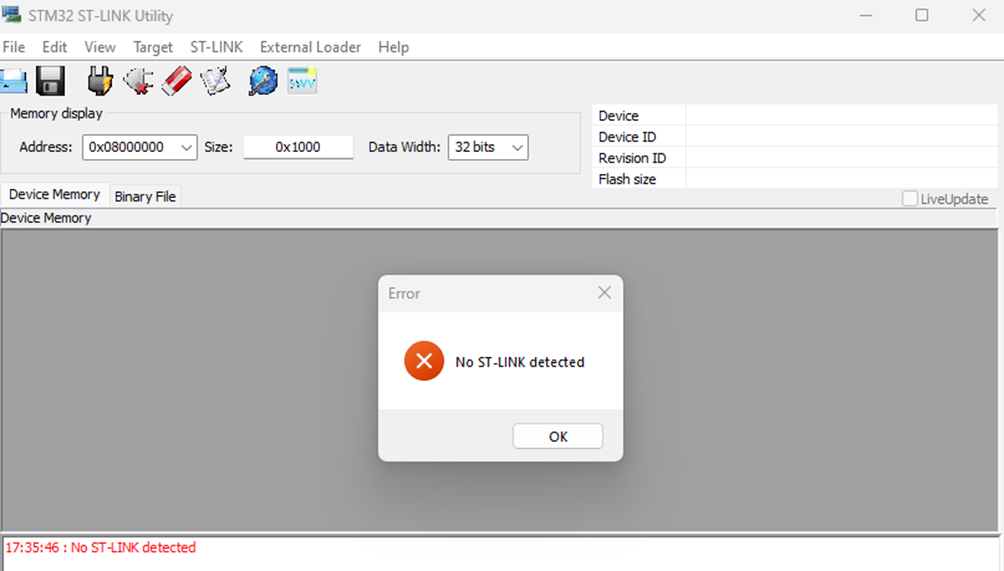

hi Lucky1, i tried to redo the whole procedure but I still get the same error:





I connected the DMD both to the USB socket in front of the micro SD and to the one next to it. Then I turned on the pinball machine but it doesn't detect the DMD... what can I do?
Is there a way to reset it to factory settings?

[lucky1]

This is the ST-Link USB to be used for programming. It should be auto detected by Windows as a USB drive and a ST-Link interface. You should also be able to install the binary by just copying it to this USB drive Here is the correct file location on my github



https://github.com/lucky01/PIN2DMD/blob/master/firmware/latest/V4 NUCLEO-144/PIN2DMD.bin

[lucky1]

If this does not work ask the seller of the display for support.

[Fabio_Spartacus]

10 hours ago, lucky1 said:

If this does not work ask the seller of the display for support.

thanks, i tryed with 2 pc with windows and 1 pc with ubuntu, nothing to do.

i'll ask to the seller.

thanks for your time

[WanderLeonel]

This mine when put the sd card display off. What can do??

[lucky1]

16 hours ago, WanderLeonel said:

This mine when put the sd card display off. What can do??

IMG_0128.mov



I guess your SD card or reader module is generating a short circuit.

Maybe you used the wrong SD slot module or have bad solder joints?

[WanderLeonel]

I think I mount it wrong. I switched sides on the V4 board and now I put the card in and I no longer have the problem. But I'm waiting for the activation key.

Thanx @sortudo1



Edited July 31, 2024 by WanderLeonel
