Content Provider lucky1 Posted October 17, 2019 Content Provider Share Posted October 17, 2019 As more and more start to order EVO PCBs fully assembled at chinese manufacturer and I get asked the same questions again and again, I though I open a thread about questions and their solution. Please post all questions that get asked from your manufacturer during the production process here. First of all I made a video of how to order pcbs for turnkey assembly at pcbway. Here it is ... Link to comment Share on other sites More sharing options...
fly Posted October 18, 2019 Share Posted October 18, 2019 Thanks Link to comment Share on other sites More sharing options...
fly Posted October 19, 2019 Share Posted October 19, 2019 I don't have a calculation, I did everything like in your guide. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted October 19, 2019 Author Content Provider Share Posted October 19, 2019 You have to wait a few days to get your individual quote. Link to comment Share on other sites More sharing options...
fly Posted October 19, 2019 Share Posted October 19, 2019 ok, thanks Link to comment Share on other sites More sharing options...

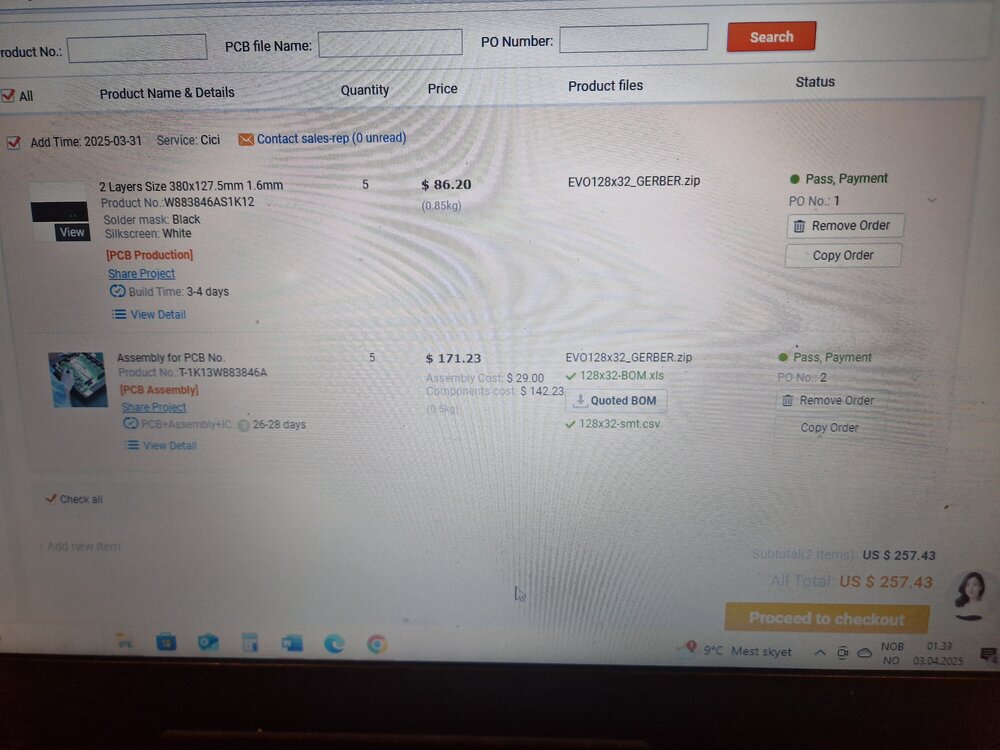

TinyBlackDog Posted October 26, 2019 Share Posted October 26, 2019 Thanks very much for this Lucky1. I’m awaiting a quote for 5x EVO 128x32 boards. What approximate price have people been quoted for these? My quote looks just like Fly’s screenshot above and I guess the component prices will get filled in after review. Link to comment Share on other sites More sharing options...
dzorbas Posted October 27, 2019 Share Posted October 27, 2019 Excellent idea to start this thread! This was my first order of 5 boards to PCBWay but it was subject to a discount. They only charged me $30 for assembly. These were shipped to Canada via DHL. I ordered another 10 after this and the assembly charge was $175. The total came to $571. During the process I was asked to veryify the BOM. They will send the list back to you with a number of equivalent replacement parts. I think it is just easier for them to source some components locally. They also asked me to verify the orientation of a couple of components. I asked Lucky1 to confirm as I had no clue. I believe that there is a way to share the order on PCBWay so that others can basically order the exact same thing. I will see what I can find out. If anyone is using another manufacturer with better pricing, I'd be interested to hear about it. It was really easy to deal with PCBWay so for the time being I will continue to use them. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted October 27, 2019 Author Content Provider Share Posted October 27, 2019 5 hours ago, dzorbas said: I believe that there is a way to share the order on PCBWay so that others can basically order the exact same thing. There is only the option to share projects, which I did. You can´t share orders afaik. Link to comment Share on other sites More sharing options...
dzorbas Posted October 27, 2019 Share Posted October 27, 2019 Thanks for the clarification. I think early on, when I was first placing my order, the PCBWay customer service rep was asking if I could get you to share your order. I'm guessing it was just for printing the boards, not the full assembly. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted October 28, 2019 Author Content Provider Share Posted October 28, 2019 That is what I did here https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x32_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO192x64_RGB_LED_Dotmatrix_Pinball_Display_Controller.html https://www.pcbway.com/project/shareproject/PIN2DMD_EVO128x16_RGB_LED_Dotmatrix_Pinball_Display_Controller.html but you have to add the turnkey assembly option like shown in the video Link to comment Share on other sites More sharing options...
dzorbas Posted November 3, 2019 Share Posted November 3, 2019 I noticed that you updated the parts list a few months back. I'm not sure what copy of the files I have uploaded to PCBWay, it may have been the older ones. I keep just using my original order as a re-order so it is very simple. Would it be better to update all the files to your new ones or am I okay to keep using the older files? You mentioned that it was a minor change in the parts list. Anything to worry about or should I just upload the latest ones? Thanks. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted November 3, 2019 Author Content Provider Share Posted November 3, 2019 If only the partlist changed and your displays are working there is no need to update. Link to comment Share on other sites More sharing options...
fly Posted November 4, 2019 Share Posted November 4, 2019 . Link to comment Share on other sites More sharing options...
bsanders Posted January 13, 2020 Share Posted January 13, 2020 Thanks luck1. The process was very easy to follow. I have some extra from a batch build. PM me if you are interested. US shipping. Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 10, 2020 Share Posted February 10, 2020 good, I have a doubt in the part of the pcb assembly. After a field that is assembly slide, in that field is not to put both side? is that I saw some images of pin2dmd and on top it has the chips and the rest of the electronic components like smd capacitors and smd resistors, but the pcb has a connector that is underneath. this connector underneath fits the led panel. it's easy to flash the firmware how do you do it ? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted February 10, 2020 Author Content Provider Share Posted February 10, 2020 2 hours ago, PedroFilipe said: it's easy to flash the firmware how do you do it ? https://pin2dmd.com/installation/ point 1.2 Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 10, 2020 Share Posted February 10, 2020 Thanks,I have to install the program st link and then upload the bin file of the code through the mini usb cable certain ? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted February 10, 2020 Author Content Provider Share Posted February 10, 2020 Point 1.2 is 1.2 Installation using DFU boot mode (EVO board and other custom controller without ST-Link interface) Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 12, 2020 Share Posted February 12, 2020 thanks, there are several different pcbs, what was the last pcb made ? Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 12, 2020 Share Posted February 12, 2020 to put the firmware on the 128x32 evo pcb i have to connect the mini usb cable to the display, but besides that I have to supply the display with an external 12 volt source certain ? Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted February 12, 2020 Author Content Provider Share Posted February 12, 2020 1 hour ago, PedroFilipe said: to put the firmware on the 128x32 evo pcb i have to connect the mini usb cable to the display, but besides that I have to supply the display with an external 12 volt source certain ? Yes Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 12, 2020 Share Posted February 12, 2020 thanks, there is some pin2dmd pcb for led panel 128x32 for williams that is small, the size is in the image ? Link to comment Share on other sites More sharing options...
dzorbas Posted February 13, 2020 Share Posted February 13, 2020 Here's what they look like assembled. I'm not sure what board you have there. Looks like it might be a larger one with 3 LED panels. Link to comment Share on other sites More sharing options...
Content Provider lucky1 Posted February 13, 2020 Author Content Provider Share Posted February 13, 2020 10 hours ago, PedroFilipe said: thanks, there is some pin2dmd pcb for led panel 128x32 for williams that is small, the size is in the image ? That is a custom board germangamingsupplies used in the early days for the first pin2dmd XL. It is not used anymore and has been replaced by the EVO pcbs. Link to comment Share on other sites More sharing options...
PedroFilipe Posted February 13, 2020 Share Posted February 13, 2020 thanks Link to comment Share on other sites More sharing options...
