no bs this time hot news gnd hack pin 4 stayed wired between stm and panel but pin 8 and 16 wired together direct to panels from power pack and 2 gnd pin 8 and 16 hub 75 remove from stm32 discovery output a hack double gnds on power pack 17/07/2017


Recommended Posts

addded 2 gnds 240 volt cable and solided to 2 way hub on top also double the grounds from power pack

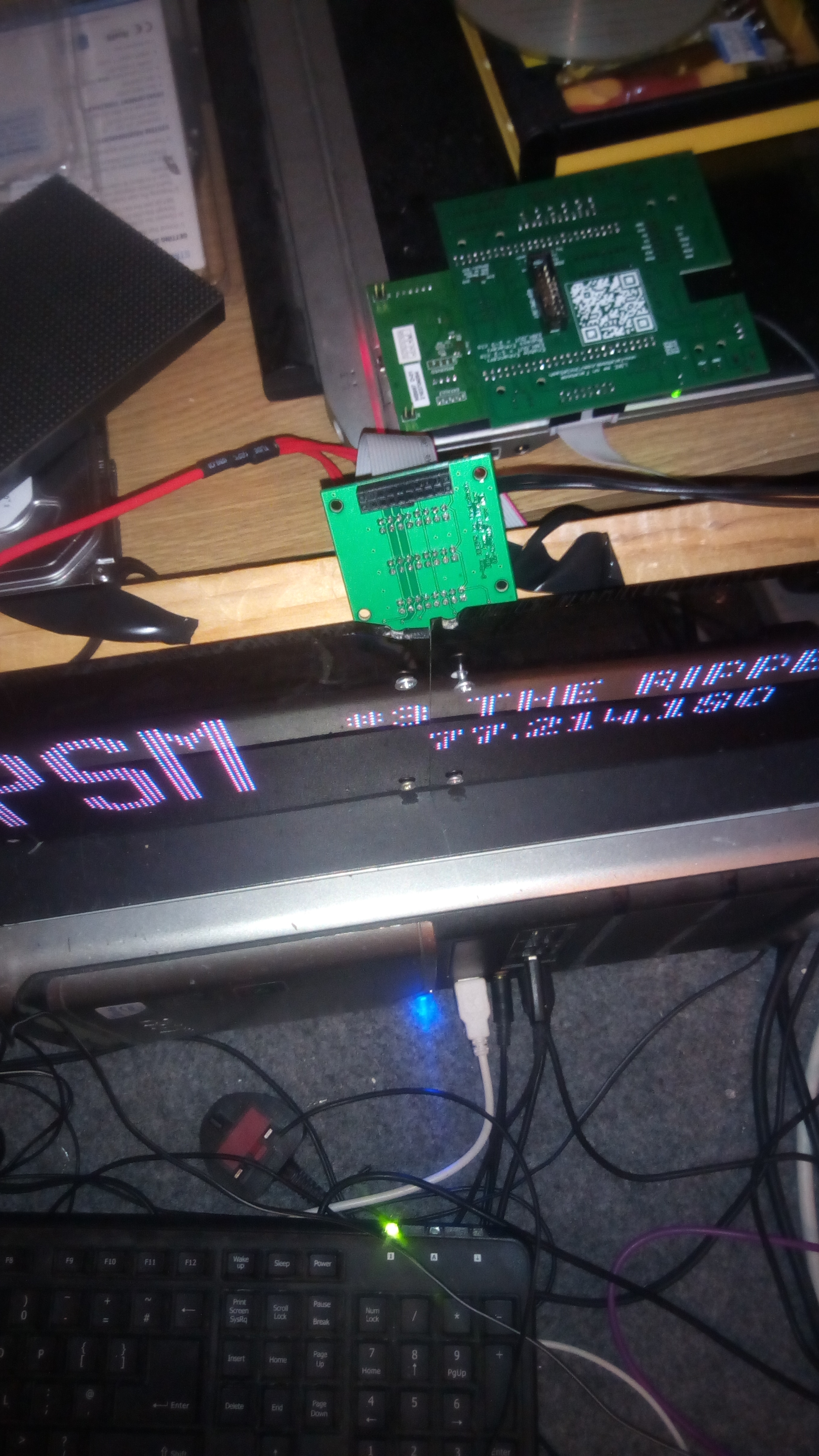

as i helps and make grounds stronger as pictured below


take note that - negative are wired together from power pack screw tap

also moved voltage resister maked (201) above says v+ adj on power pack  @ 4.81 volt




scratched duel shield with screw driver and added gnd and solidred

cable hopefully uncal sasha will add a gnd tag in rev v2.0 version





thicker cable needed between power pack and panel 5volt red and black - to help noise and amp drain

http://m.ebay.co.uk/itm/21-AMP-1-5mm-ROUND-12V-24V-2-Twin-Core-DC-Power-Cable-Wire-Car-LED-Light-Auto-/322538821623?var=&hash=item4b18cfd7f7%3Am%3AmdZKAKRETOvjsj2GQtjBRYQ&_trkparms=pageci%3A60e9ba41-68bc-11e7-b8e3-74dbd180c7ac%7Cparentrq%3A4235972615d0aa12eb5663e6ffe7b3f8%7Ciid%3A6

i also notice  if i wire pin 16 and 8 i lost leds reverse it and they come back on

p5 updated and fixed finaly pin 16 from stm to gnd of power pack

also ask seller to supply 1 meter of 5 volt + cable the black -5 are tide off and split between

 p4 update below read this message to uncle sash to understand a fix sm5166p


videos of above fix

received_1336855859770118.mp4

received_1336855343103503.mp4





this also give me a idear to make a pcb dasiy chain rather then a cable one

wiith 2 male hub  on a pcb

so pin 1 2 3 4 5 6 7 9 10 11 12 13 14 15 stay conected between stm output and panel input

pin 8 and 16 wired together and add gnd from power pack to them can a special pcb be made





panels  that i have all tested and works

Check out this recommended store on AliExpress. Find great products at low prices!
http://s.aliexpress.com/63yE3yEZ

Check out this recommended store on AliExpress. Find great products at low prices!

http://s.aliexpress.com/NRrYZNVf





wiring video and testing

received_1333064116815959.mp4

received_1333062453482792.mp4

p5 remove pin 8 16 on daisy chain and between stm 32 and panel keeping pin 4 connect with gnd in the middle


pin 16 and 8 on daisy chain on panel right  tied off from left panel pin 4 only



all pins 4 8 16 all tied off on input of panel

I was also thinking of changing the gnds swaping pin 4 for 8 8 for 4 keeping 16 on the chain

as 1 gnd for each

red a b = gnd 4

blue a b = gnd 8

green a b = 16

incase panels are wired

old video look at the top one on p5
