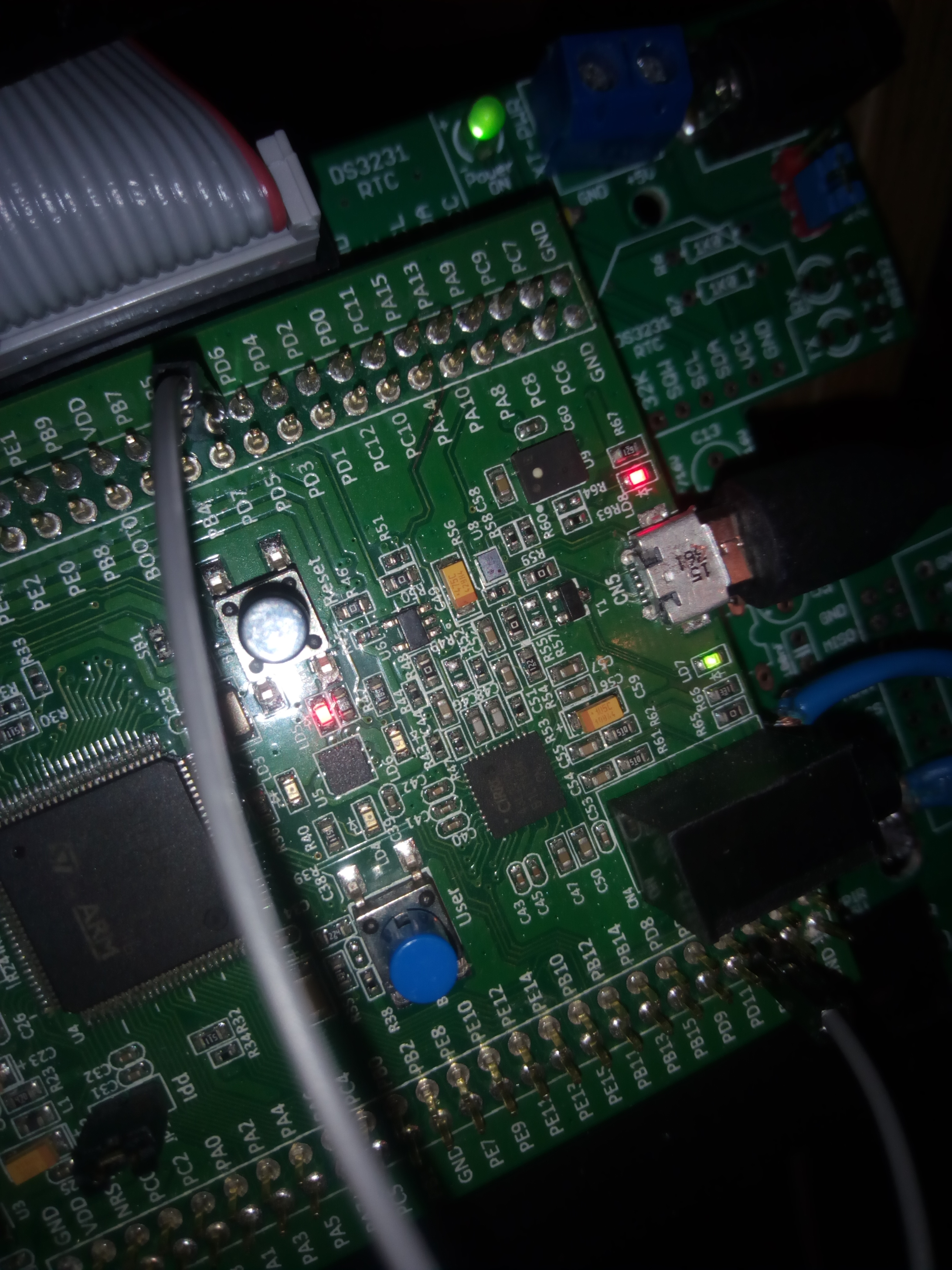

final fix swd pin 3 8and po15 i/o bridge from gnd power pack also disable frame blue led on stm 32 sorry didnt know i could hook up a I/0 to gnd this works :) please test and let me know better swiching between stm mcu and power pack

psmmacker

Recommended Posts

psmmacker

psmmacker

Posted
Posted

this is the best methood seem the pc and power pack are switching via io pin and swd pin 3

dont know why its working may need a resister or diode on i/o





new update 29/06/2017

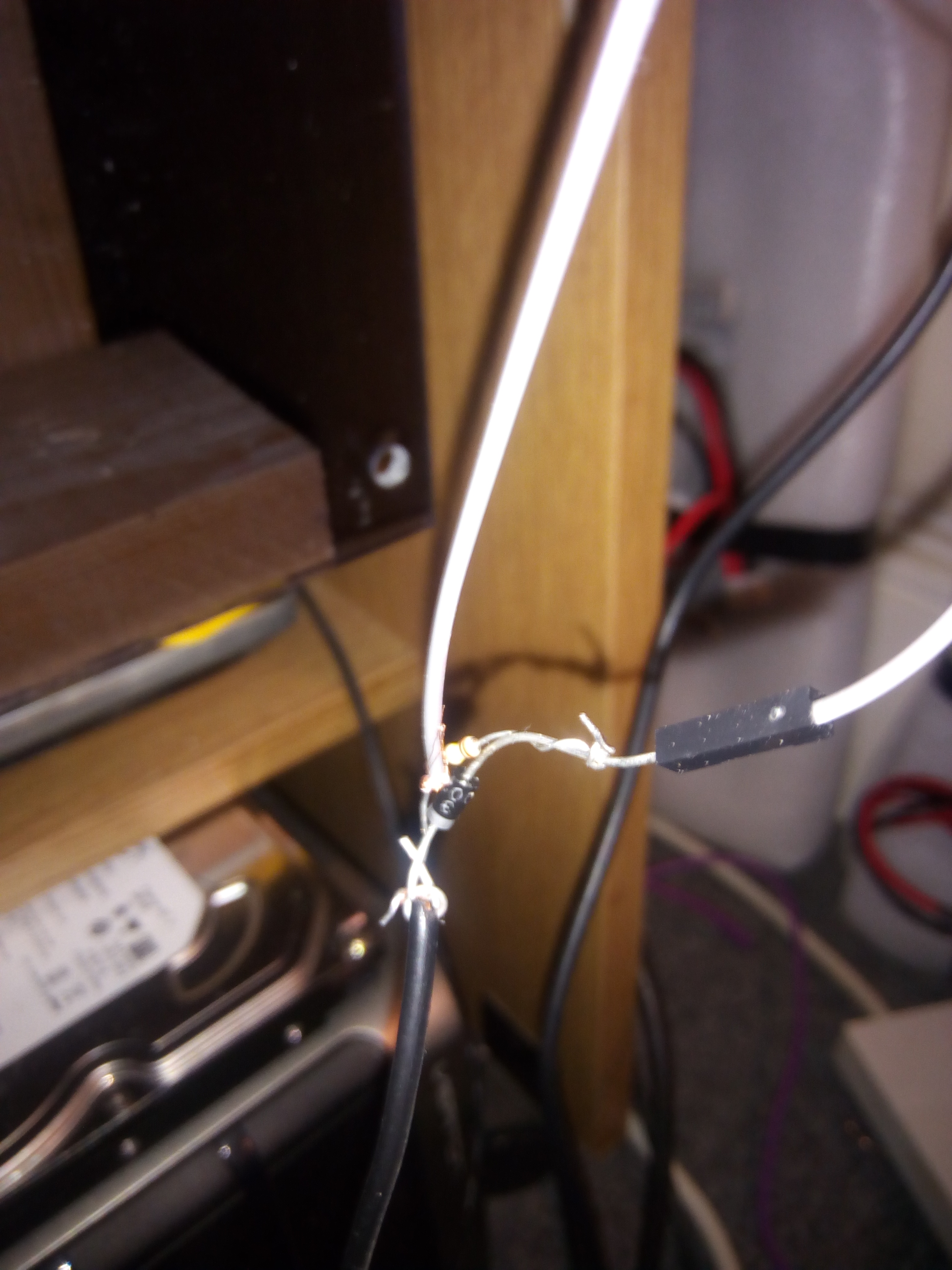

100 k resister and diod line pointing down from power pack  and hook to pin pb3 where hub 75  is and pd13 on top of i/0 pins
